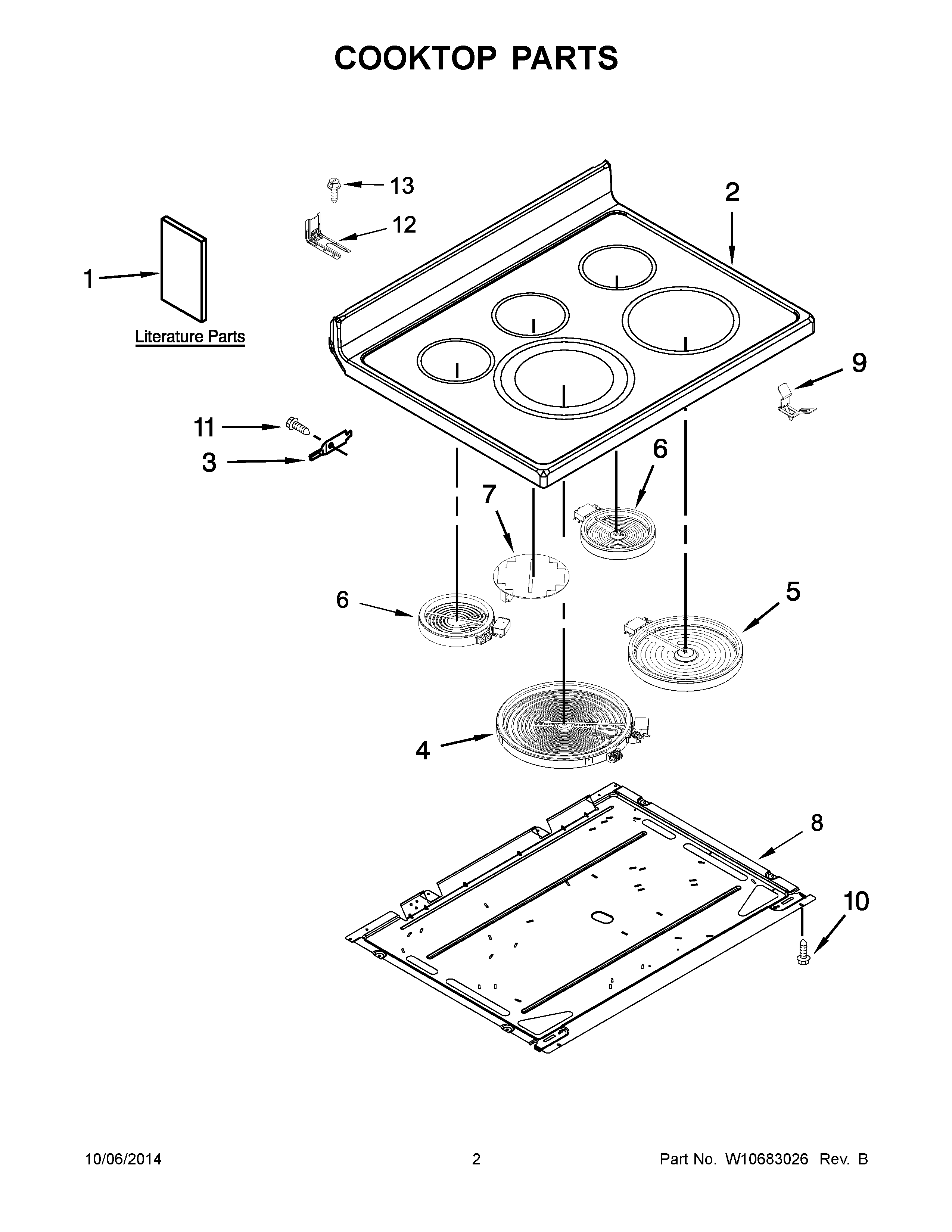

MER8700DE0 02 – COOKTOP PARTS

MER8700DE0 02 – COOKTOP PARTS

Written by

in

MER8700DE0 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10349654
NIHARNESS, SENSOR
NIHARNESS, WIRE (CERAN)
NIMAY W10349708
NIMAY W10349714
1AMAY W10667165
1DTECH SHEET, ENGLISH
1MAY W10403811
1CTIPS, SAFE COOKING (ENGLISH)
1BMAY W10400064
2AMAY W10655905
2MAY W10655902
3HINGE, COOKTOP
4ELEMENT (3000/1400W) (LEFT FRONT)
5ELEMENT (3200W) (RIGHT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT (CR), WARM ZONE
8PAN, RADIANT ELEMENT
9SPRING, ELEMENT
10SCREW
11SCREW
12BRACKET, ANTI-TIP
13SCREW, ANTI-TIP KIT
