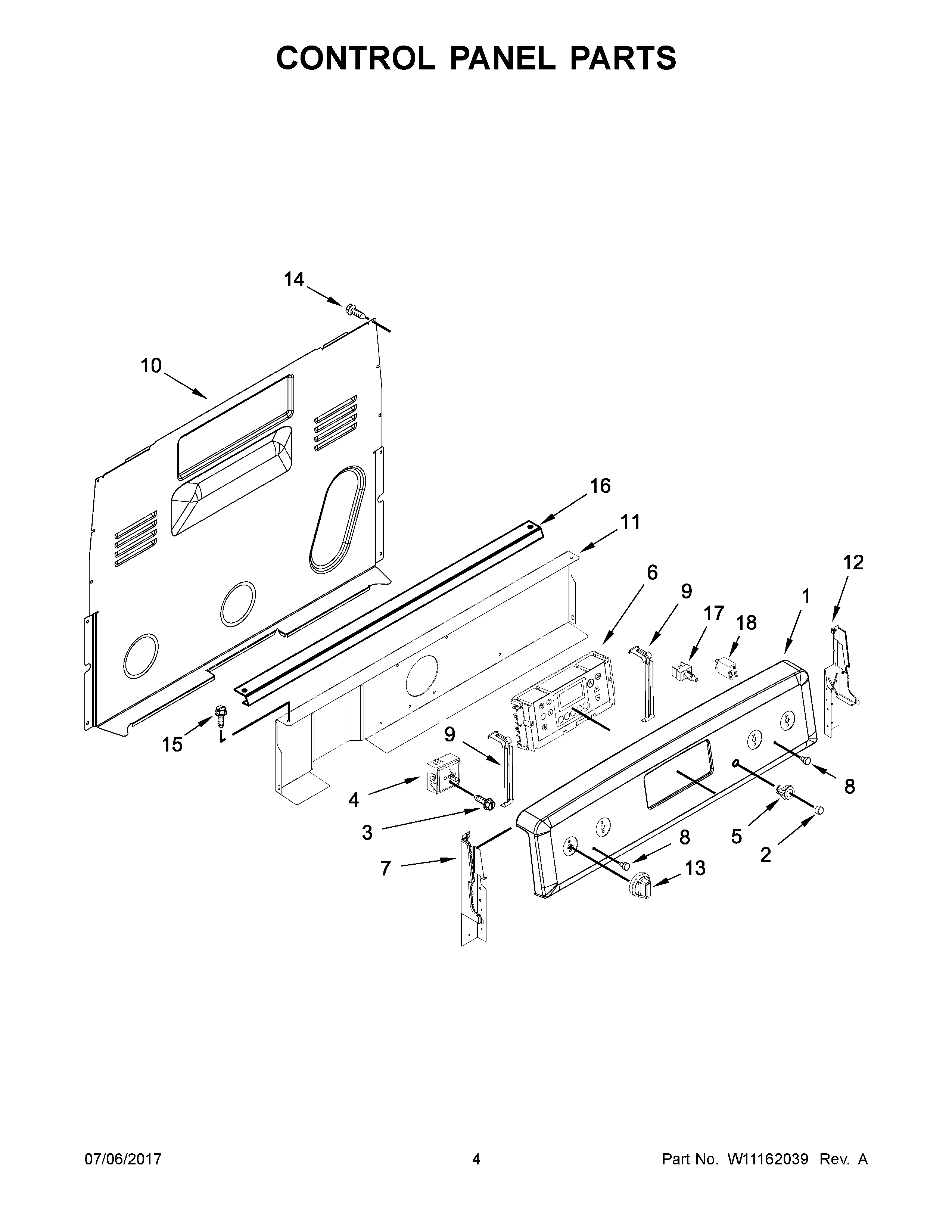

MER8700DS2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10655844
2BUTTON, KEEP WARM (STAINLESS)
3SCREW
4BSWITCH, INFINITE (RIGHT FRONT)
4ASWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5BEZEL, KEEP WARM (STAINLESS)
6CONTROL (STAINLESS)
7ENDCAP (BLACK (LEFT))
8MAY 3196068
9BRACKET, CONTROL
10COVER, UPPER REAR
11SHIELD, HEAT
12ENDCAP (BLACK (RIGHT))
13MAY W10666901
14SCREW
15MAY W10362924
16BRACKET, CONSOLE MOUNTING
17SWITCH, WARM CONSOLE MOUNTING
18MAY 8523265
