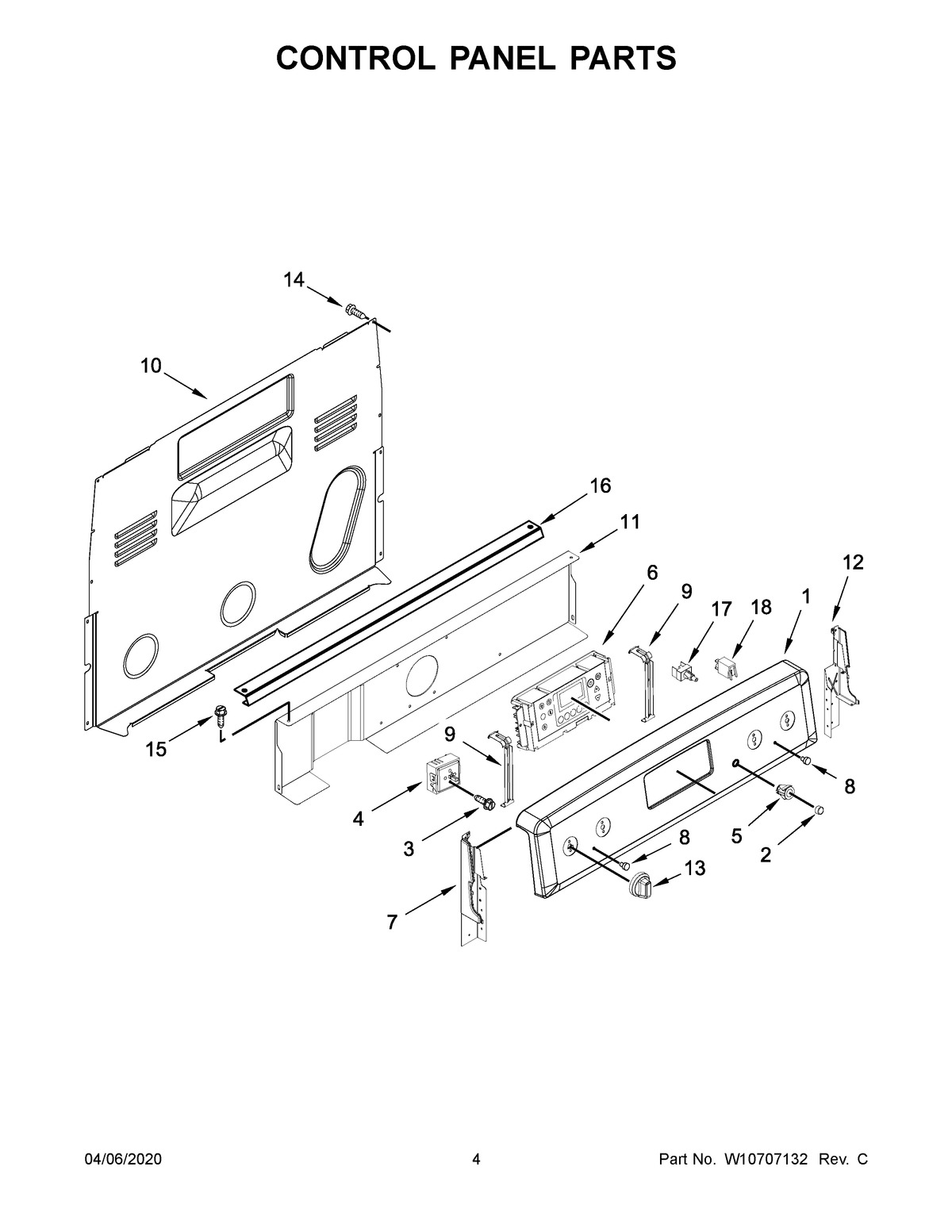

MER8700DW1 03 – CONTROL PANEL PARTSadmin2025-04-26T08:54:46+00:00MER8700DW1 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1B | MAY W10655844 |
| 1A | MAY W10655842 |
| 1 | MAY W10655839 |
| 2B | BUTTON, KEEP WARM (STAINLESS) |
| 2A | BUTTON, KEEP WARM (BLACK) |
| 2 | MAY 9757492 |
| 3 | SCREW |
| 4 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 4B | SWITCH, INFINITE (RIGHT FRONT) |
| 4A | SWITCH, INFINITE (DUAL) (LEFT FRONT) |
| 5B | BEZEL, KEEP WARM (STAINLESS) |
| 5 | BEZEL, KEEP WARM (WHITE) |
| 5A | MAY W10217758 |
| 6B | CONTROL (STAINLESS) |
| 6A | MAY W10655843 |
| 6 | MAY W10655840 |
| 7A | ENDCAP (BLACK (LEFT)) |
| 7 | ENDCAP (WHITE (LEFT)) |
| 8 | MAY 3196068 |
| 9 | BRACKET, CONTROL |
| 10 | COVER, UPPER REAR |
| 11 | SHIELD, HEAT |
| 12A | ENDCAP (BLACK (RIGHT)) |
| 12 | ENDCAP (WHITE (RIGHT)) |
| 13 | MAY W10666901 |
| 14 | SCREW |
| 15 | MAY W10362924 |
| 16 | BRACKET, CONSOLE MOUNTING |
| 17 | SWITCH, WARM CONSOLE MOUNTING |
| 18 | MAY 8523265 |
