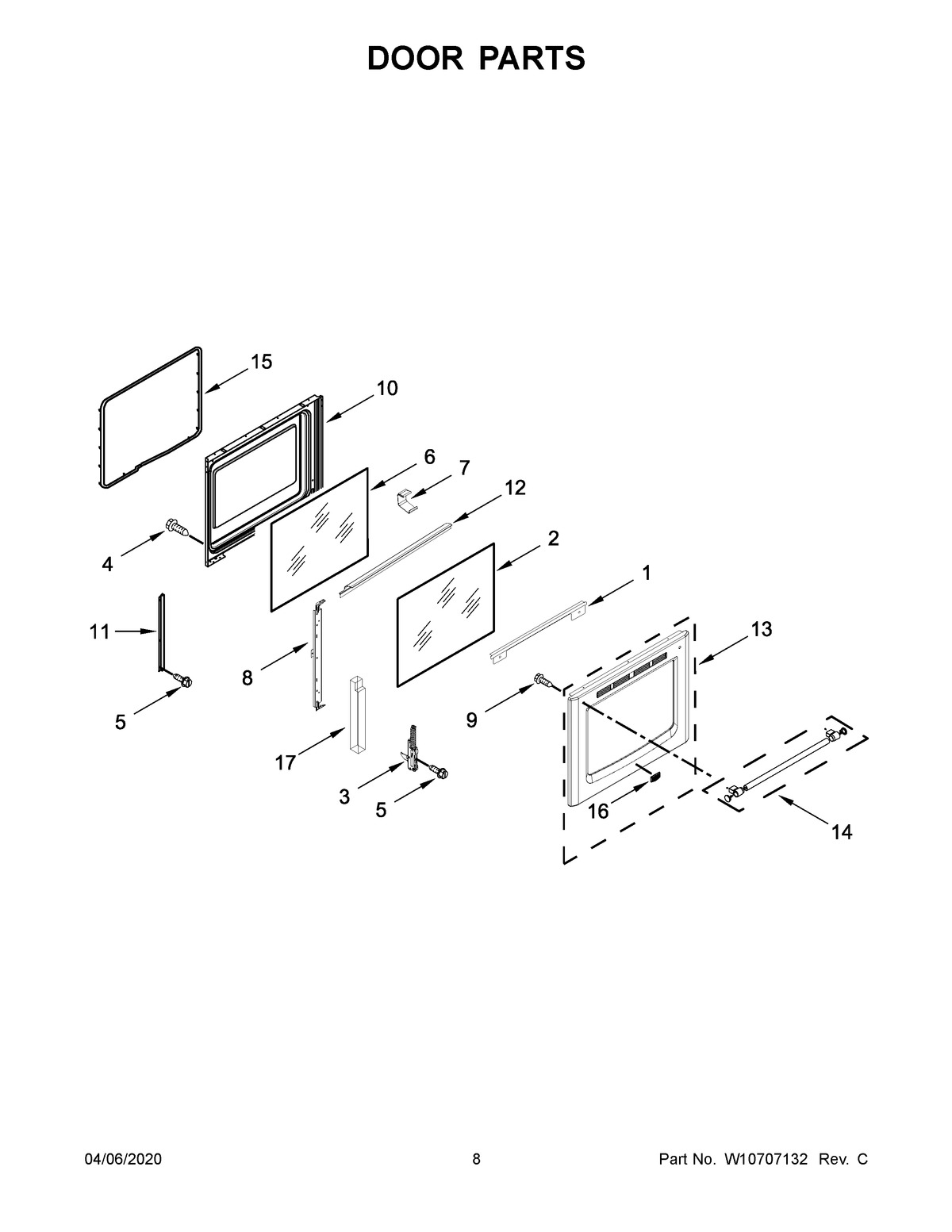

MER8700DW1 05 – DOOR PARTS

MER8700DW1 05 – DOOR PARTS

Written by

in

MER8700DW1 05 – DOOR PARTS

Products

PositionProduct
1MAY W10330075
1ATRIM, VENT (BLACK)
2MAY W10615599
3HINGE, DOOR (ACTIVE)
4SCREW
5MAY W10362924
6GLASS, INNER
7CLIP, PANEL
8MAY W10294851
9SCREW
10LINING, DOOR
11MAY W10294852
12MAY W10294853
13BMAY W10655838
13AMAY W10655834
13MAY W10655831
14HANDLE, DOOR (WHITE)
14BMAY W10665831
14AHANDLE, DOOR (BLACK)
15MAY W10162385
16MAY W10636267
17INSULATION, DOOR
