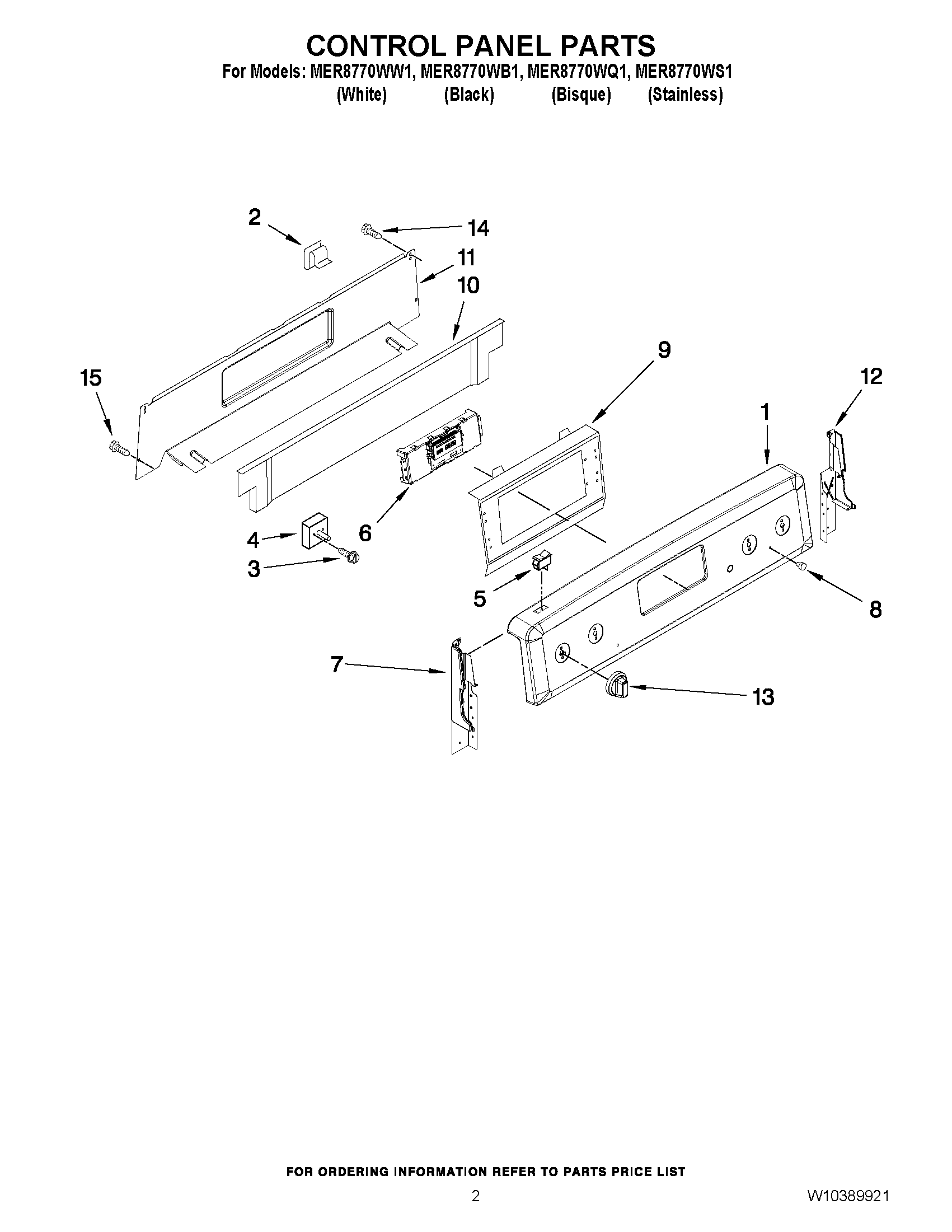

MER8770WQ1 02 – CONTROL PANEL PARTSadmin2025-04-26T08:55:21+00:00MER8770WQ1 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10225489 |
| 1 | MAY W10225488 |
| 1 | MAY W10225487 |
| 1 | MAY W10225486 |
| 2 | MAY 8273564 |
| 3 | SCREW |
| 4 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 4 | Switch, Infinite (LF,RF) |
| 5 | SWITCH, ROCKER (BLACK) |
| 5 | SWITCH, ROCKER (WHITE) |
| 5 | SWITCH, ROCKER (BISQUE) |
| 6 | WHITE |
| 6 | STAINLESS |
| 6 | MAY W10236260 |
| 6 | BLACK |
| 7 | MAY W10163967 |
| 7 | MAY W10171416 |
| 7 | MAY W10163969 |
| 8 | MAY 3196068 |
| 9 | BRACKET, MOUNTING, EOC |
| 10 | MAY 3604F381-19 |
| 11 | MAY W10243038 |
| 12 | MAY W10171417 |
| 12 | MAY W10163970 |
| 12 | MAY W10163968 |
| 13 | KNOB, INFINITE (WHITE) |
| 13 | MAY W10211372 |
| 13 | KNOB, INFINITE (BISCUIT) |
| 13 | MAY W10291145 |
| 14 | SCREW |
| 14 | Screw (Black) |
| 15 | SCREW |
