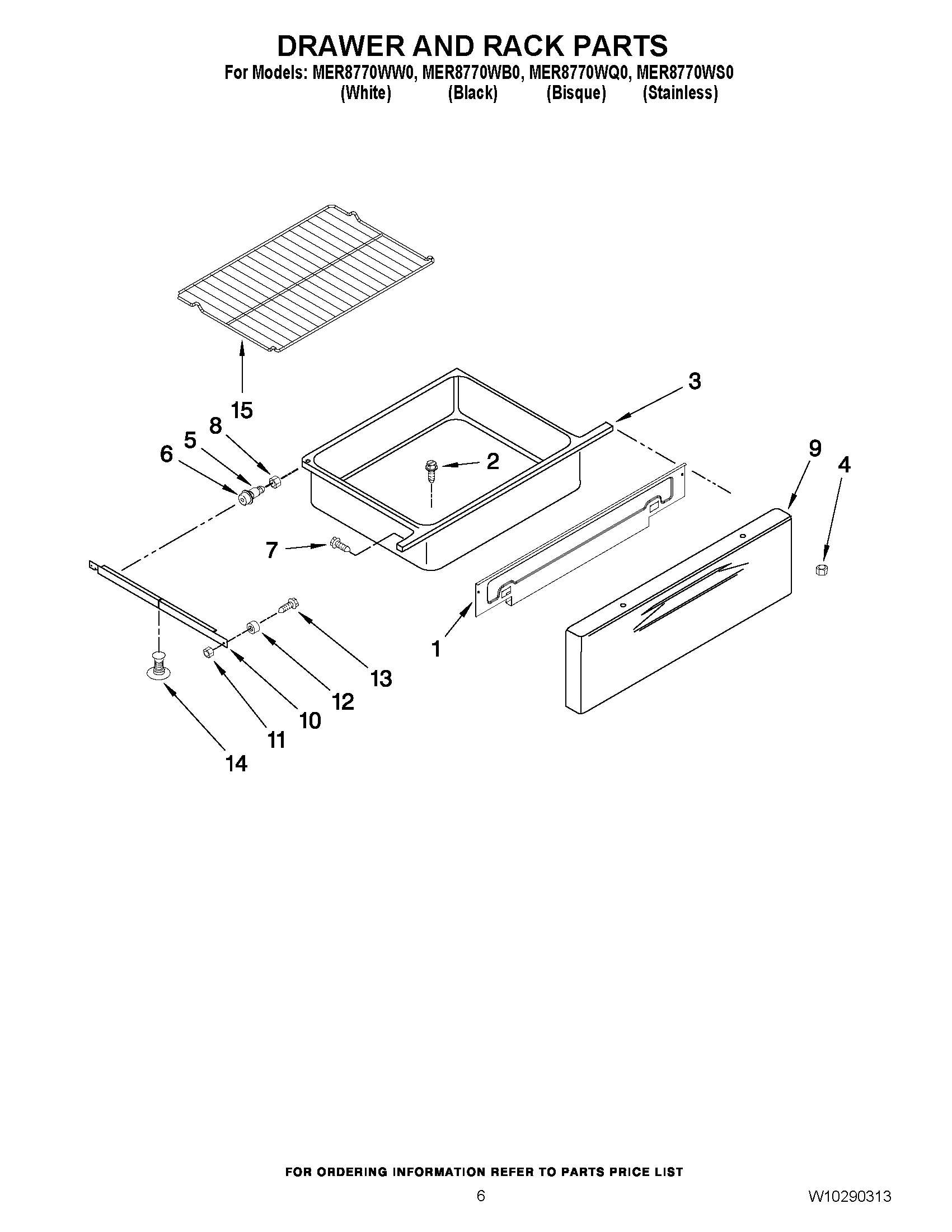

MER8770WS0 05 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	PLATE, PANEL MTG.
3	MAY 3405F037-80
5	MAY 8010P130-60
7	SCREW
8	WP488130 Whirlpool Air Conditioner Nut
9	MAY W10181698
9	MAY W10181696
9	MAY W10181695
9	MAY W10181697
10	MAY 3406P034-51
11	MAY 7103P190-60
12	MAY W10272883
13	MAY 7118P032-60
14	MAY 8038P037-60
15	MAY W10179196
