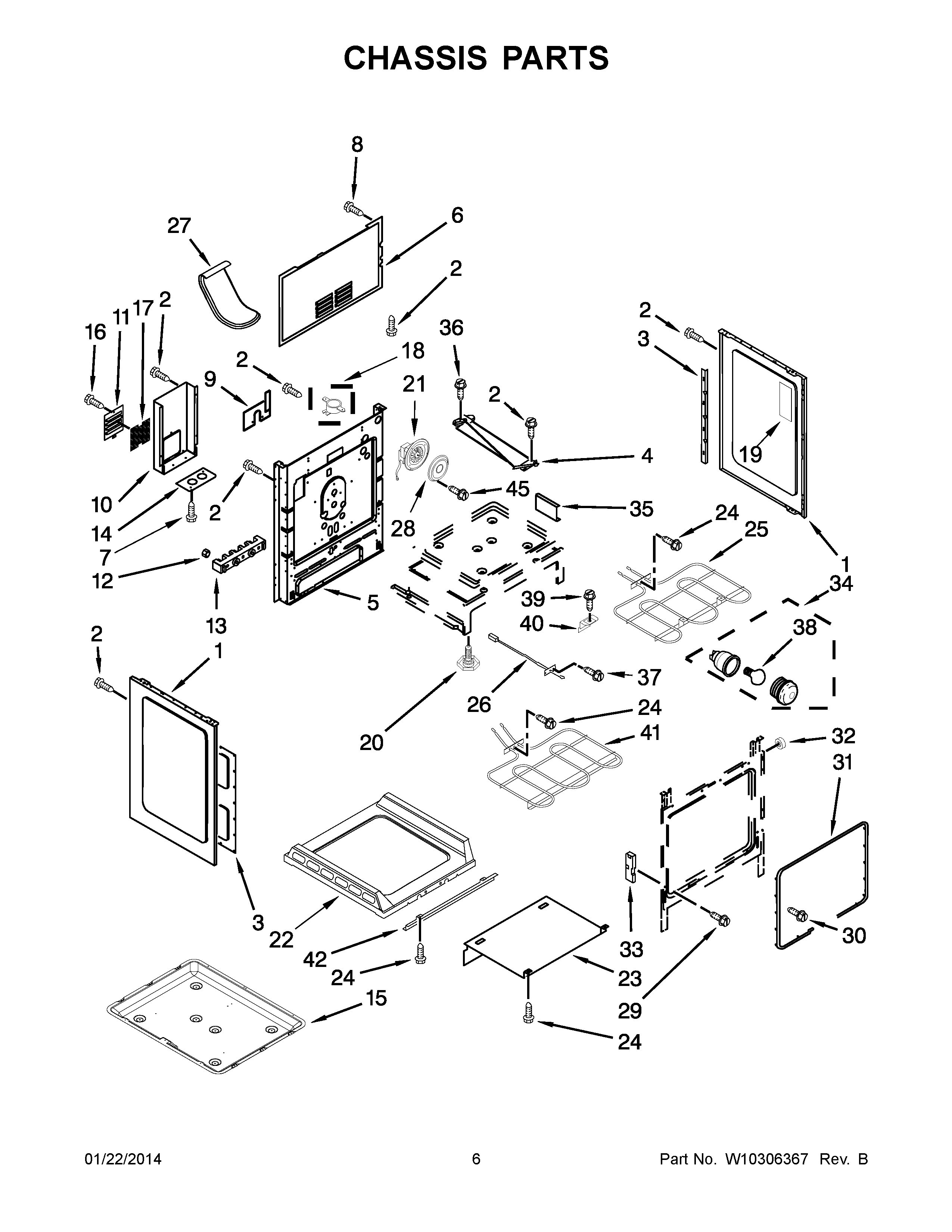

MER8772WS1 04 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P362-60
NI	MAY 7002P361-60
NI	MAY 4820F014-59
NI	MAY W10182346
NI	MAY W10243056
NI	MAY 3804F316-51
1	MAY 2618F172-58
1	MAY 2618F172-69
2	SCREW
3	Retainer, Side
4	MAY W10275451
5	COVER, MAIN WIRE
6	MAIN BACK
7	MAY 7101P336-60
9	MAY 7003P145-60
10	MAY W10243045
11	MAY 4005P704-51
12	WP488130 Whirlpool Air Conditioner Nut
13	WPW10245259 Whirlpool Terminal Block
14	MAY 3605P146-51
15	PAN, BAKE
16	MAY 3196160
17	MAY W10260573
18	Switch, Thermal
19	INSULATION
20	Leg, Leveling
21	Fan Assy, Convect
22	MAY W10211367
23	MAY 3604F371-51
24	SCREW
25	MAY 7406P493-60
26	SENSOR, OVEN
27	MAY 8026P081-60
28	MAY 3605F305-19
29	SCREW (10-24X5/16-NI)
31	MAY W10162385
32	MAY 8010P148-60
33	MAY 7106P125-60
34	MAY 3196701
35	MAY 3801P798-51
36	SCREW
37	SCREW
38	BULB, OVEN LIGHT
39	MAY 7101P618-60
40	MAY 3801P822-45
41	MAY 7406P451-60
42	MAY 3807P680-45
