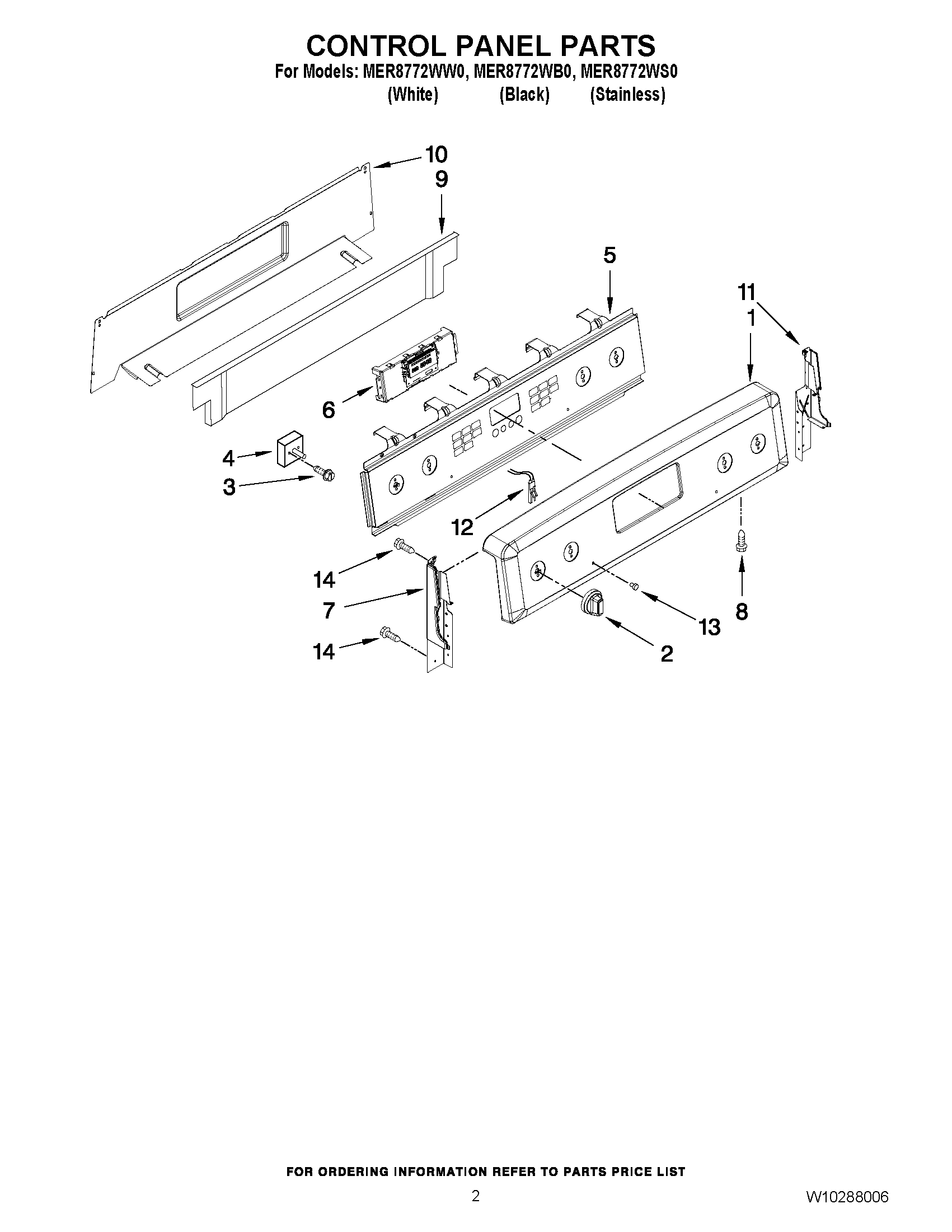

MER8772WW0 02 – CONTROL PANEL PARTS

MER8772WW0 02 – CONTROL PANEL PARTS

Written by

in

MER8772WW0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10097280
1MAY W10097270
1CONSOLE (STAINLESS)
2MAY W10291145
2KNOB, INFINITE (WHITE)
2MAY W10211372
3SCREW
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINTE (TRIPLE (RF))
4Switch, Infinite (LF,RF)
5OVERLAY, ACTIVE (STAINLESS)
5OVERLAY, ACTIVE (BLACK)
5OVERLAY, ACTIVE (WHITE)
6MAY W10157248
7MAY W10163967
7MAY W10163969
8Screw, 8-18 x 3/8
9MAY 3604F381-19
10MAY W10243038
11MAY W10163970
11MAY W10163968
12MAY 8523265
13MAY 3196068
14SCREW
