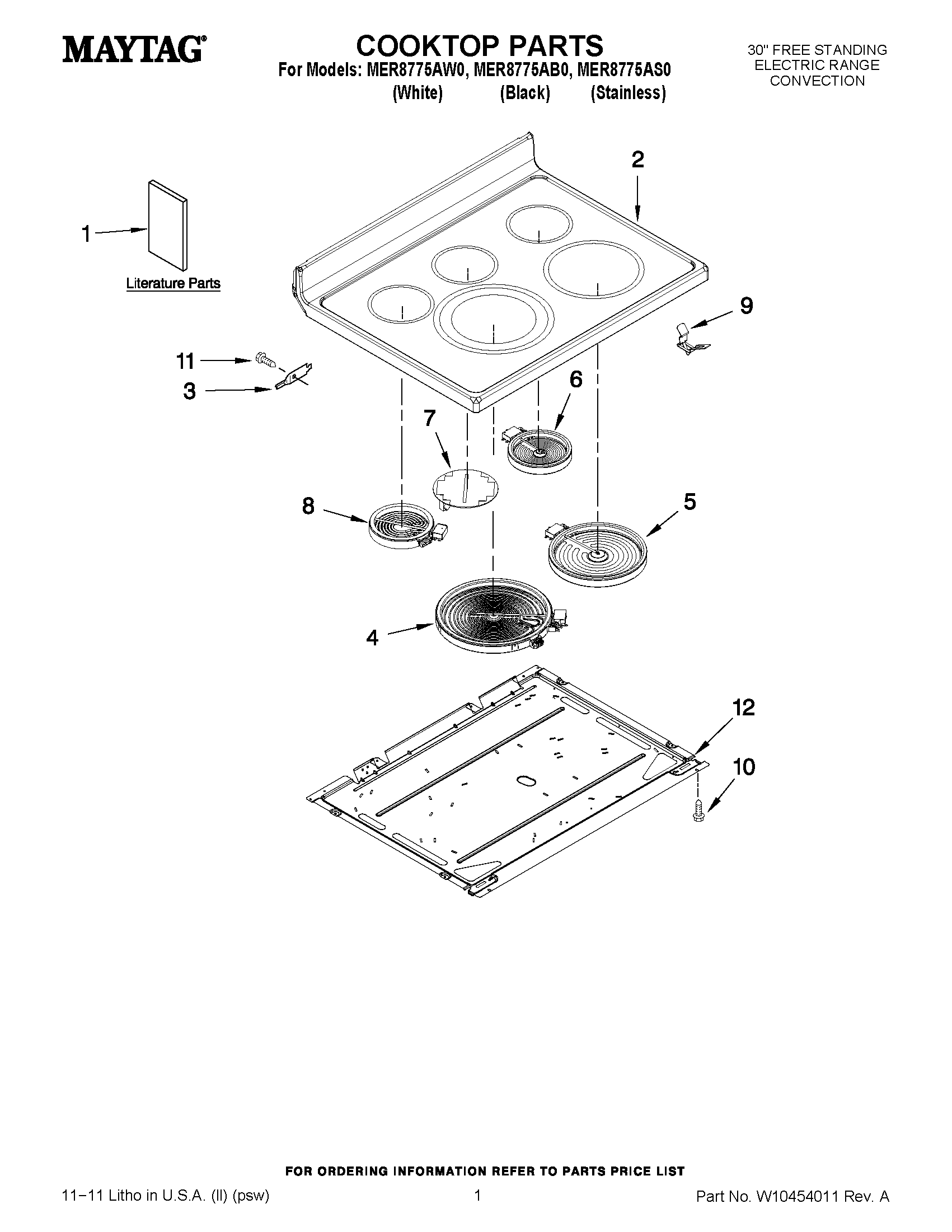

MER8775AB0 01 – COOKTOP PARTS

Products

Position	Product
1	WIRING DIAGRAM (ENGLISH)
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10403811
1	MAY W10392921
1	MAY W10400064
2	MAY W10380670
2	MAY W10380671
3	HINGE, COOKTOP
4	ELEMENT (LF) 3000/2200/1100W
5	ELEMENT (3200W) (RIGHT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (CR), WARM ZONE
8	ELEMENT (1300W) (LEFT REAR)
9	SPRING, ELEMENT
10	SCREW
11	SCREW
12	MAY W10106409
