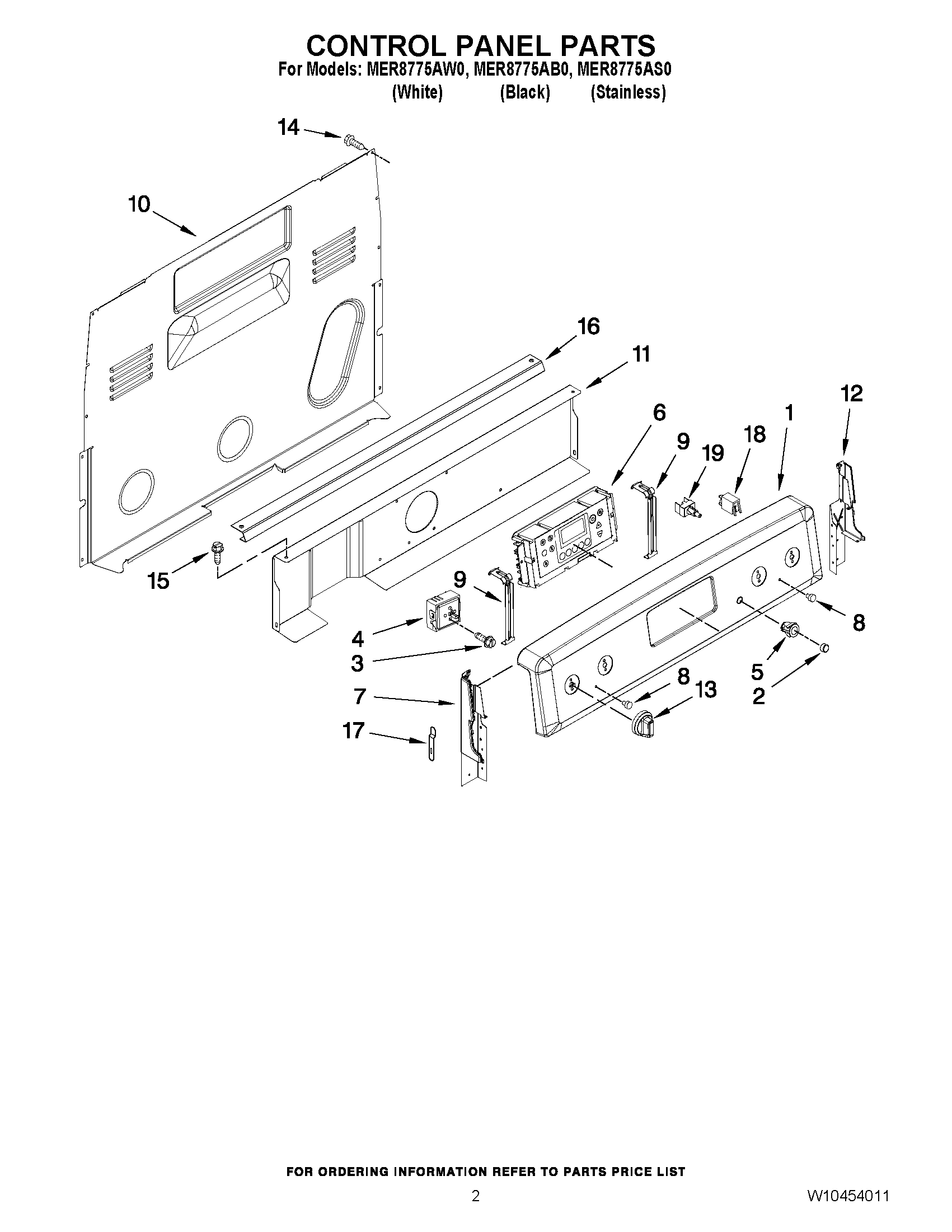

MER8775AB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10333927
1MAY W10333926
1MAY W10333925
2BUTTON, KEEP WARM (STAINLESS)
2BUTTON, KEEP WARM (BLACK)
2MAY 9757492
3SCREW
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (LEFT FRONT)
4SWITCH, INFINITE (RIGHT FRONT)
5BEZEL, KEEP WARM (STAINLESS)
5BEZEL, KEEP WARM (WHITE)
5MAY W10217758
6MAY W10348719
6MAY W10348717
6MAY W10348718
7ENDCAP (BLACK (LEFT))
7ENDCAP (WHITE (LEFT))
8MAY 3196068
9MAY W10324410
10COVER, UPPER REAR
11SHIELD, HEAT
12ENDCAP (BLACK (RIGHT))
12ENDCAP (WHITE (RIGHT))
13MAY W10370186
13MAY W10370185
13MAY W10370184
14SCREW
15MAY W10362924
16Bracket, Console
17CLIP, SPRING
18MAY 8523265
19SWITCH, WARM CONSOLE MOUNTING
