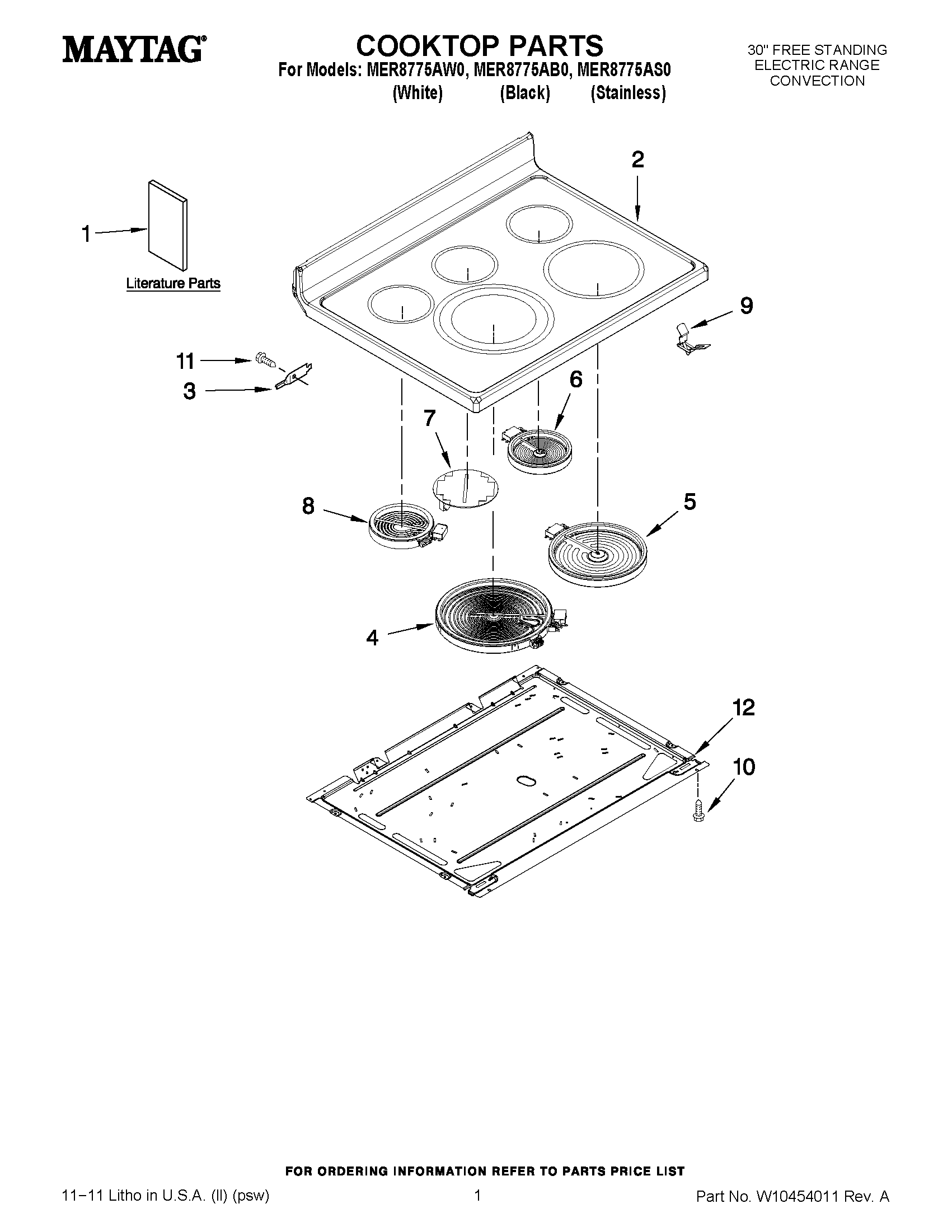

MER8775AW0 01 – COOKTOP PARTS

Products

PositionProduct
1WIRING DIAGRAM (ENGLISH)
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10403811
1MAY W10392921
1MAY W10400064
2MAY W10380670
2MAY W10380671
3HINGE, COOKTOP
4ELEMENT (LF) 3000/2200/1100W
5ELEMENT (3200W) (RIGHT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT (CR), WARM ZONE
8ELEMENT (1300W) (LEFT REAR)
9SPRING, ELEMENT
10SCREW
11SCREW
12MAY W10106409
