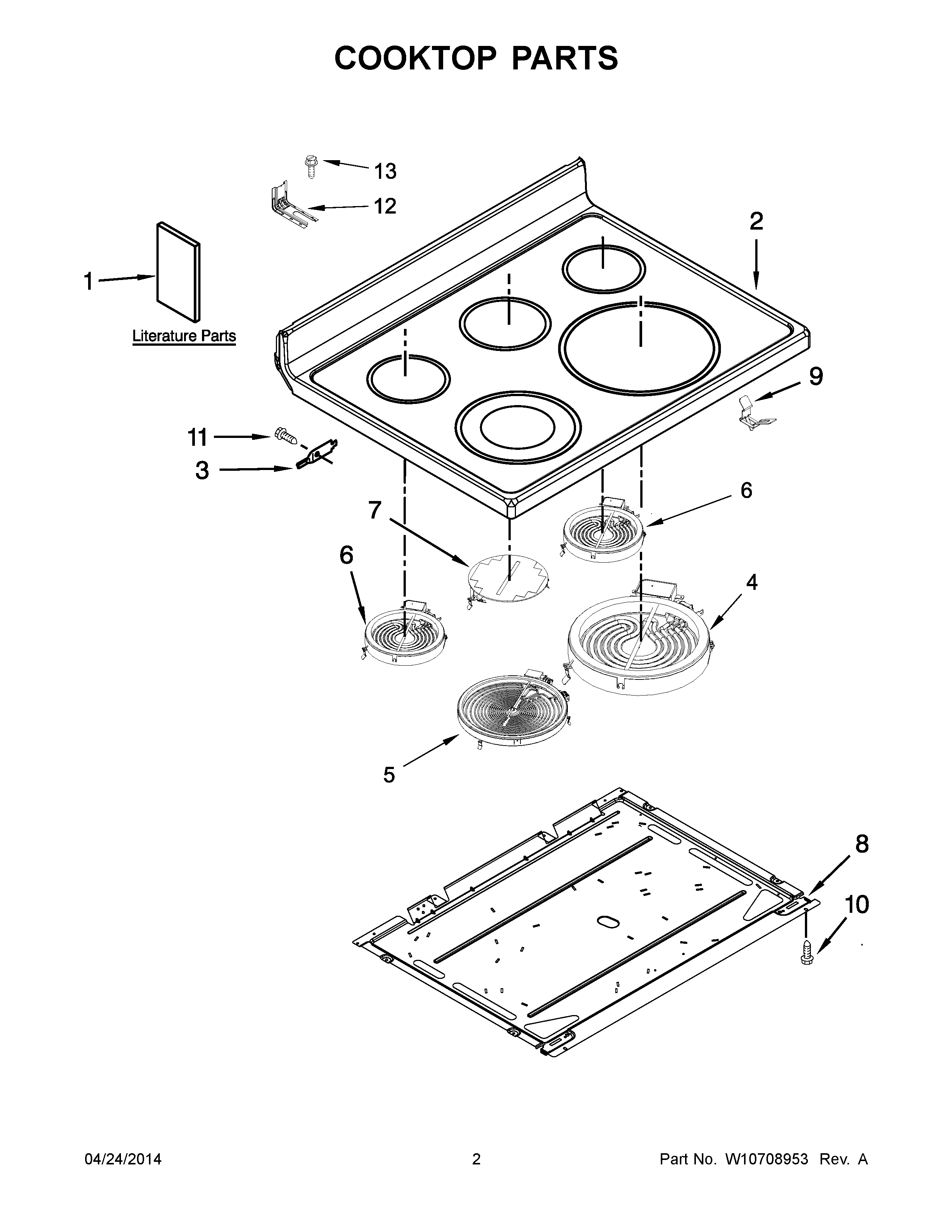

MER8800DE1 02 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	TECH SHEET, (ENGLISH)
1	MAY W10403811
1	USE AND CARE GUIDE
1	MAY W10400064
2	COOKTOP (WHITE)
2	COOKTOP (BLACK)
3	HINGE, COOKTOP
4	ELEMENT (3200W) (RIGHT FRONT)
5	ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT, WARM ZONE (CENTER REAR)
8	MAY W10106409
9	SPRING, ELEMENT
10	SCREW
11	SCREW
12	BRACKET, ANTI-TIP
13	SCREW, ANTI-TIP KIT
