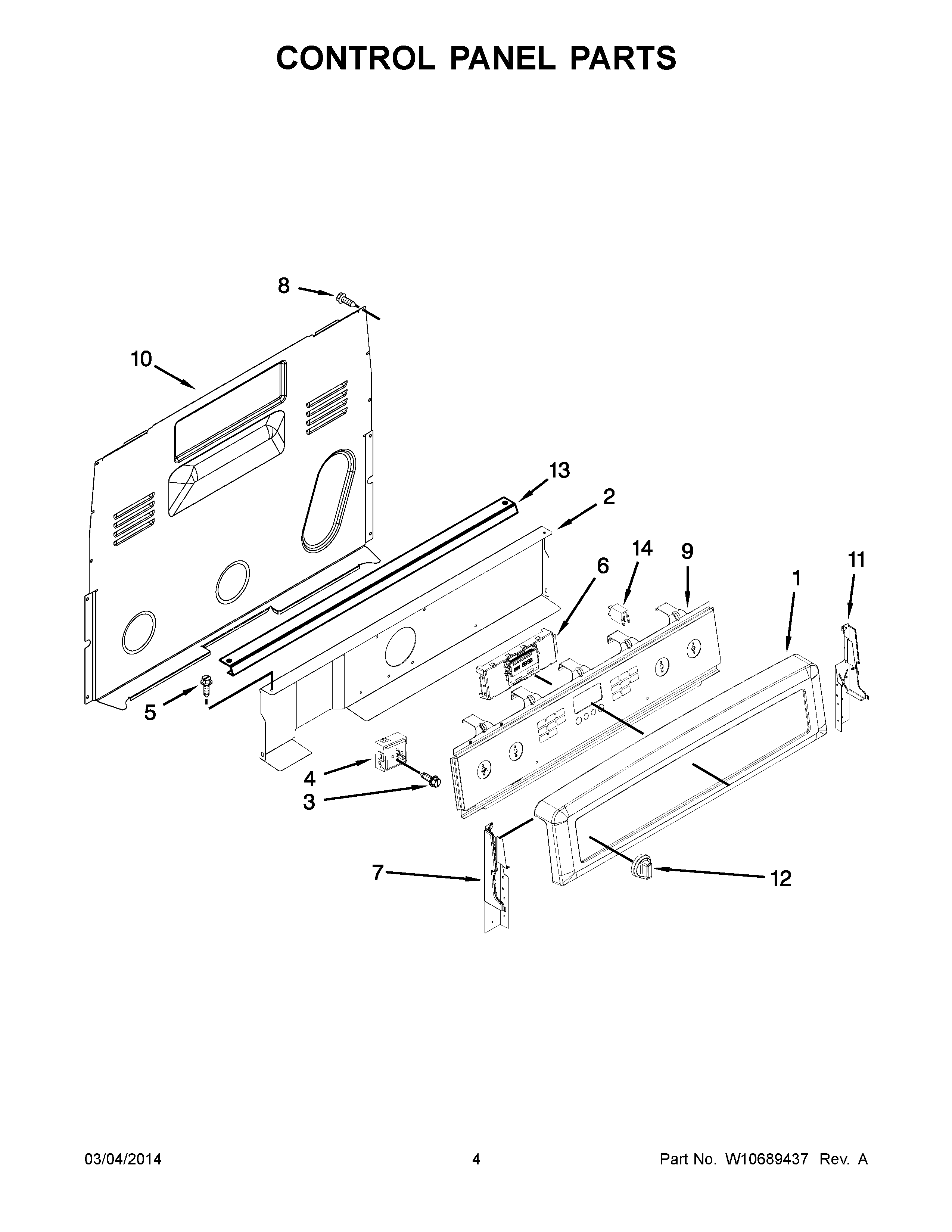

MER8800DH0 03 – CONTROL PANEL PARTS

MER8800DH0 03 – CONTROL PANEL PARTS

Written by

in

MER8800DH0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10097280
1MAY W10097270
1CONSOLE (STAINLESS)
2SHIELD, HEAT
3SCREW
4SWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5MAY W10362924
6CONTROL (MRC)
7ENDCAP (BLACK (LEFT))
7ENDCAP (WHITE (LEFT))
8SCREW
9MAY W10655849
9MAY W10655851
9MAY W10655846
10COVER, UPPER REAR
11ENDCAP (BLACK (RIGHT))
11ENDCAP (WHITE (RIGHT))
12MAY W10666901
13BRACKET, CONSOLE MOUNTING
14MAY 8523265
