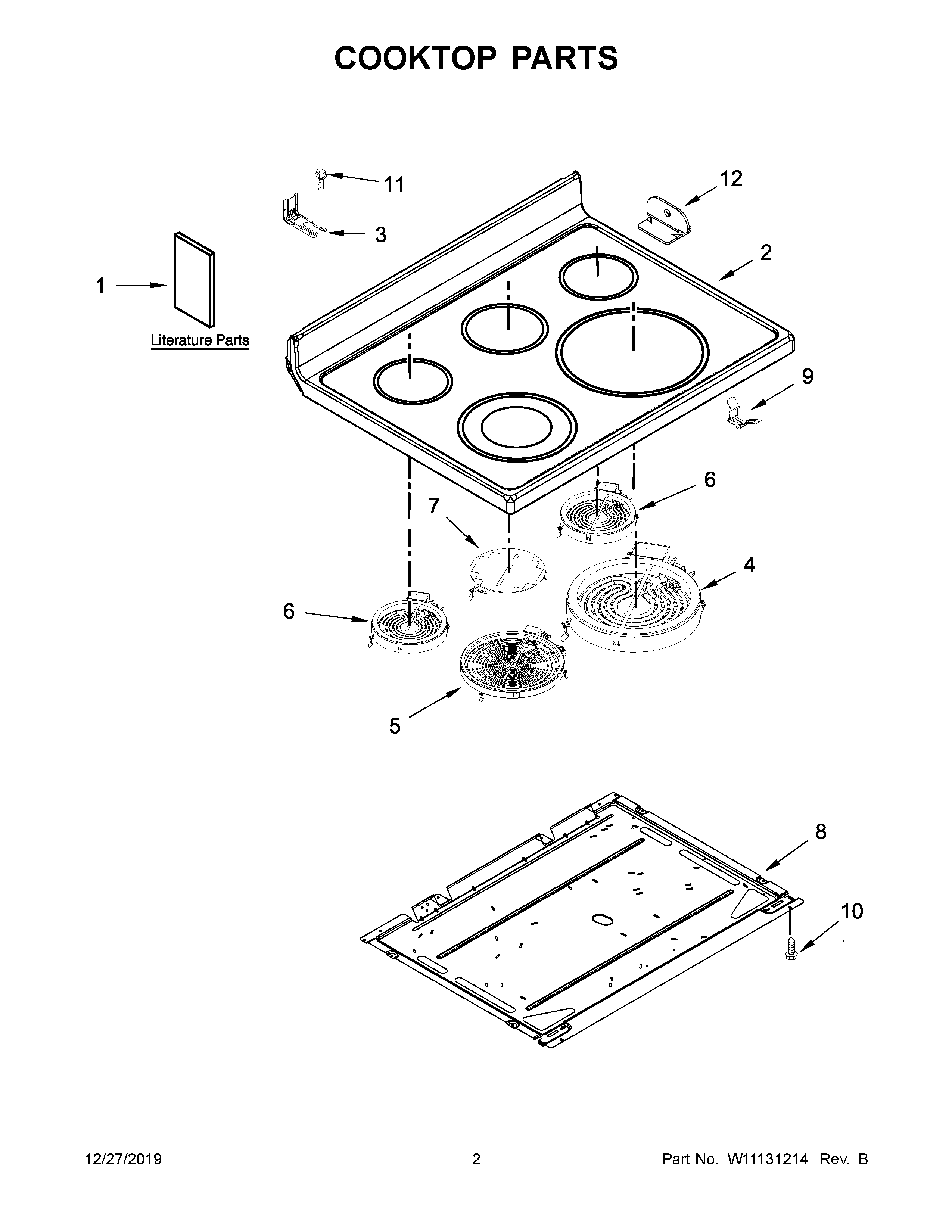

MER8800FB1 02 – COOKTOP PARTS

Products

Position	Product
NI	KIT, BARE WIRE ADAPTER BLOCK
NI	HARNESS, COOKTOP (RIGHT)
NI	HARNESS, MAIN
NI	HARNESS, SENSOR
NI	WIRING HARNESS PARTS, HARNESS, WIRE COOKTOP LEFT
NI	HARNESS, WARM ZONE
NI	LINER (NOT A SERVICEABLE PART)
1	USE AND CARE GUIDE
1B	INSTRUCTIONS, INSTALLATION
1A	TECH SHEET, (ENGLISH)
1C	MAY W10400064
2A	COOKTOP (WHITE)
2	COOKTOP (BLACK)
3	ANTI-TIP BRACKET
4	ELEMENT (3200W) (RIGHT FRONT)
5	ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT, WARM ZONE (CENTER)
8	PAN, RADIANT ELEMENT
9	SPRING, ELEMENT
10	SCREW
11	SCREW, ANTI-TIP KIT
12	BRACKET, COOKTOP (LEFT)
12A	BRACKET, COOKTOP (RIGHT)
