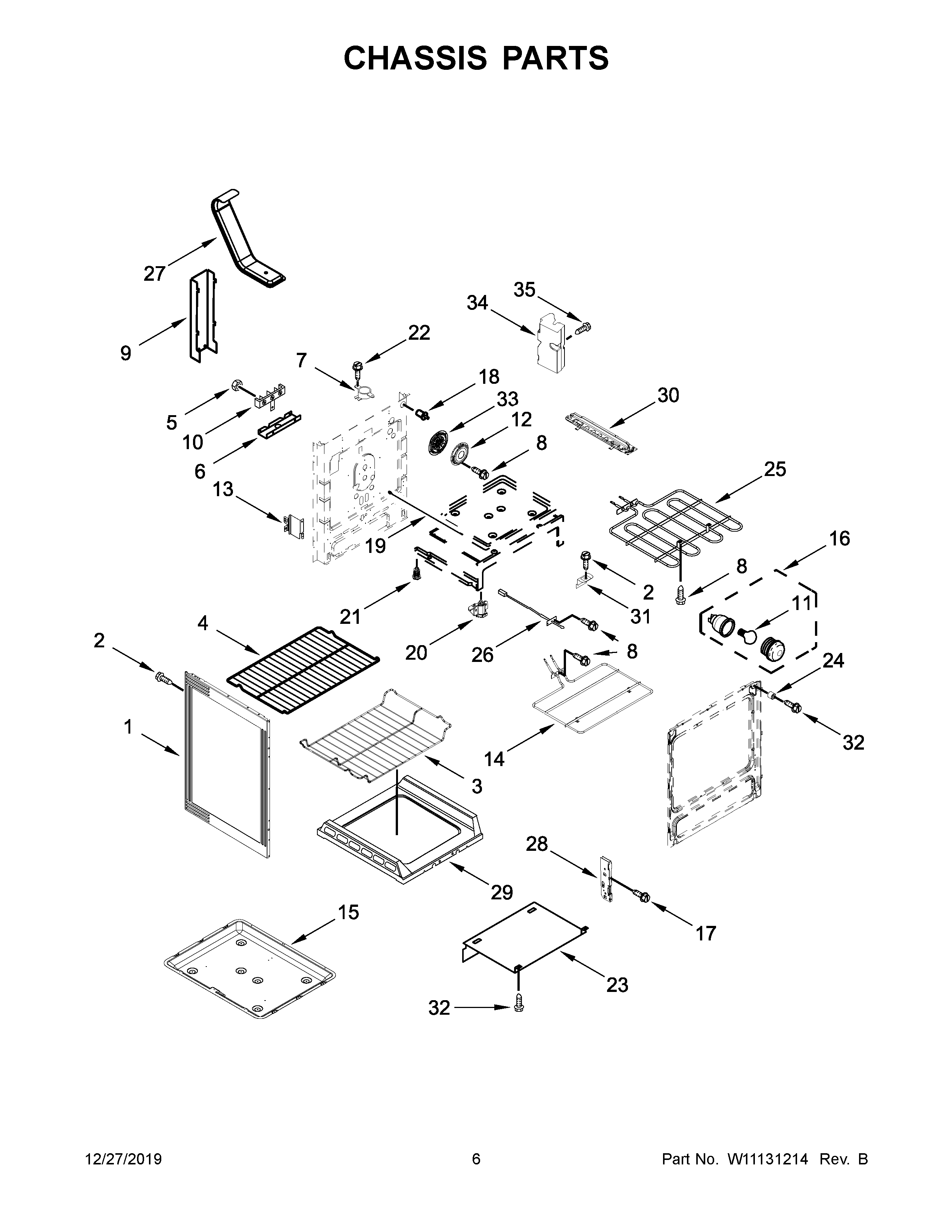

MER8800FB1 04 – CHASSIS PARTSadmin2025-04-26T08:55:00+00:00MER8800FB1 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10225524 |
| NI | INSULATION, BOTTOM |
| NI | MAY W10194393 |
| NI | STRAP, INSULATION |
| 1 | PANEL, SIDE (BLACK) |
| 1A | PANEL, SIDE (WHITE) |
| 2 | SCREW |
| 3 | ACCESSORIES, RACK, OVEN (GULL-WING) |
| 4 | MAY W10531060 |
| 5 | NUT |
| 6 | BRACKET, SERVICE |
| 7 | FUSE, THERMAL |
| 8 | MAY W10362924 |
| 9 | COVER, TERMINAL BLOCK |
| 10 | BLOCK, TERMINAL |
| 11 | BULB, HALOGEN 40 WATTS |
| 12 | MAY W10346154 |
| 13 | BRACKET, SUPPORT |
| 14 | ELEMENT, BAKE |
| 15 | MAY W10346147 |
| 16 | MAY W11175594 |
| 17 | MAY W10031780 |
| 18 | SWITCH, DOOR |
| 19 | ROD, REAR DOOR |
| 20 | ASSEMBLY, FRONT FOOT |
| 21 | FOOT, LEVELING |
| 22 | SCREW |
| 23 | SHIELD, HEAT |
| 24 | SPACER, DOOR |
| 25 | MAY W11095929 |
| 26 | MAY W10586204 |
| 27 | TUBE, VENT |
| 28 | RECEIVER, HINGE |
| 29 | BOTTOM, OVEN |
| 30A | ASSEMBLY, BASE RAIL (LEFT) |
| 30 | ASSEMBLY, BASE RAIL (RIGHT) |
| 31 | MAY W10035900 |
| 32 | MAY W10516115 |
| 33 | ASSEMBLY, CONVECTION |
| 34 | COUNTERWEIGHT |
| 35 | SCREW |
