MER8800FB1 05 – DOOR PARTS

MER8800FB1 05 – DOOR PARTS

Written by

in

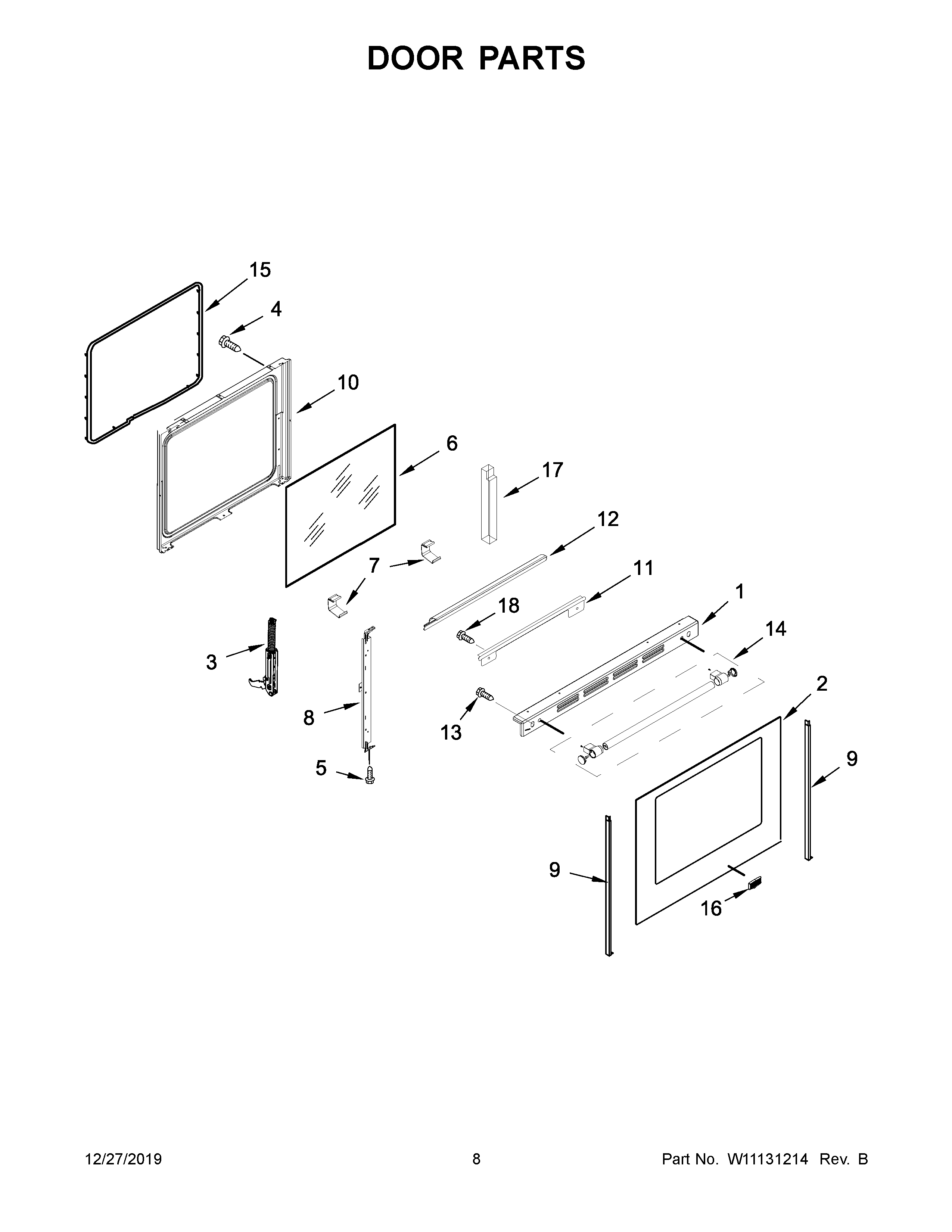

MER8800FB1 05 – DOOR PARTS

Products

Position	Product
1	TRIM, VENT (BLACK)
1A	TRIM, VENT (WHITE)
2	GLASS, OUTER DOOR (BLACK)
2A	GLASS, OUTER DOOR (WHITE)
3	MAY W10440013
4	SCREW
5	MAY W10362924
6	GLASS, INNER
7	CLIP, PANEL
8	MAY W10294851
9A	TRIM, SIDE (WHITE)
9	TRIM, SIDE (BLACK)
10	LINING, DOOR
11A	BRACKET, GLASS (WHITE)
11	BRACKET, GLASS (BLACK)
12	MAY W10294853
13	SCREW
14	HANDLE, OVEN DOOR (BLACK)
14A	HANDLE, OVEN DOOR (WHITE)
15	MAY W10162385
16	BADGE
17	INSULATION, DOOR
18	SCREW
