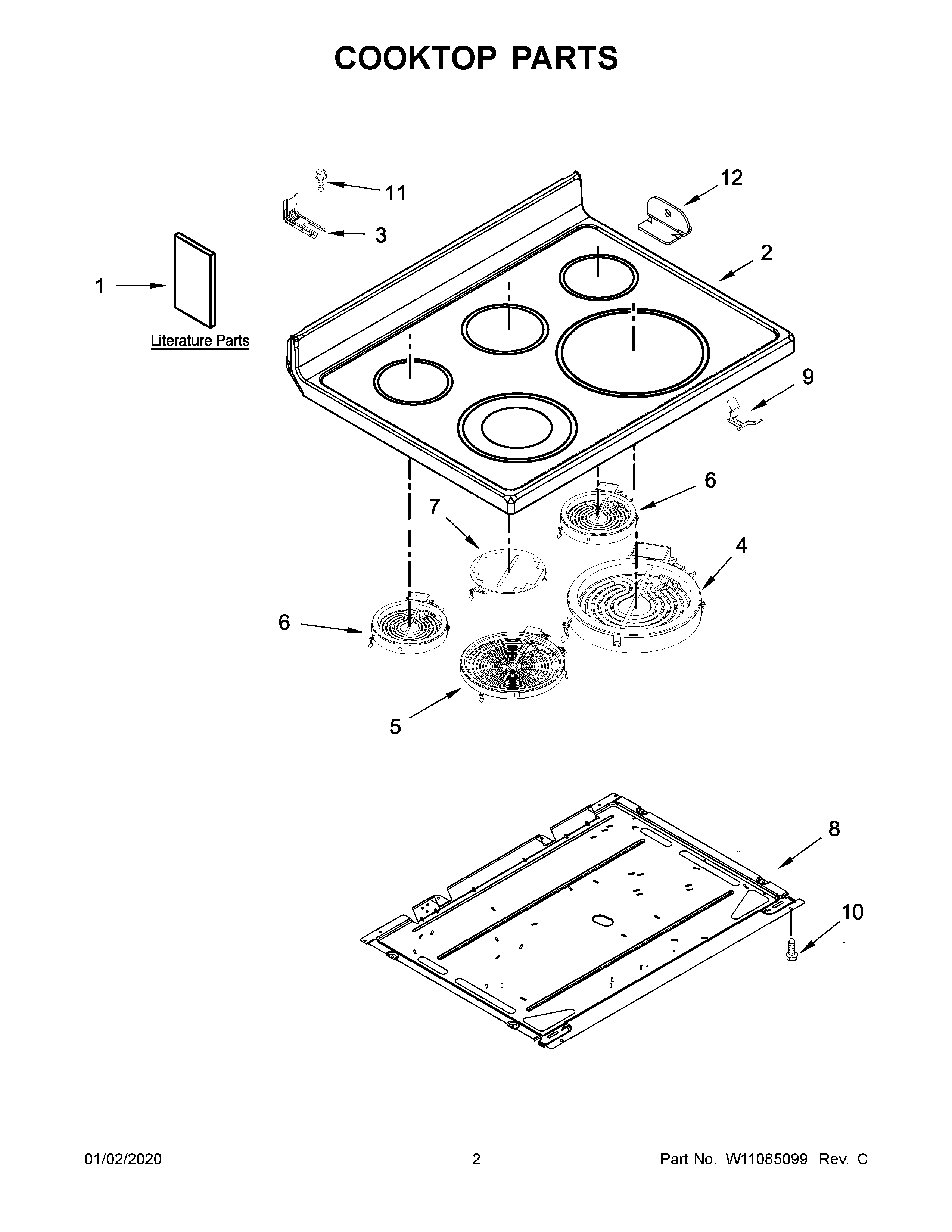

MER8800FW0 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, COOKTOP (RIGHT)
NI	HARNESS, MAIN
NI	HARNESS, SENSOR
NI	WIRING HARNESS PARTS, HARNESS, WIRE COOKTOP LEFT
NI	HARNESS, WARM ZONE
1B	TECH SHEET, (ENGLISH)
1C	MAY W10400064
1	INSTRUCTIONS, INSTALLATION
1A	USE AND CARE GUIDE
2A	COOKTOP (WHITE)
2	COOKTOP (BLACK)
3	ANTI-TIP BRACKET
4	ELEMENT (3200W) (RIGHT FRONT)
5	ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT, WARM ZONE (CENTER)
8	PAN, RADIANT ELEMENT
9	SPRING, ELEMENT
10	SCREW
11	SCREW, ANTI-TIP KIT
12	BRACKET, COOKTOP (LEFT)
12A	BRACKET, COOKTOP (RIGHT)
