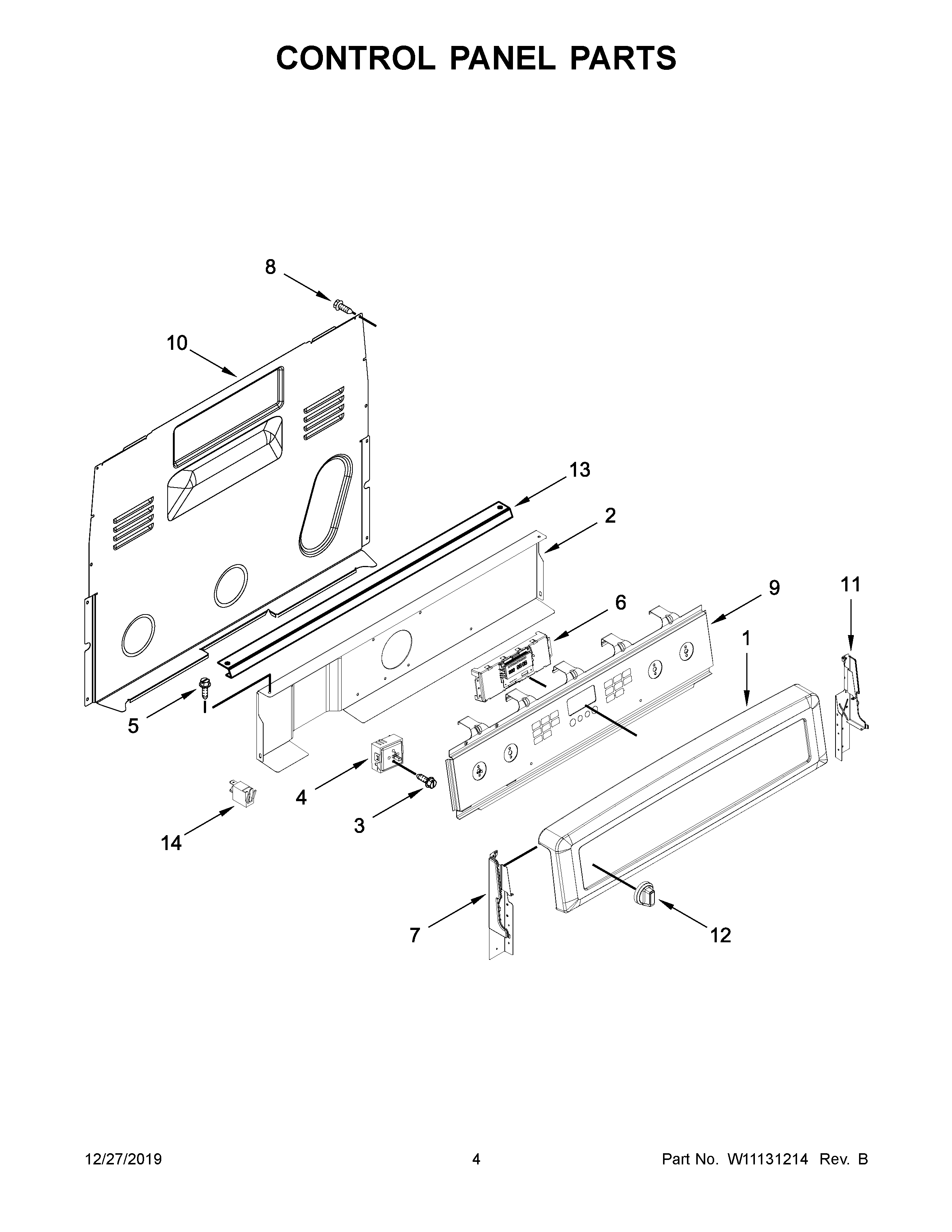

MER8800FW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE (BLACK)
1A	CONSOLE (WHITE)
2	SHIELD, HEAT
3	SCREW
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4B	SWITCH, INFINITE (RIGHT FRONT)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	MAY W10362924
6	CONTROL (MRC)
7A	ENDCAP (WHITE (LEFT))
7	ENDCAP (BLACK (LEFT))
8	SCREW
9A	OVERLAY, ACTIVE (WHITE)
9	OVERLAY, ACTIVE (BLACK)
10	COVER, UPPER REAR
11	ENDCAP (BLACK (RIGHT))
11A	ENDCAP (WHITE (RIGHT))
12A	KNOB (WHITE)
12	KNOB (BLACK)
13	BRACKET, CONSOLE MOUNTING
14	HOT SURFACE INDICATOR
