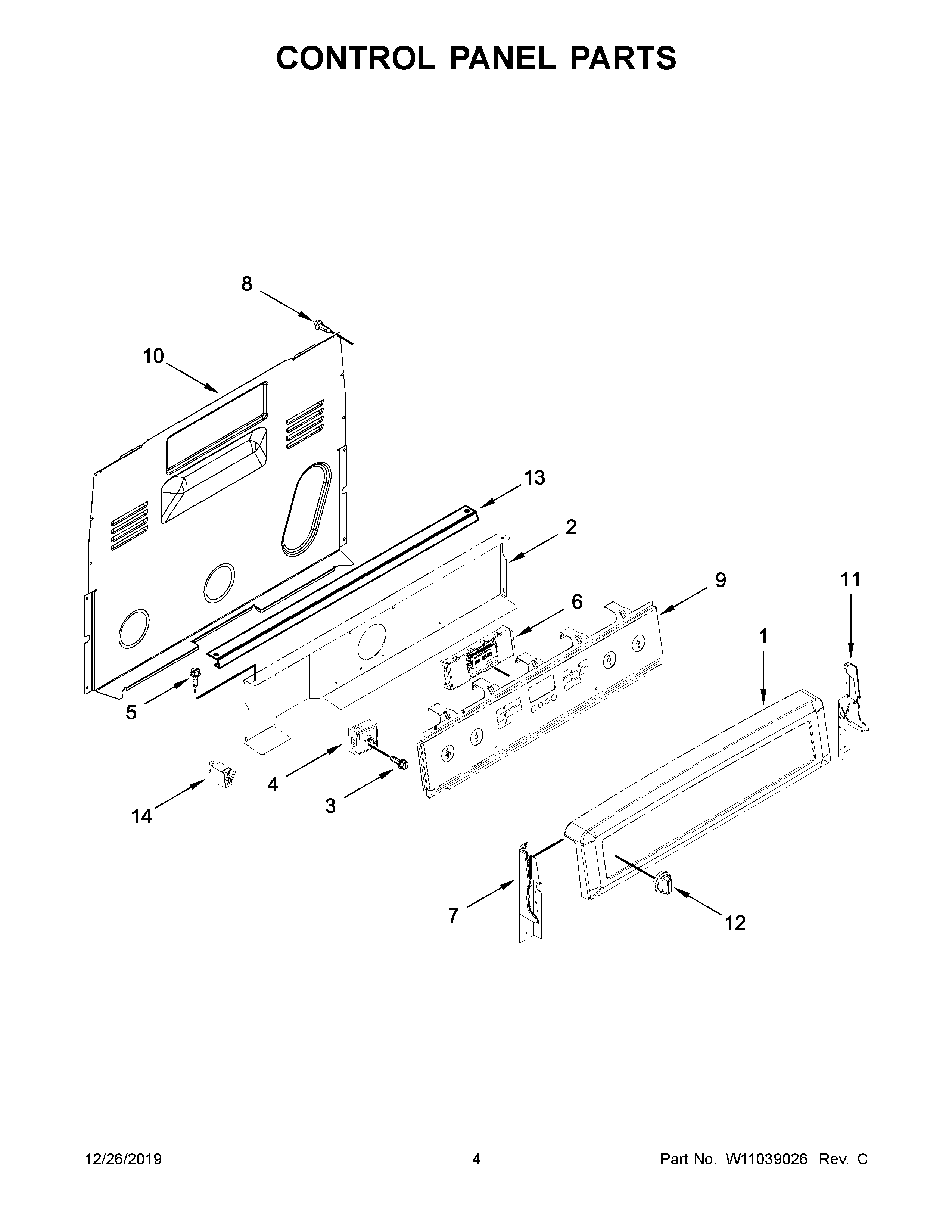

MER8800FZ0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (STAINLESS)
2SHIELD, HEAT
3SCREW
4BSWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5MAY W10362924
6CONTROL (MRC)
7ENDCAP (BLACK (LEFT))
8SCREW
9OVERLAY, ACTIVE (BLACK)
10COVER, UPPER REAR
11ENDCAP (BLACK (RIGHT))
12KNOB (STAINLESS)
13BRACKET, CONSOLE MOUNTING
14HOT SURFACE INDICATOR
