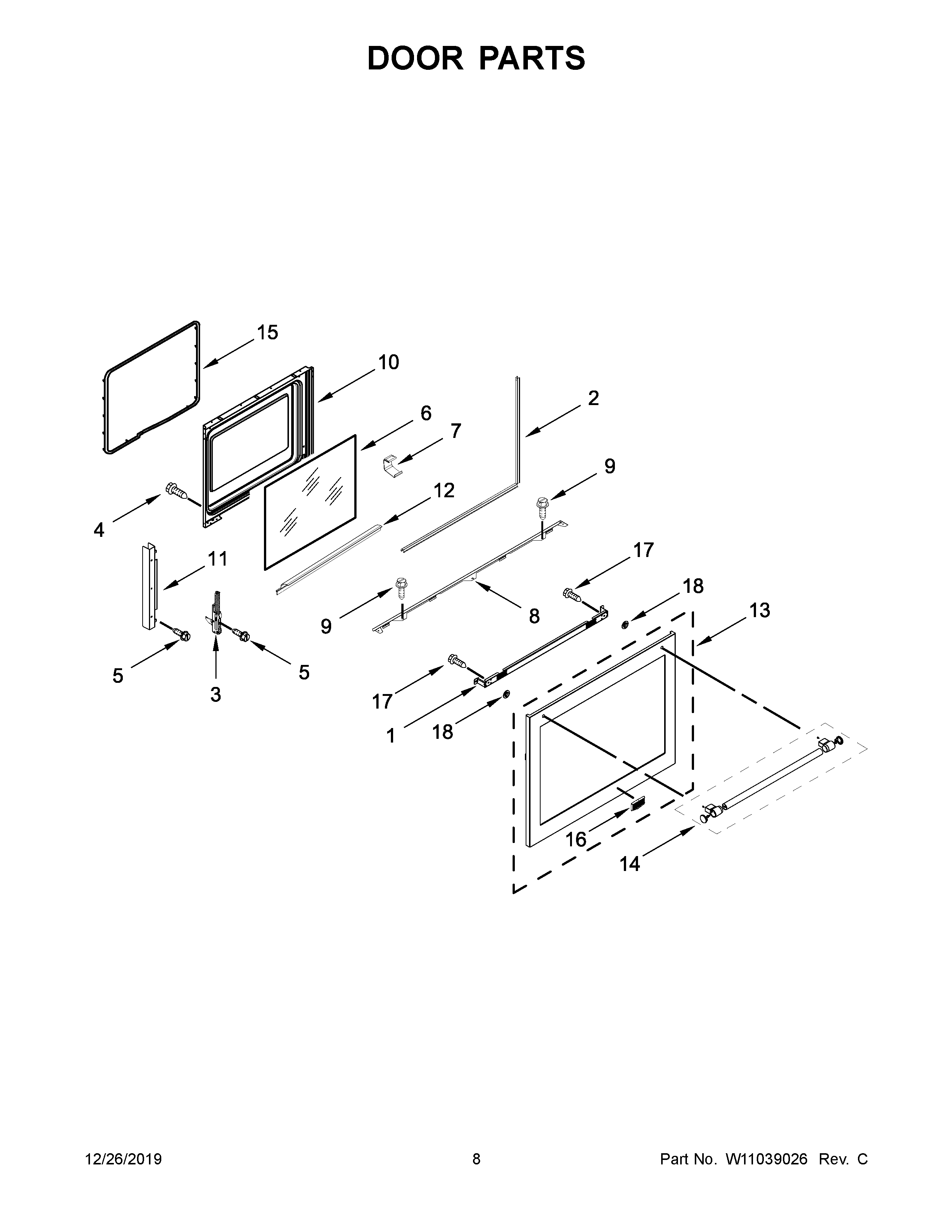

MER8800FZ0 05 – DOOR PARTS

Products

Position	Product
1	BRACKET, GLASS UPPER HANDLE
2	SPACER, GLASS
3	HINGE, DOOR (ACTIVE)
4	SCREW
5	MAY W10362924
6	MAY W11223202
7	CLIP, PANEL
8	RAIL, HORIZONTAL SUPPORT
9	MAY W10241367
10	LINER, DOOR
11	RAIL, VERTICAL SUPPORT
12	SCOOP, DOOR (BLACK)
13	ASSEMBLY, DOOR SKIN (STAINLESS)
14	HANDLE, OVEN DOOR (STAINLESS)
15	MAY W10162385
16	BADGE
17	SCREW
18	WASHER, DOOR
