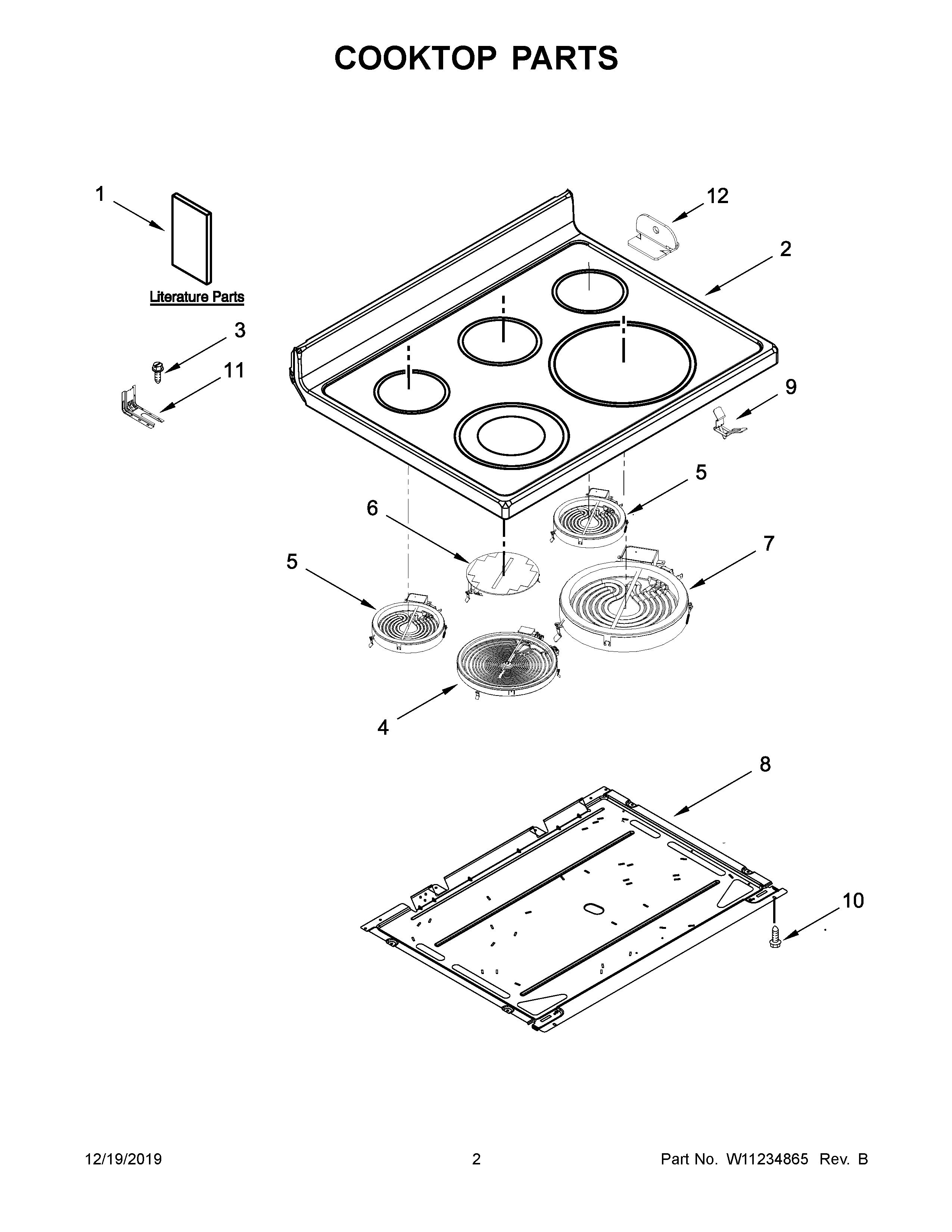

MER8800FZ2 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, WARM ZONE
NI	HARNESS, SENSOR
NI	HARNESS, COOKTOP (RIGHT)
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, MAIN
1B	TECH SHEET, (ENGLISH)
1	INSTRUCTIONS, INSTALLATION
1C	MAY W10400064
1A	USE AND CARE GUIDE
2	COOKTOP (BLACK)
3	SCREW, ANTI-TIP KIT
4	ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
5	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
6	ELEMENT, WARM ZONE (CENTER)
7	ELEMENT (3200W) (RIGHT FRONT)
8	PAN, RADIANT ELEMENT
9	SPRING, ELEMENT
10	SCREW
11	ANTI-TIP BRACKET
12A	BRACKET, COOKTOP (RIGHT)
12	BRACKET, COOKTOP (LEFT)
