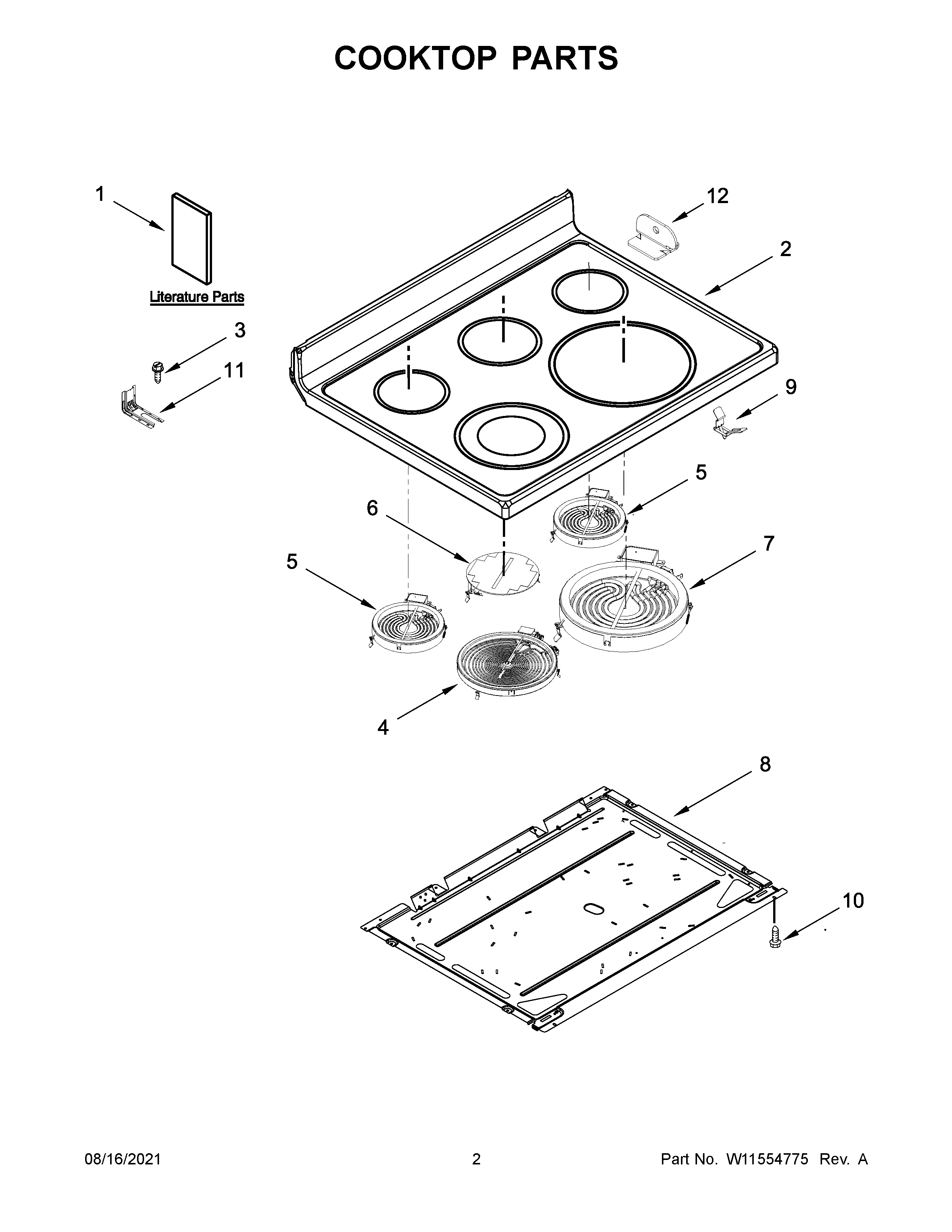

MER8800FZ3 02 – COOKTOP PARTS

MER8800FZ3 02 – COOKTOP PARTS

Written by

in

MER8800FZ3 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11134596 Whirlpool Wire Harness
NIW11212183 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
NIW11454299 Whirlpool Wire Harness
1BQUICK START GUIDE
1ATECH SHEET, (ENGLISH)
1USE AND CARE GUIDE
2W10691698 Whirlpool Cooktop
3SCREW, ANTI-TIP KIT
4WPW10535150 Whirlpool Surface Element
5ELMNT-SURF
6W11041453 Whirlpool Surface Element
7WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8PAN
9WPW10225448 Whirlpool Spring Assembly
10WP355214 Whirlpool Screw
11W11447673 Whirlpool Range Tip Anchor
12AW10607642 Whirlpool Clip
12W10607641 Whirlpool Clip
