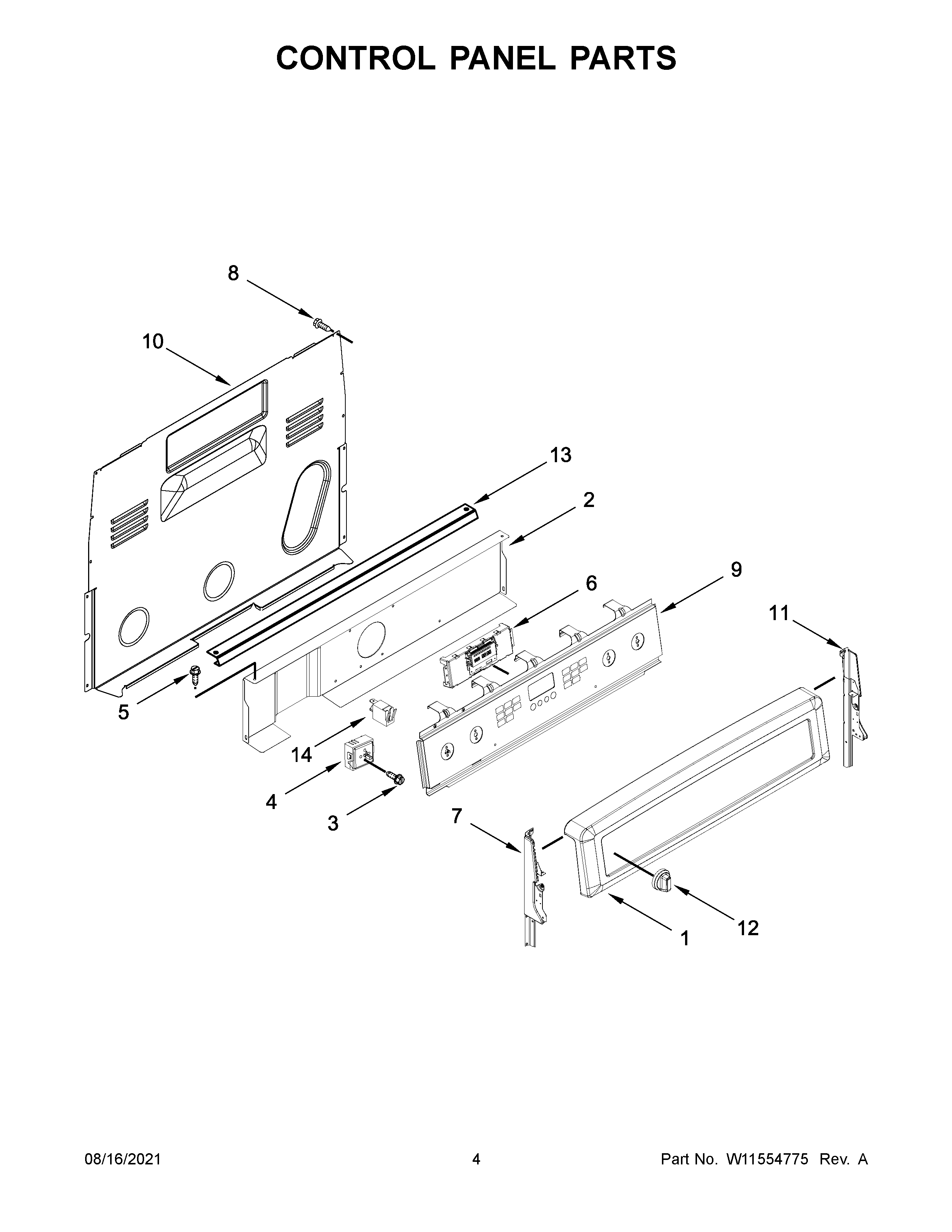

MER8800FZ3 03 – CONTROL PANEL PARTS

MER8800FZ3 03 – CONTROL PANEL PARTS

Written by

in

MER8800FZ3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11164063 Whirlpool Control Panel
2W10134247 Whirlpool Heat Shield
3WP3400882 Whirlpool Screw
4AW10911303 Whirlpool Infinite Switch
4SWITCH-INF
4BW10917724 Whirlpool Infinite Switch
5SCREW
6WPW10340323-includeCORE Whirlpool WPW10340323 Washer Electronic Control Board + Core
7W11219664 Whirlpool Endcap Panel
8W11245710 Whirlpool Refrigerator Screw
9W10884363 Whirlpool Overlay Active
10WP8272473 Whirlpool Rear Cover
11W11219665 Whirlpool Panel Endcap
12W11084052 Whirlpool Knob Assembly
13W10525121 Whirlpool Control Bracket
14WP8523265 Whirlpool Indicator Light
