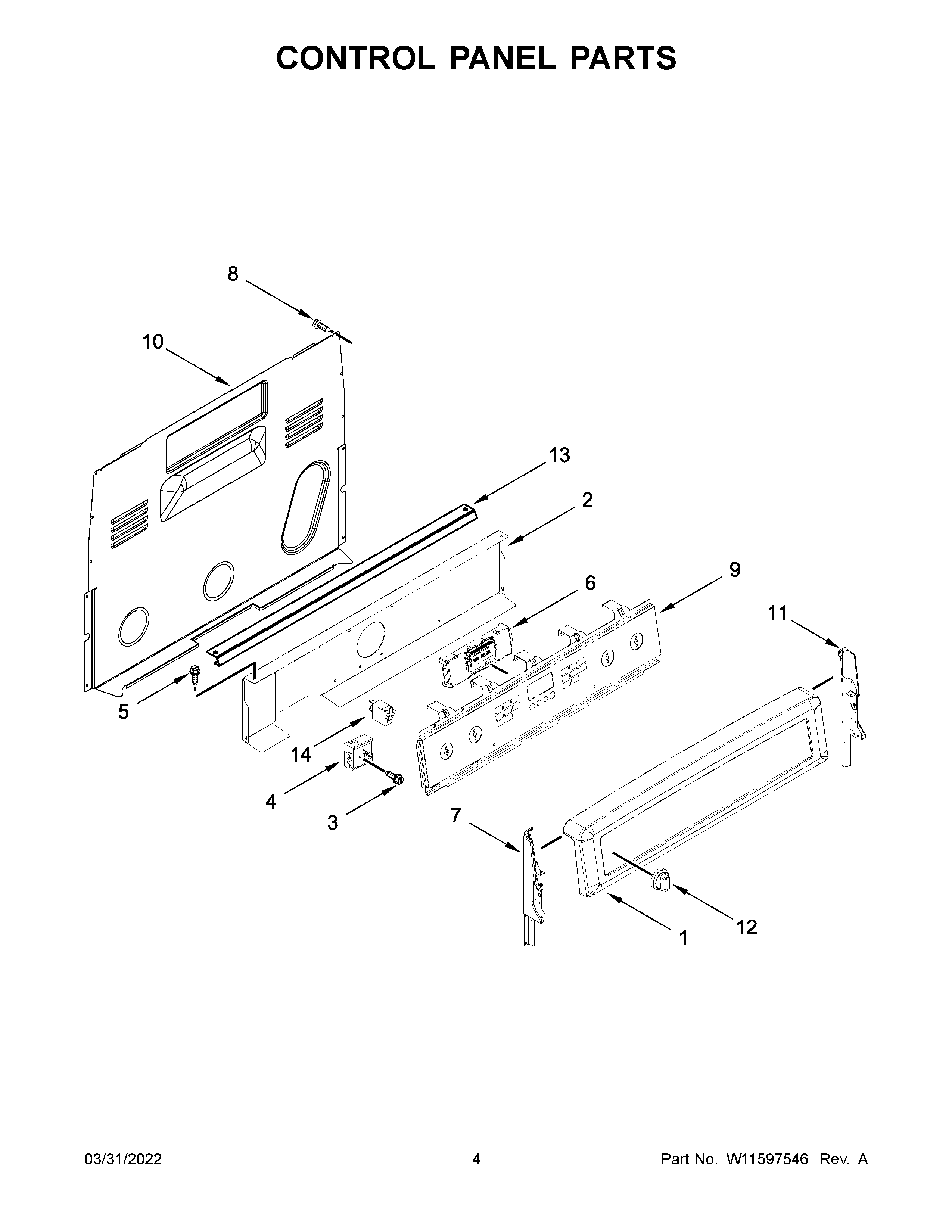

MER8800FZ5 03 – CONTROL PANEL PARTS

MER8800FZ5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11164063 Whirlpool Control Panel
2W10134247 Whirlpool Heat Shield
3WP3400882 Whirlpool Screw
4AW10911303 Whirlpool Infinite Switch
4SWITCH-INF
4BW10917724 Whirlpool Infinite Switch
5SCREW
6W11594263-includeCORE Whirlpool W11594263 Refrigerator Electronic Control Board + Core
7W11219664 Whirlpool Endcap Panel
8W11245710 Whirlpool Refrigerator Screw
9W11469056 Whirlpool Membrane Switch
10WP8272473 Whirlpool Rear Cover
11W11219665 Whirlpool Panel Endcap
12W11084052 Whirlpool Knob Assembly
13W10525121 Whirlpool Control Bracket
14WP8523265 Whirlpool Indicator Light
