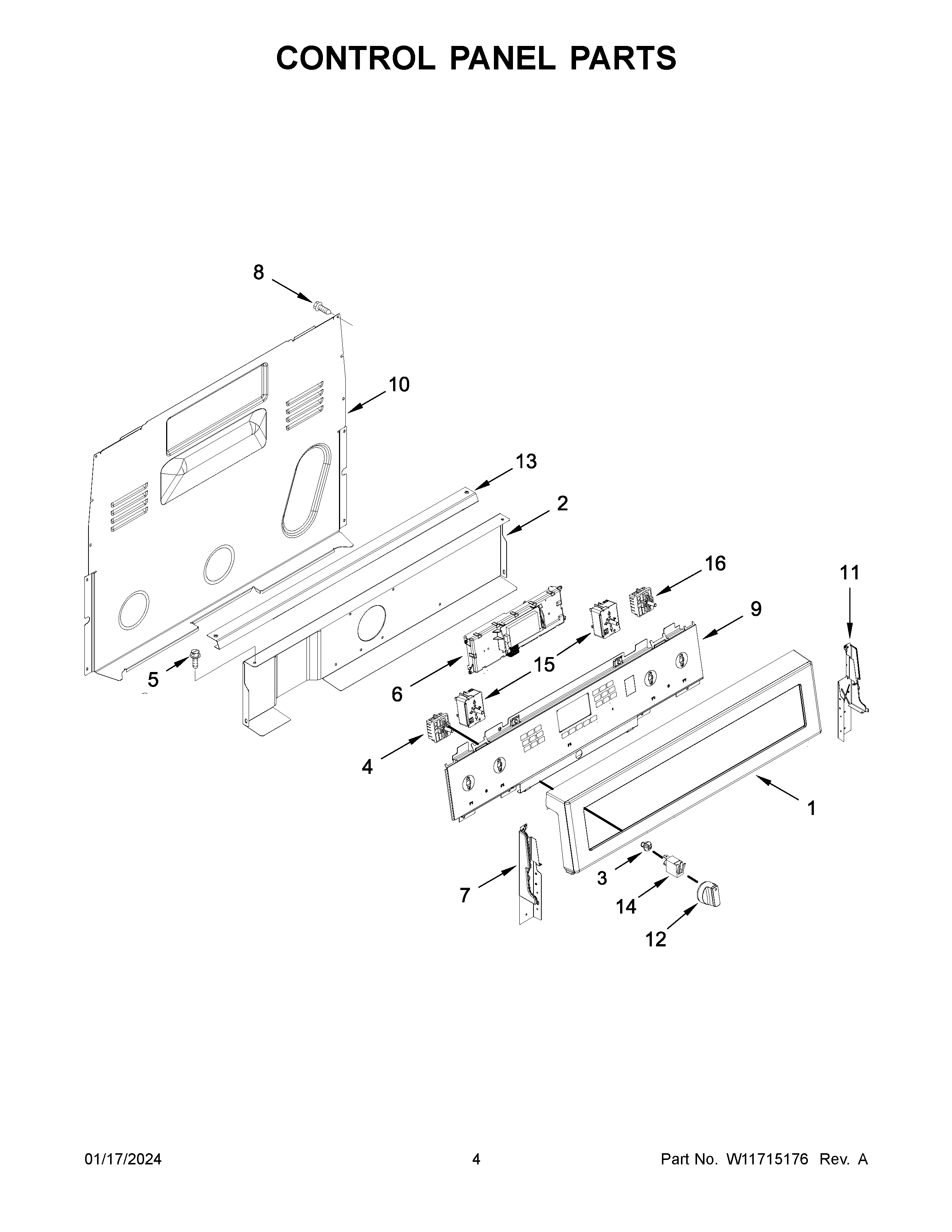

MER8800FZ6 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11164063 Whirlpool Control Panel
2	W10134247 Whirlpool Heat Shield
3	WP3400882 Whirlpool Screw
4	SWITCH-INF
5	SCREW
6	W11594263-includeCORE Whirlpool W11594263 Refrigerator Electronic Control Board + Core
7	W11219664 Whirlpool Endcap Panel
8	W11245710 Whirlpool Refrigerator Screw
9	W11469056 Whirlpool Membrane Switch
10	WP8272473 Whirlpool Rear Cover
11	W11219665 Whirlpool Panel Endcap
12	W11084052 Whirlpool Knob Assembly
13	W10525121 Whirlpool Control Bracket
14	WP8523265 Whirlpool Indicator Light
15	W10911303 Whirlpool Infinite Switch
16	W10917724 Whirlpool Infinite Switch
