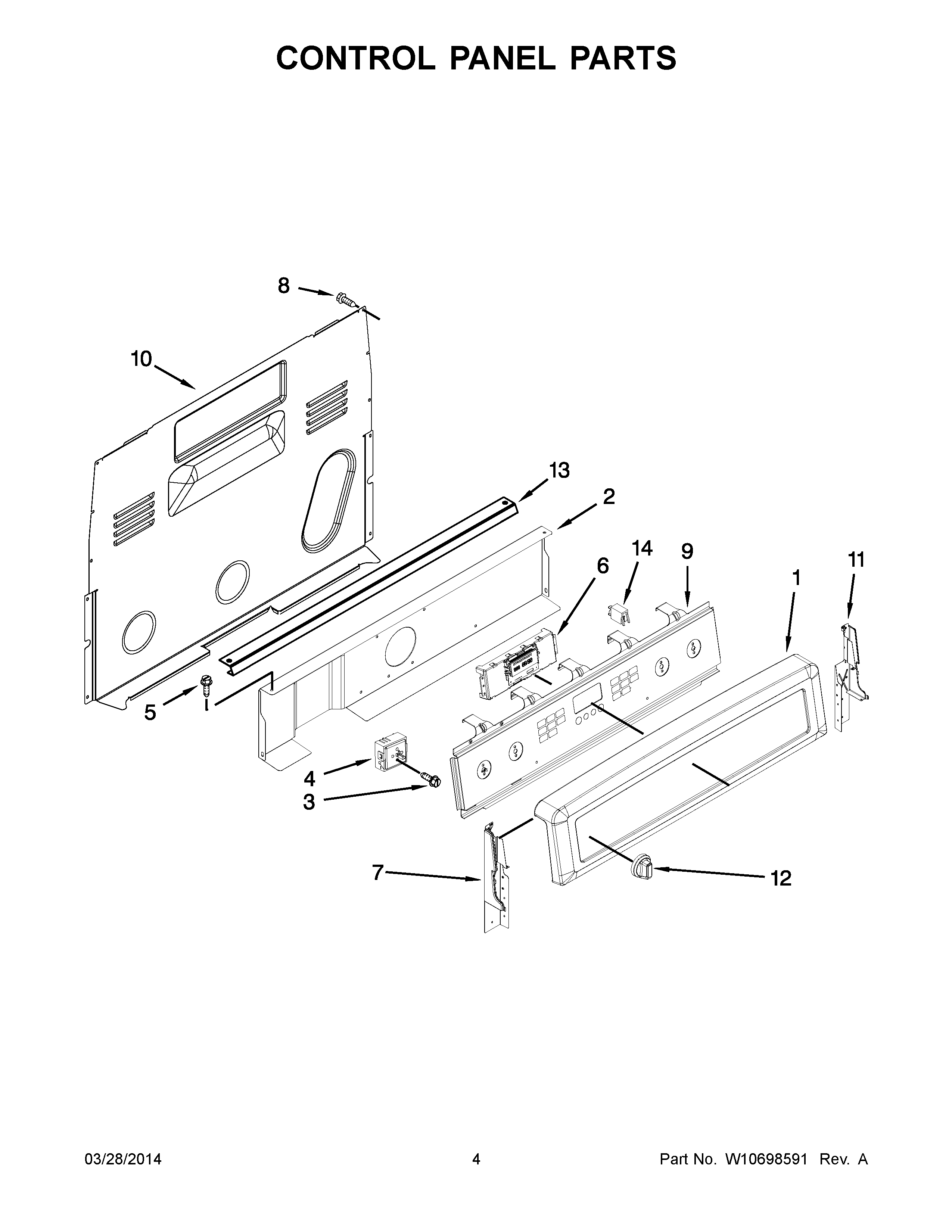

MER8850DS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (STAINLESS)
2SHIELD, HEAT
3SCREW
4SWITCH, INFINITE (LEFT FRONT)
4SWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5MAY W10362924
6MAY W10340324
7ENDCAP (BLACK (LEFT))
8SCREW
9ACTIVE OVERLAY ASSEMBLY (STAINLESS)
10COVER, UPPER REAR
11ENDCAP (BLACK (RIGHT))
12MAY W10666901
13BRACKET, CONSOLE MOUNTING
14MAY 8523265
