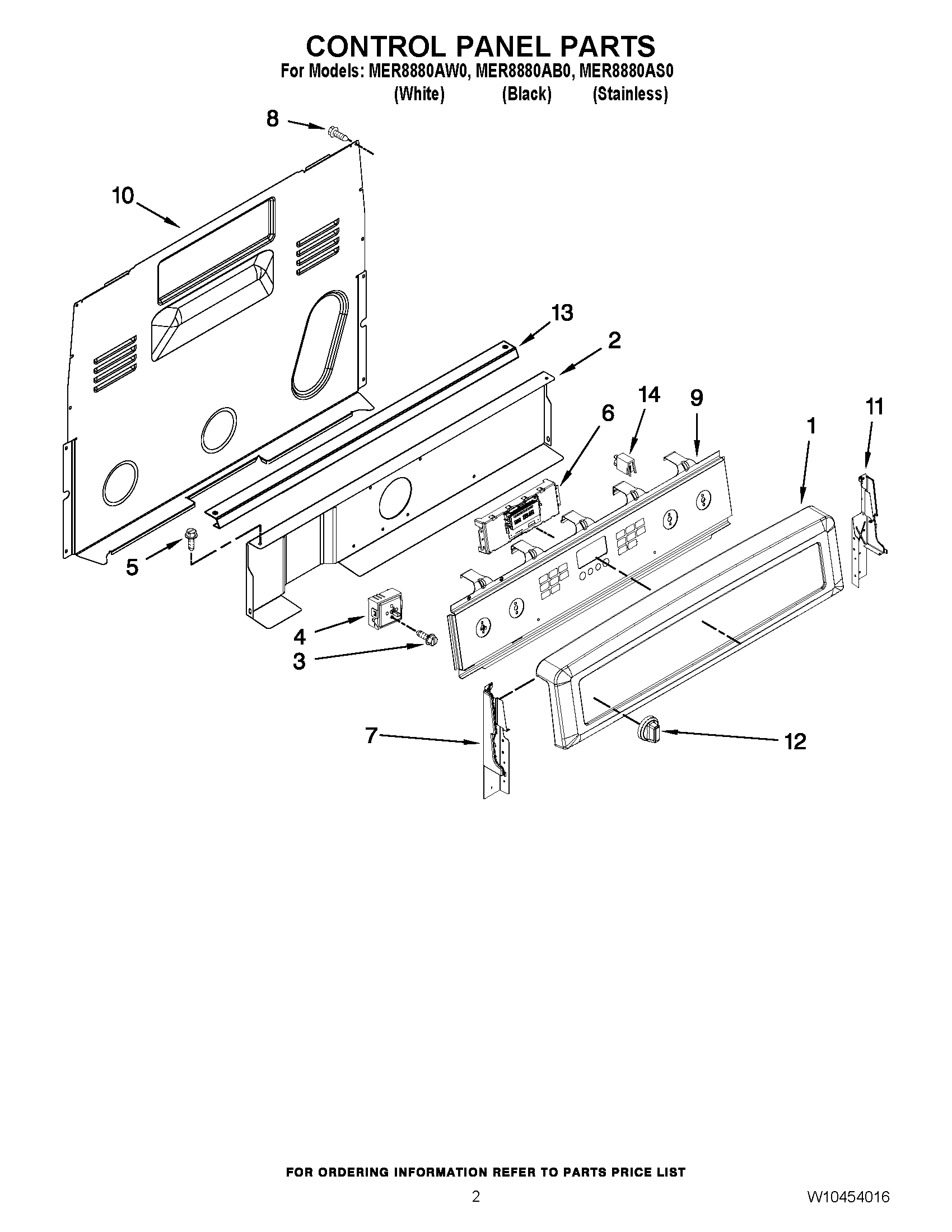

MER8880AB0 02 – CONTROL PANEL PARTSadmin2025-04-26T08:54:50+00:00MER8880AB0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10097280 |
| 1 | MAY W10097270 |
| 1 | CONSOLE (STAINLESS) |
| 2 | SHIELD, HEAT |
| 3 | SCREW |
| 4 | SWITCH, INFINITE (LEFT FRONT) |
| 4 | SWITCH, INFINITE (DUAL) (LEFT FRONT) |
| 4 | SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR) |
| 4 | SWITCH, INFINITE (RIGHT FRONT) |
| 5 | MAY W10362924 |
| 6 | CONTROL (MRC) |
| 7 | ENDCAP (BLACK (LEFT)) |
| 7 | ENDCAP (WHITE (LEFT)) |
| 8 | SCREW |
| 9 | ASSEMBLY, ACTIVE OVERLAY (STAINLESS) |
| 9 | ASSEMBLY, ACTIVE OVERLAY (BLACK) |
| 9 | ASSEMBLY, ACTIVE OVERLAY (WHITE) |
| 10 | COVER, UPPER REAR |
| 11 | ENDCAP (WHITE (RIGHT)) |
| 11 | ENDCAP (BLACK (RIGHT)) |
| 12 | MAY W10370186 |
| 12 | MAY W10370185 |
| 12 | MAY W10370184 |
| 13 | Bracket, Console |
| 14 | MAY 8523265 |
