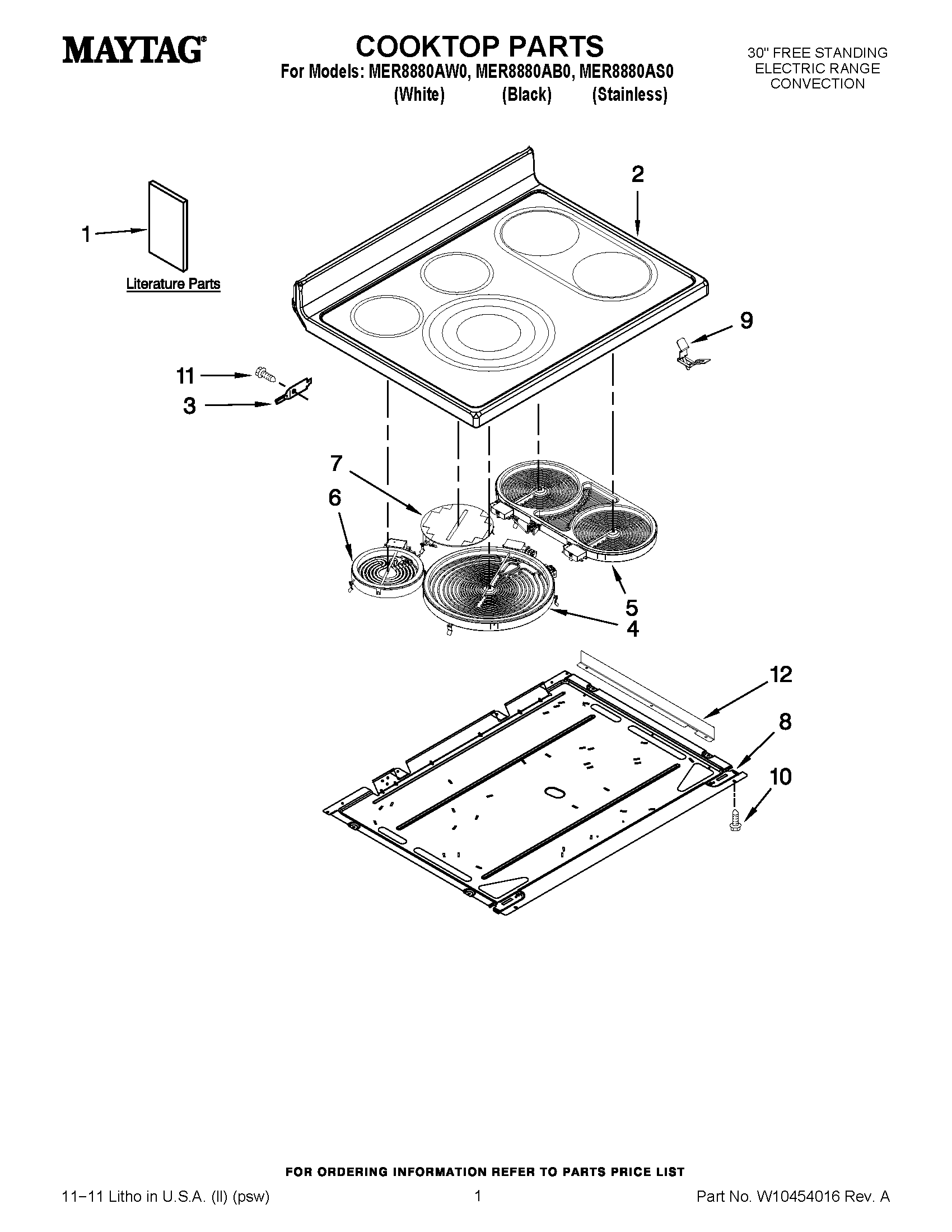

MER8880AS0 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	WIRING, DIAGRAM (ENGLISH)
1	MAY W10392923
1	MAY W10403811
1	MAY W10400064
2	COOKTOP (BLACK)
2	COOKTOP (WHITE)
3	HINGE, COOKTOP
4	ELEMENT (LF) 3000/2200/1100W
5	ELEMENT, BRIDGE (RIGHT FRONT & RIGHT REAR)
6	ELEMENT (1300W) (LEFT REAR)
7	ELEMENT, WARM ZONE (CENTER REAR)
8	MAY W10106409
9	SPRING, ELEMENT
10	SCREW
11	SCREW
12	MAY W10348913
