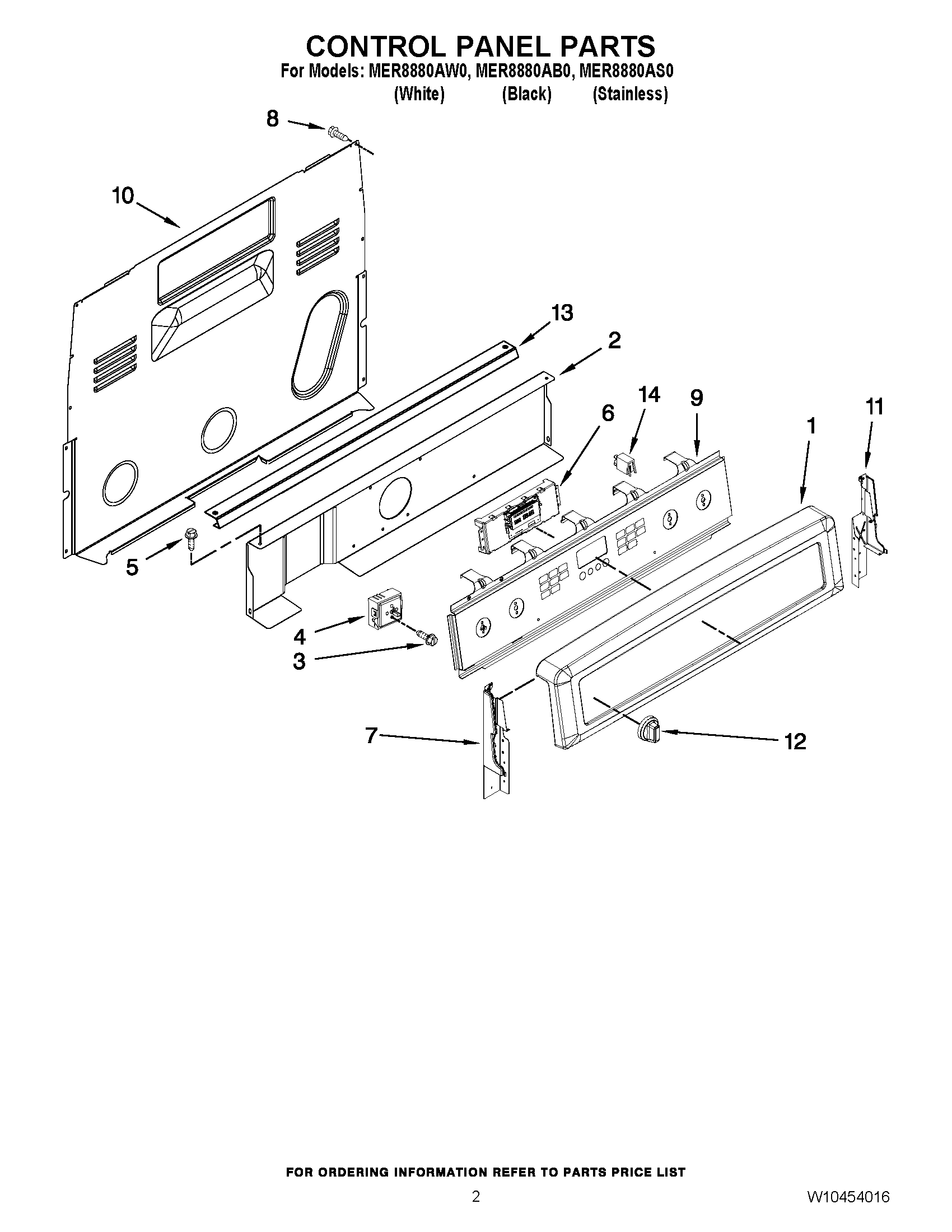

MER8880AS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10097280
1	MAY W10097270
1	CONSOLE (STAINLESS)
2	SHIELD, HEAT
3	SCREW
4	SWITCH, INFINITE (LEFT FRONT)
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (RIGHT FRONT)
5	MAY W10362924
6	CONTROL (MRC)
7	ENDCAP (BLACK (LEFT))
7	ENDCAP (WHITE (LEFT))
8	SCREW
9	ASSEMBLY, ACTIVE OVERLAY (STAINLESS)
9	ASSEMBLY, ACTIVE OVERLAY (BLACK)
9	ASSEMBLY, ACTIVE OVERLAY (WHITE)
10	COVER, UPPER REAR
11	ENDCAP (WHITE (RIGHT))
11	ENDCAP (BLACK (RIGHT))
12	MAY W10370186
12	MAY W10370185
12	MAY W10370184
13	Bracket, Console
14	MAY 8523265
