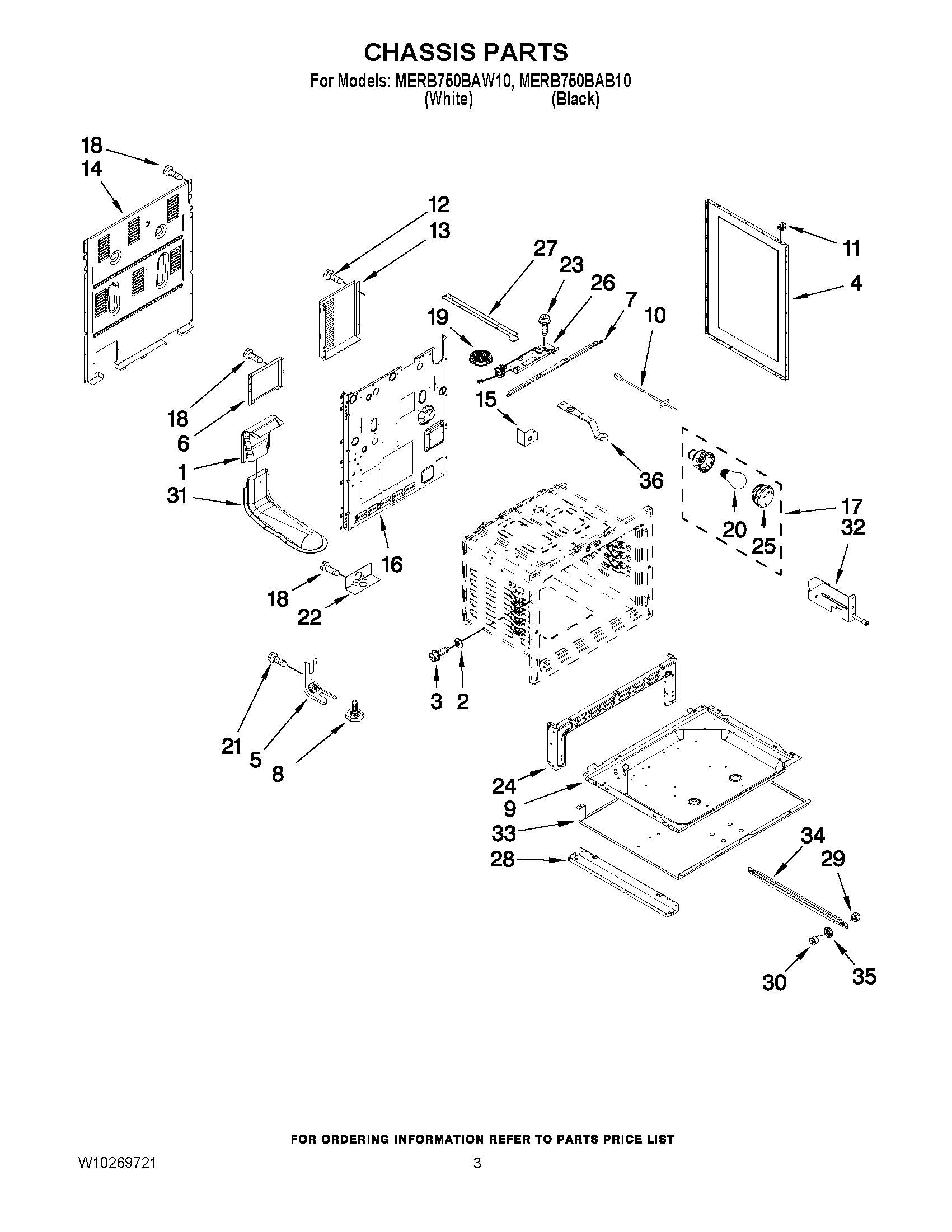

MERB750BAB10 03 – CHASSIS PARTSadmin2025-04-26T08:54:59+00:00MERB750BAB10 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P398-60 |
| NI | INSULATION, BACK |
| 1 | MAY 8026P082-60 |
| 2 | MAY 8004P024-60 |
| 3 | MAY 7101P618-60 |
| 4 | Panel, Side (White) (2) |
| 4 | Panel, Side (Black) (2) |
| 5 | BRACKET, ANTI-TIP |
| 6 | MAY 4005F747-51 |
| 7 | MAY 3801F924-80 |
| 8 | Leg, Leveling |
| 9 | MAY 3804F231-51 |
| 10 | MAY 7430P042-60 |
| 11 | SPACER, MAIN TOP (RT) |
| 11 | SPACER, MAIN TOP (LT) |
| 12 | MAY 7101P388-60 |
| 13 | MAY 4005F803-51 |
| 14 | MAY 4005F717-51 |
| 15 | SUPPORT,OVEN REAR |
| 16 | MAY 4002F348-51 |
| 17 | MAY 7407P181-60 |
| 18 | MAY 7101P376-60 |
| 19 | SCREEN, SMOKE ELM. |
| 20 | MAY W10132131 |
| 21 | SCREW, ANTI-TIP KIT |
| 22 | MAY 3801F574-51 |
| 23 | Screw (Black) (2) |
| 24 | MAY 4020L026-80 |
| 25 | MAY 209429 |
| 26 | MAY 8002P086-60 |
| 27 | MAY 4011F459-51 |
| 27 | MAY 4011F458-51 |
| 28 | MAY 4020F021-80 |
| 29 | MAY 7103P190-60 |
| 30 | MAY 7118P032-60 |
| 31 | MAY 4006W129-45 |
| 32 | MAY W10201670 |
| 33 | SHIELD, WARMING DRAWER |
| 34 | MAY 3406F032-51 |
| 35 | MAY 8014P022-60 |
| 36 | LEVER, LOCK |
