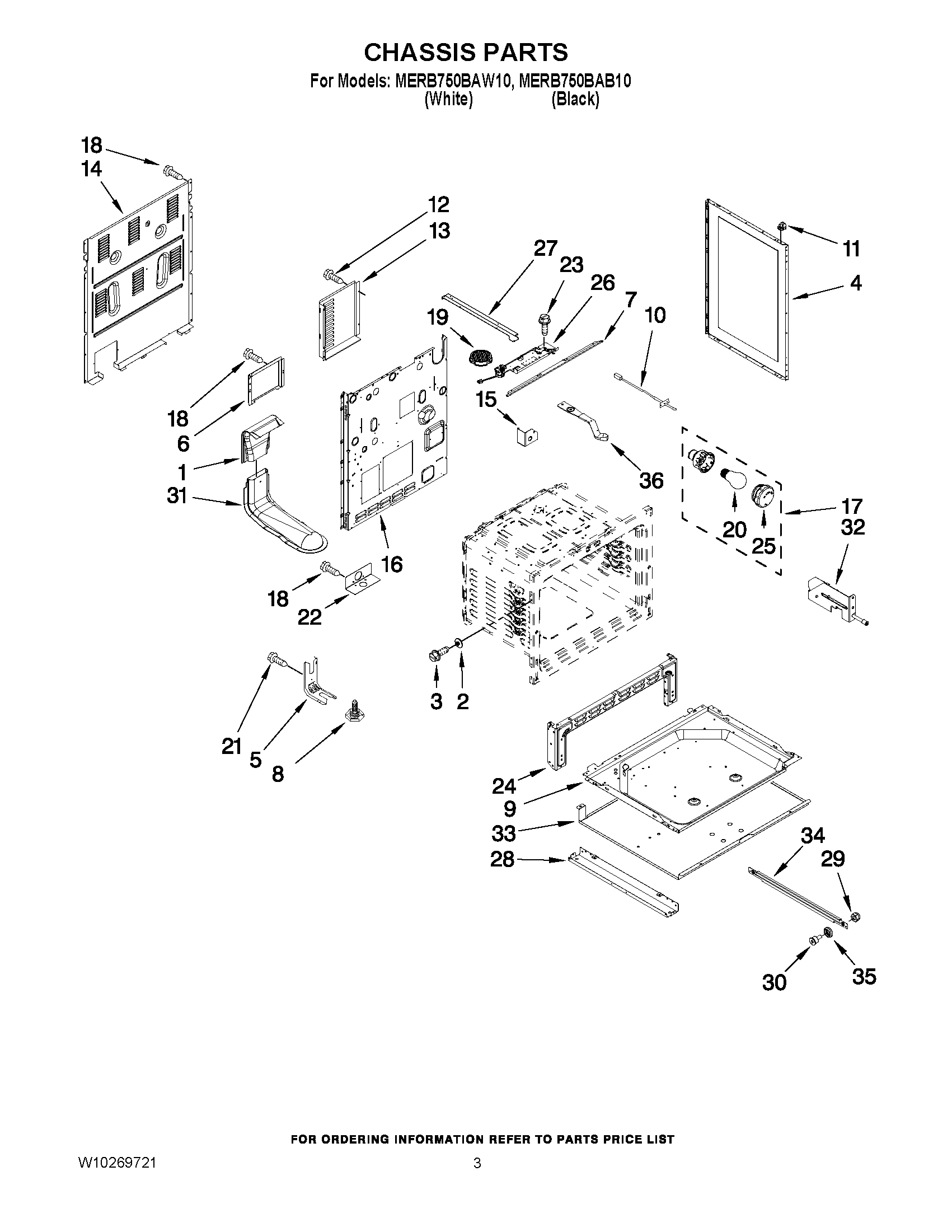

MERB750BAW10 03 – CHASSIS PARTS
Written by
in
MERB750BAW10 03 – CHASSIS PARTS
Products
Position
Product
NI
MAY 7002P398-60
NI
INSULATION, BACK
1
MAY 8026P082-60
2
MAY 8004P024-60
3
MAY 7101P618-60
4
Panel, Side (White) (2)
4
Panel, Side (Black) (2)
5
BRACKET, ANTI-TIP
6
MAY 4005F747-51
7
MAY 3801F924-80
8
Leg, Leveling
9
MAY 3804F231-51
10
MAY 7430P042-60
11
SPACER, MAIN TOP (RT)
11
SPACER, MAIN TOP (LT)
12
MAY 7101P388-60
13
MAY 4005F803-51
14
MAY 4005F717-51
15
SUPPORT,OVEN REAR
16
MAY 4002F348-51
17
MAY 7407P181-60
18
MAY 7101P376-60
19
SCREEN, SMOKE ELM.
20
MAY W10132131
21
SCREW, ANTI-TIP KIT
22
MAY 3801F574-51
23
Screw (Black) (2)
24
MAY 4020L026-80
25
MAY 209429
26
MAY 8002P086-60
27
MAY 4011F459-51
27
MAY 4011F458-51
28
MAY 4020F021-80
29
MAY 7103P190-60
30
MAY 7118P032-60
31
MAY 4006W129-45
32
MAY W10201670
33
SHIELD, WARMING DRAWER
34
MAY 3406F032-51
35
MAY 8014P022-60
36
LEVER, LOCK
←
