MERB750BAW10 04 – DOOR PARTS – Aparts

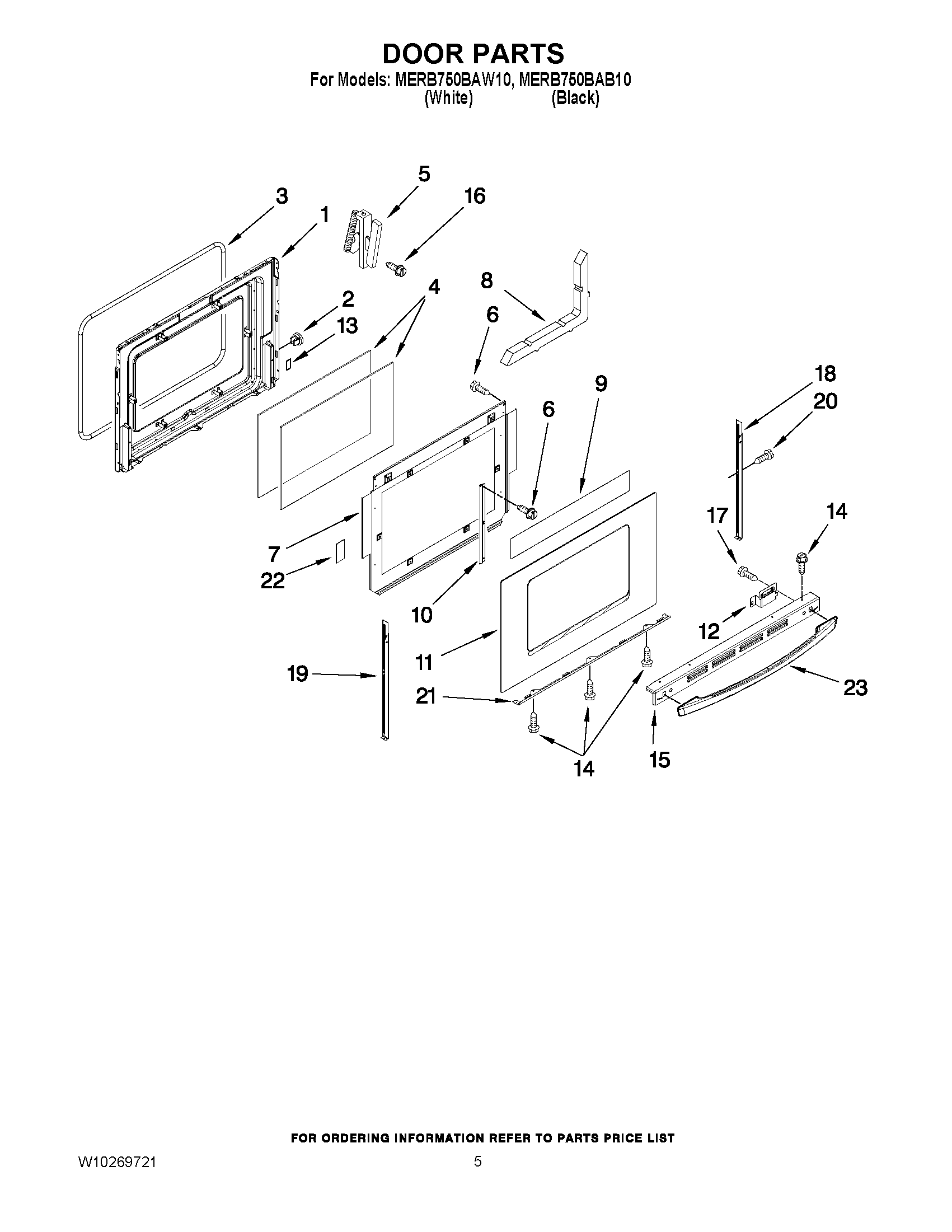

MERB750BAW10 04 – DOOR PARTS

Products

Position	Product
1	MAY 2402W312-19
2	MAY 7103P141-60
3	GASKT-DOOR OVEN
4	Glass, Door
5	MAY 7106P141-60
6	MAY 7101P388-60
7	MAY 3601F373-45
8	MAY 7002P246-60
9	FOIL, TAPE
10	RETAINER, DR GLASS
11	MAY 12002395
11	MAY 12002396
12	MAY 3801F831-45
12	MAY 3801F832-45
13	MAY 8010P130-60
14	MAY 7101P543-60
15	MAY 3608F141-71
15	MAY 3608F141-70
16	SCREW (10-24X5/16-NI)
17	SCREW (10ABX1/4P TR ZN)
18	MAY 3608F116-70
18	MAY 3608F116-71
19	MAY 3608F177-71
19	MAY 3608F117-70
20	Screw (2) (Black)
21	MAY 3807F708-70
22	MAY 8270P139-60
23	MAY 7701P531-60
23	MAY 7701P533-60
