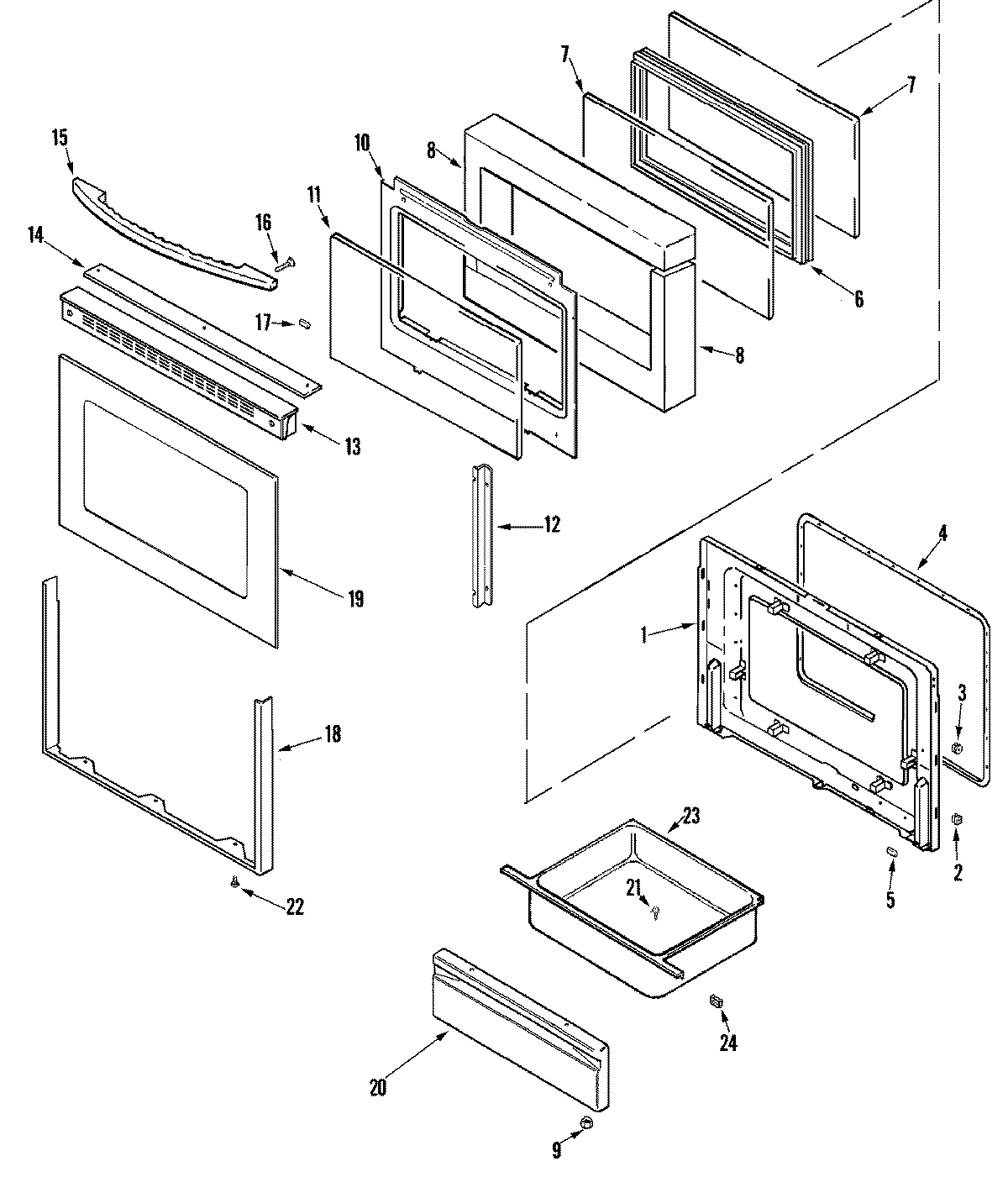

MERD750BAB 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	INSULATION, OVEN DOOR
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74006402
15	MAY 74006286
16	WP74006515 Whirlpool Washer Screw
17	MAY 71002092
18	WP98008545 Whirlpool Screw
18	MAY 74004324
19	MAY 74006406
20	MAY 74003689
21	WP7101P072-60 Whirlpool Screw
22	SCREW
23	MAY 71003042
24	WP854334 Whirlpool Air Conditioner Sealing Strip
