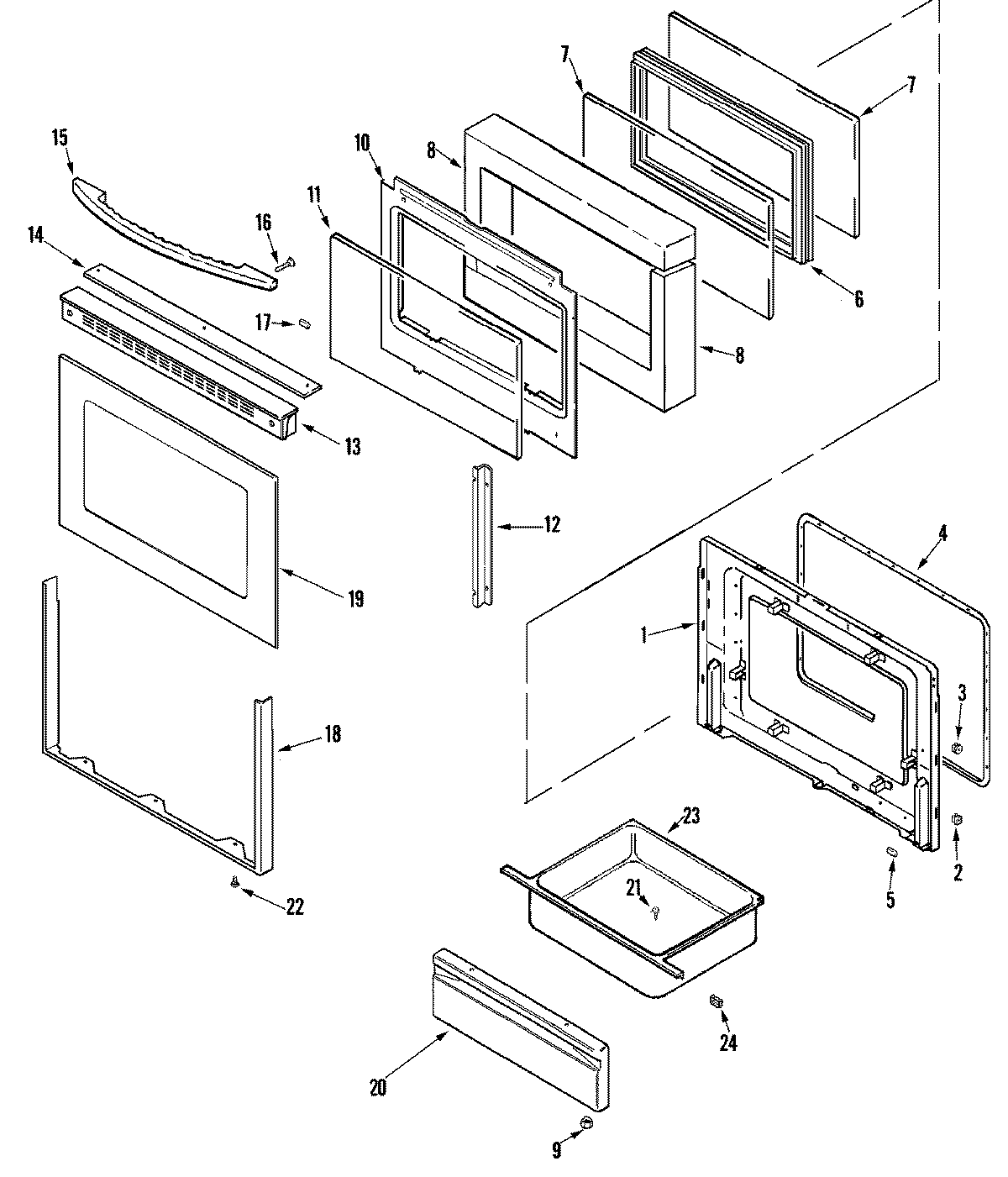

MERD750BAN 03 – DOOR/DRAWER

MERD750BAN 03 – DOOR/DRAWER

Written by

in

MERD750BAN 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8INSULATION, OVEN DOOR
9WPW10131078 Whirlpool Nut Assembly
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006403
14MAY 74004978
15MAY 74006377
16WP74006515 Whirlpool Washer Screw
17MAY 71002092
18MAY 74005162
18WP74009541 Whirlpool Screw Assembly
19MAY 74006405
20MAY 74005055
21WP7101P072-60 Whirlpool Screw
22SCREW
23MAY 71003042
24WP854334 Whirlpool Air Conditioner Sealing Strip
