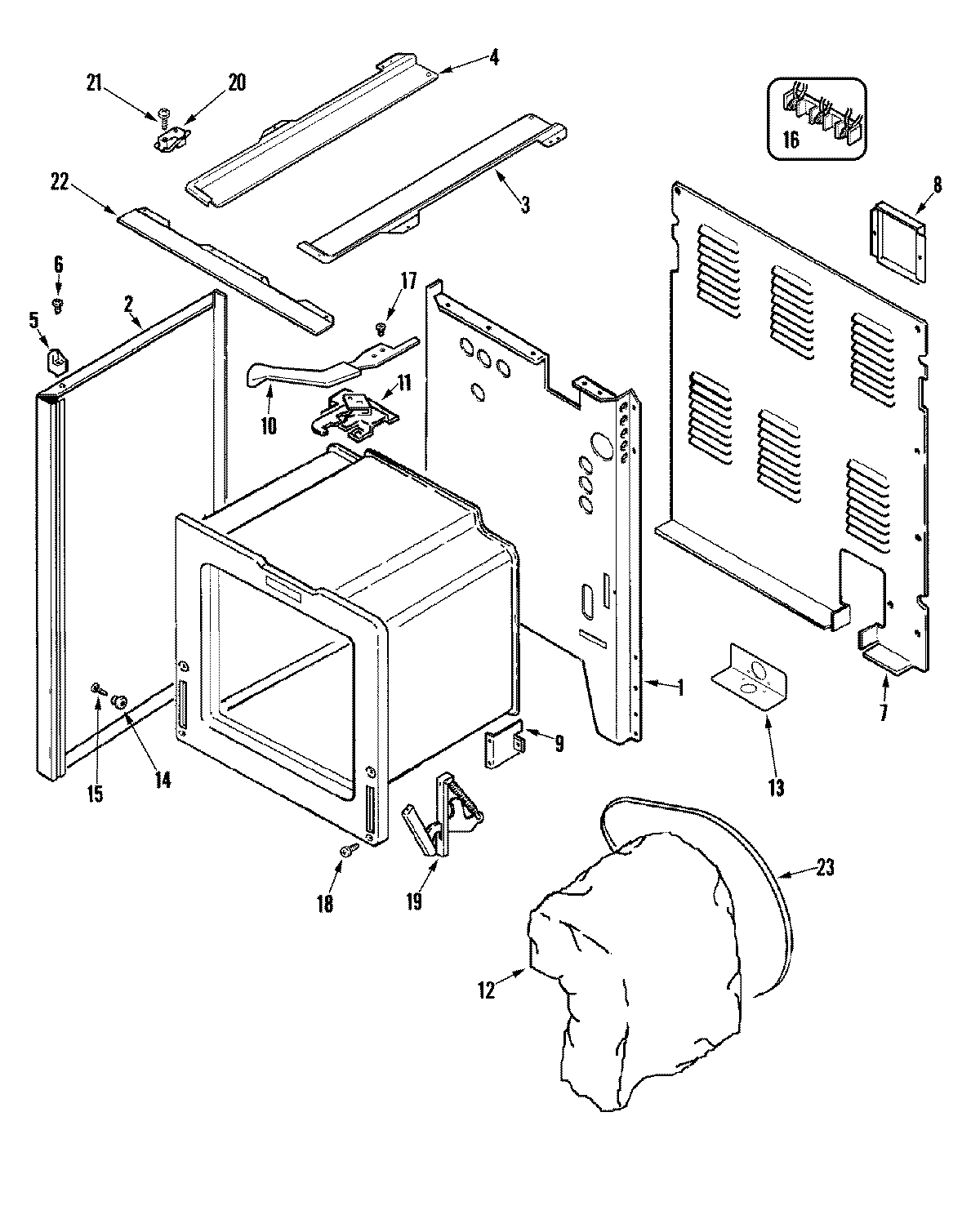

MERD750BAS 01 – BODY

Products

Position	Product
1	MAY 74006322
2	MAY 74003283
3	MAY 74003378
4	MAY 74003379
5	SCREW (8BX3/8-NI)
5	SPACER, MAIN TOP (LT)
5	SPACER, MAIN TOP (RT)
6	SCREW
7	MAY 74003241
8	MAY 4005F427-51
9	SUPPORT,OVEN REAR
10	MAY 74003005
11	MAY 74003380
11	MAY 74001084
11	MAY 74003139
11	MAY 12001944
11	W10828565 Whirlpool Screw
12	MAY 74005771
12	WP74010942 Whirlpool Insulation
13	W10190166 Whirlpool Service Bracket
14	MAY 8004P024-60
15	MAY 74001449
15	W11693756 Whirlpool Screw Assembly
16	WPW10245259 Whirlpool Terminal Block
16	WP7103P027-60 Whirlpool Nut
16	SCREW (10ABX1.0-ZN)
18	WP4159193 Whirlpool Screw
19	MAY 74005399
20	MAY 74003630
20	MAY 74003383
21	MAY 912012
22	MAY 74003384
23	MAY 74003385
