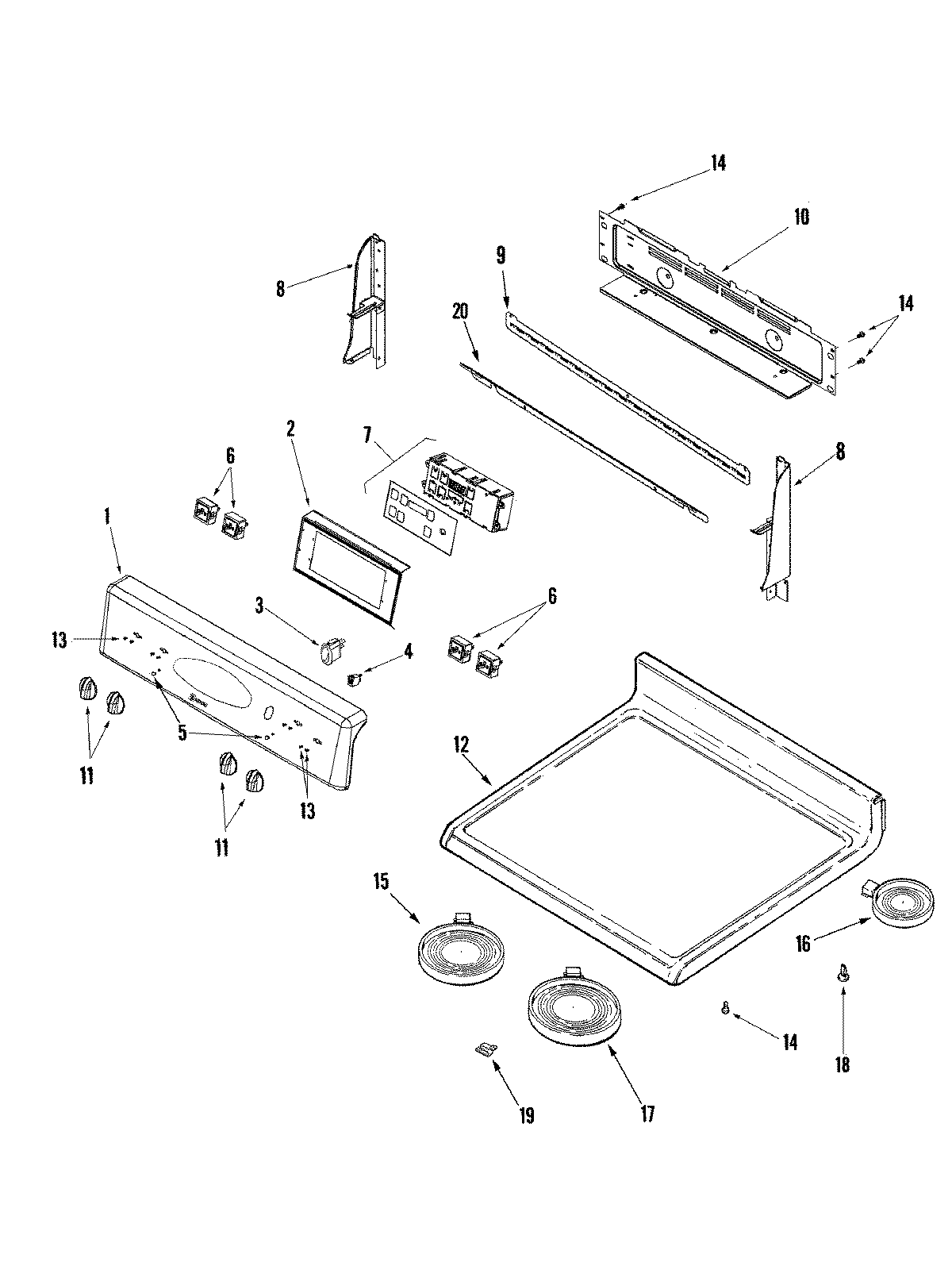

MERH752BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

MERH752BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MERH752BAQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009072
2BRACKET, CLOCK
37403P984-60 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
75701M760-60 Whirlpool Electronic Control Board
8WP74009541 Whirlpool Screw Assembly
8MAY 74010714
8MAY 74010712
9MAY 74009701
10COVER, REAR WIRE
11MAY 74009189
12MAY 74011210
13SCREW
14SCREW
15W10823715 Whirlpool Radiant Surface Element
16W10823711 Whirlpool Surface Element Left Front and Right Rear
17MAY 74009082
198004P093-60 Whirlpool Support C
19W11189172 Whirlpool Glide Drawer
20MAY 74009978
20WP90767 Whirlpool Screw
