MERH752BAQ 04 – OVEN/BASE

MERH752BAQ 04 – OVEN/BASE

Written by

in

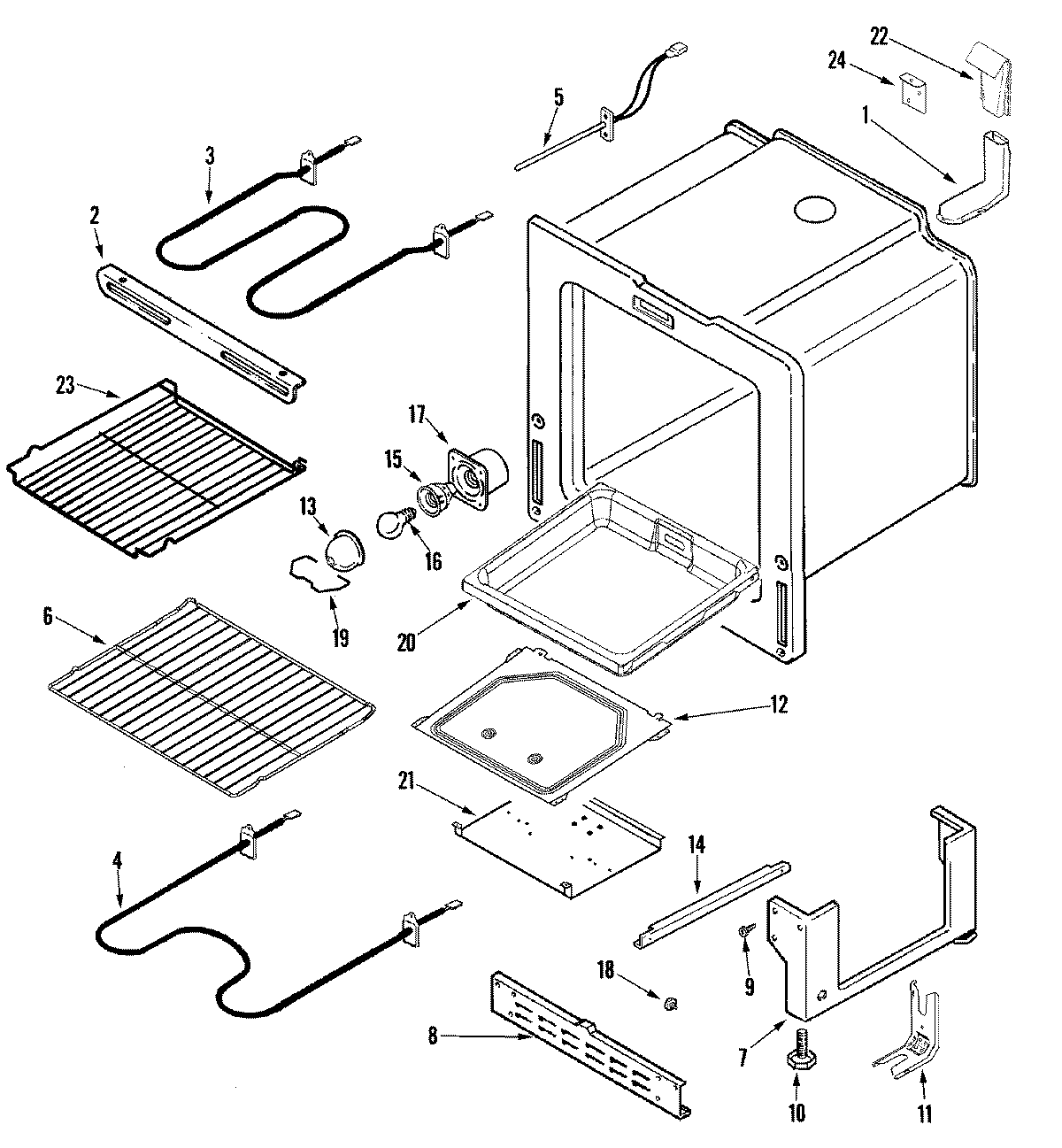

MERH752BAQ 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003394
2SUPPORT, BROIL ELEMENT
3WPW10310249 Whirlpool Broil Element
4WP7406P438-60 Whirlpool Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
11WP7101P485-60 Whirlpool Anchor Tip
12RETAINER, INSULATION (BOTTOM)
13MAY 74003389
14RUNNER, DRAWER
14MAY 74003642
14LINING, DOOR
14SCREW
15MAY 74003387
15GASKT-DOOR OVEN
16MAY 74005055
16RANGE ONLY 40W 120V APPL BULB
17WP74009541 Whirlpool Screw Assembly
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74005546 Whirlpool RU Spacer
25WP488130 Whirlpool Air Conditioner Nut
