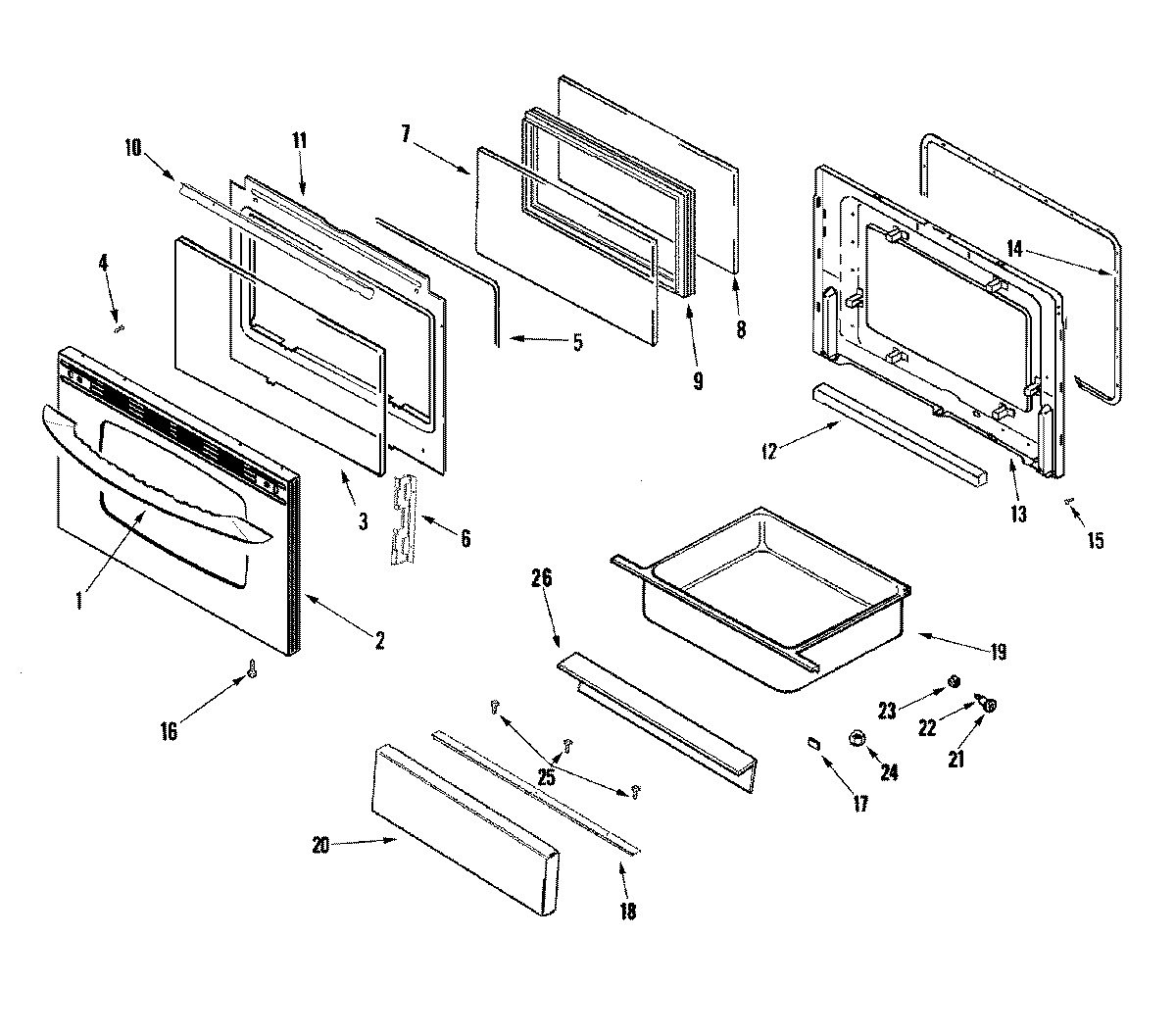

MERH752BAS 03 – DOOR/DRAWER (STL)

MERH752BAS 03 – DOOR/DRAWER (STL)

Written by

in

MERH752BAS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74010233
2NUT, SNAP (ROUND-BLK)
2MAY 74010232
3MAY 74010042
4WP74006515 Whirlpool Washer Screw
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
9FRAME, GLASS
10MAY 74010040
11MAY 74009502
12INSULATION, OVEN DOOR
13MAY 74003642
14GASKT-DOOR OVEN
17WP74005546 Whirlpool RU Spacer
18HANDLE, DRAWER (STL)
19MAY 74008337
19SCREW
19SPACER, RUBBER (BLK-SQUARE)
20MAY 74009842
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
24WPW10131078 Whirlpool Nut Assembly
26LINING, DRAWER PANEL
