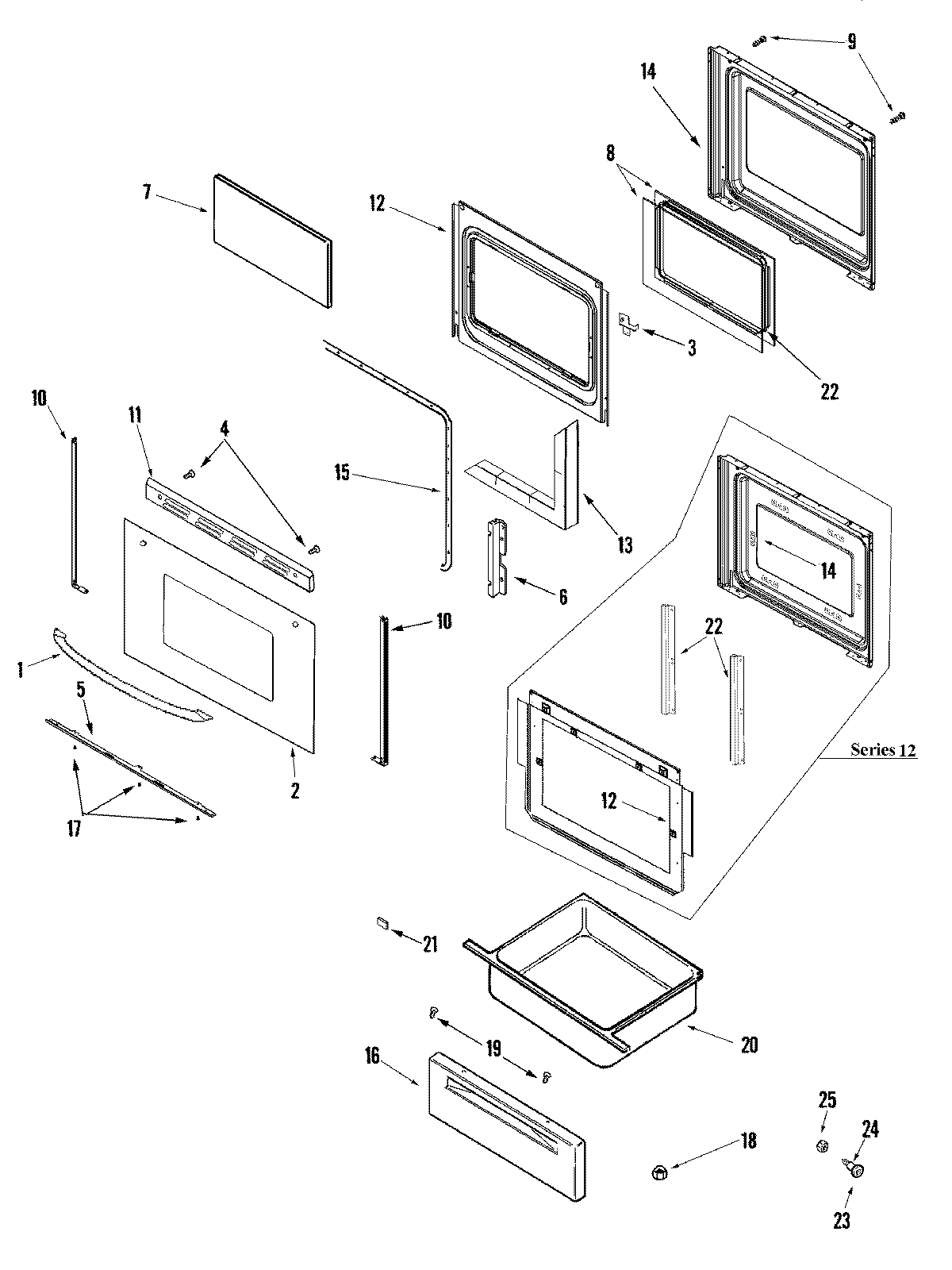

MERH752BAW 03 – DOOR/DRAWER

Products

Position	Product
1	WP74011675 Whirlpool Door Handle
2	MAY 74009732
3	3801F832-45 Whirlpool Bracket
3	3801F831-45 Whirlpool Bracket Assembly
4	WP74006515 Whirlpool Washer Screw
5	WP3807F708-71 Whirlpool Support
6	MAY 74003650
7	GLASS, DOOR
8	74003645 Whirlpool Range Oven Door Inner Glass
10	WP3608F117-71 Whirlpool Door Trim
10	SPACER, RUBBER (BLK-SQUARE)
10	WP74004224 Whirlpool Tape
10	WP3608F116-71 Whirlpool Door Trim
11	WP3608F141-71 Whirlpool Door Trim
11	MAY 7101P356-60
12	3601F373-51 Whirlpool Baffle
12	MAY 74009502
13	INSULATION, OVEN DOOR
14	NUT, SNAP (ROUND-BLK)
14	MAY 74003642
14	SCREW
14	LINING, DOOR
15	GASKT-DOOR OVEN
16	MAY 74003399
17	WP98008544 Whirlpool Screw Assembly
18	WPW10131078 Whirlpool Nut Assembly
20	MAY 74008337
21	WP74005546 Whirlpool RU Spacer
22	SCREW, 8 X 1/2
22	3801F886-51 Whirlpool Mounting Bracket
22	FRAME, GLASS
23	WP74004078 Whirlpool Door Roller
24	SHAFT, STORAGE DRAWER ROLLER
25	WP488130 Whirlpool Air Conditioner Nut
