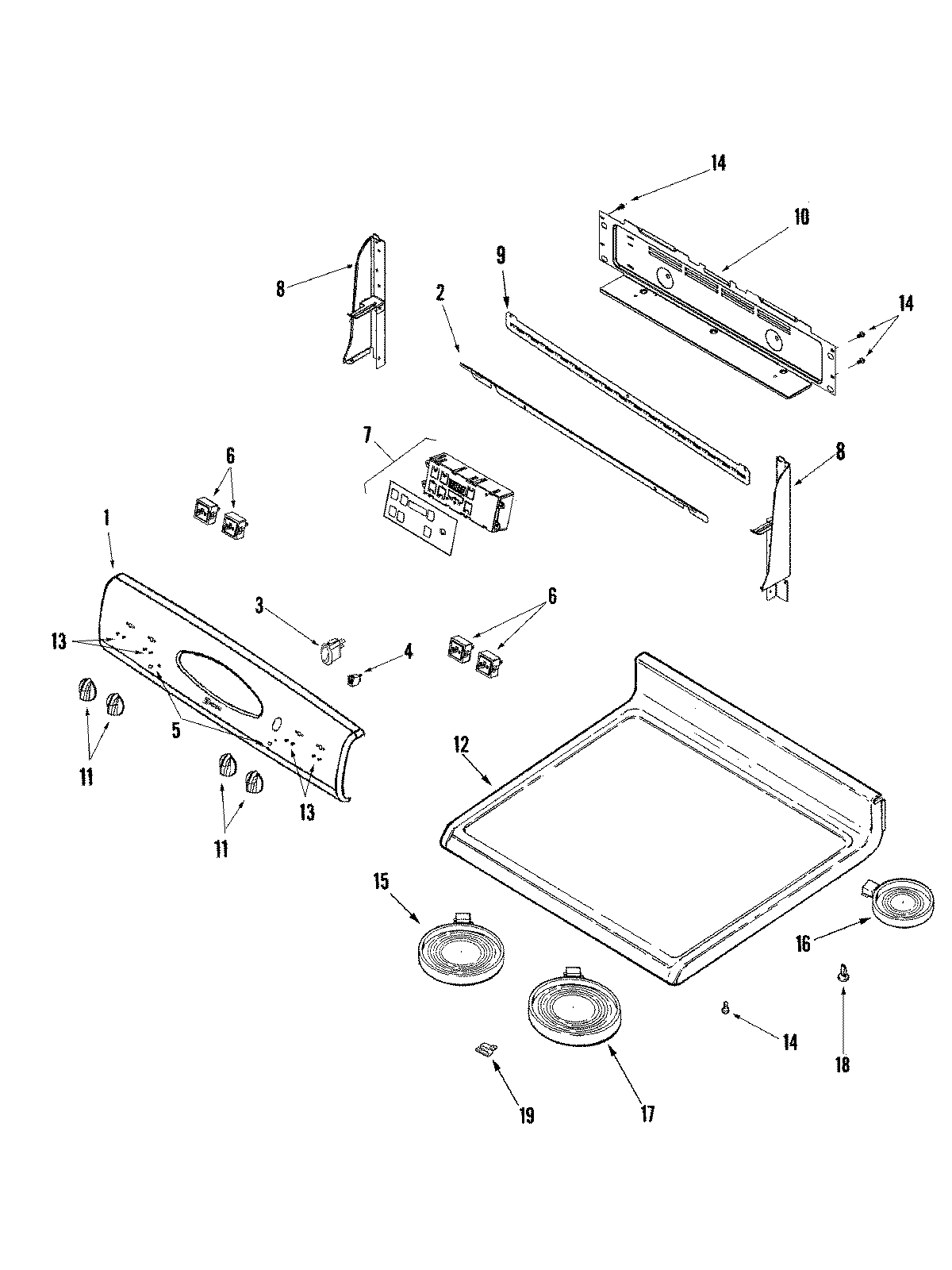

MERH752CAS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74010266
2	MAY 74009978
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	5701M760-60 Whirlpool Electronic Control Board
8	MAY 74010201
8	MAY 74010202
8	WP98008545 Whirlpool Screw
9	MAY 74009701
10	WP90767 Whirlpool Screw
10	COVER, REAR WIRE
12	MAY 74011209
13	SCREW
14	SCREW
15	W10823715 Whirlpool Radiant Surface Element
16	W10823711 Whirlpool Surface Element Left Front and Right Rear
17	MAY 74009082
19	W11189172 Whirlpool Glide Drawer
19	8004P093-60 Whirlpool Support C
