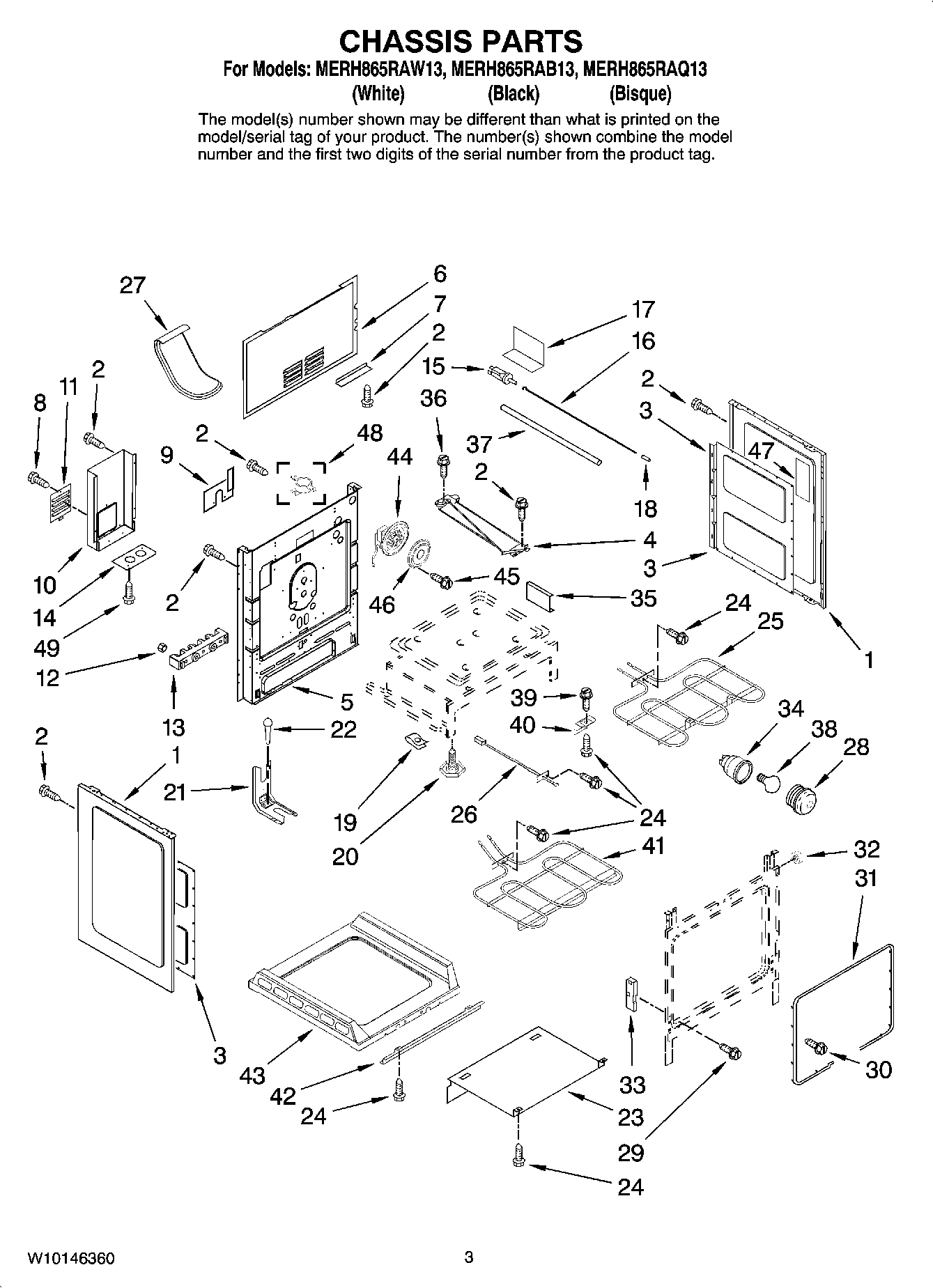

MERH865RAB13 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P492-60
NI	MAY 3804F316-51
NI	INSULATION, WRAPPER
1	PANEL, SIDE (BSQ)
1	MAY 74008710
1	MAY 74008709
2	MAY 71001394
3	MAY 74008701
4	MAY 8002P104-60
5	MAY 4002P347-51
6	COVER, MAIN WIRE (ELE)
7	BOTTOM, WIRE COVER
8	SCREW (8BX3/8-NI)
9	INSULATOR, POWER CORD
10	Cover, Wire (LWR)
11	MAY 74008340
12	WP7103P027-60 Whirlpool Nut
13	WPW10245259 Whirlpool Terminal Block
14	PLATE, CONDUIT REINFORCEMENT
15	74008703 Whirlpool Door Switch
16	MAY 74008706
17	MAY 74008704
18	74008707 Whirlpool Oven Bumper
19	74008835 Whirlpool Clip Retainer
20	W11665456 Whirlpool Range Level Foot
21	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
22	WP7101P485-60 Whirlpool Anchor Tip
23	MAY 74008689
24	SCREW
25	MAY 7406P493-60
26	12001656 Whirlpool Range Oven Temperature Sensor
27	MAY 74008691
28	MAY 74011299
29	SCREW (10-24X5/16-NI)
30	SCREW W/SHOULDER (No.8)
31	W11562931 Whirlpool Door Gasket
32	SPACER, SIDE PANEL
33	WP74010551 Whirlpool Receiver
34	WP74011278 Whirlpool Light
35	BRACKET, OVEN SUPPORT
36	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
37	SLEEVE, ROD TUBE
38	RANGE ONLY 40W 120V APPL BULB
39	WP74003976 Whirlpool Screw
40	SUPPORT, OVEN BOTTOM (REAR)
41	WPW10276482 Whirlpool Bake Element
42	SUPPORT, OVEN BOTTOM (FRONT)
43	WPW10211368 Whirlpool Oven Bottom
44	Fan Assy, Convect
46	COVER, CONVECT
47	MAY 7002P494-60
48	74008715 Whirlpool Thermal Limiter Switch
49	MAY 7101P336-60
