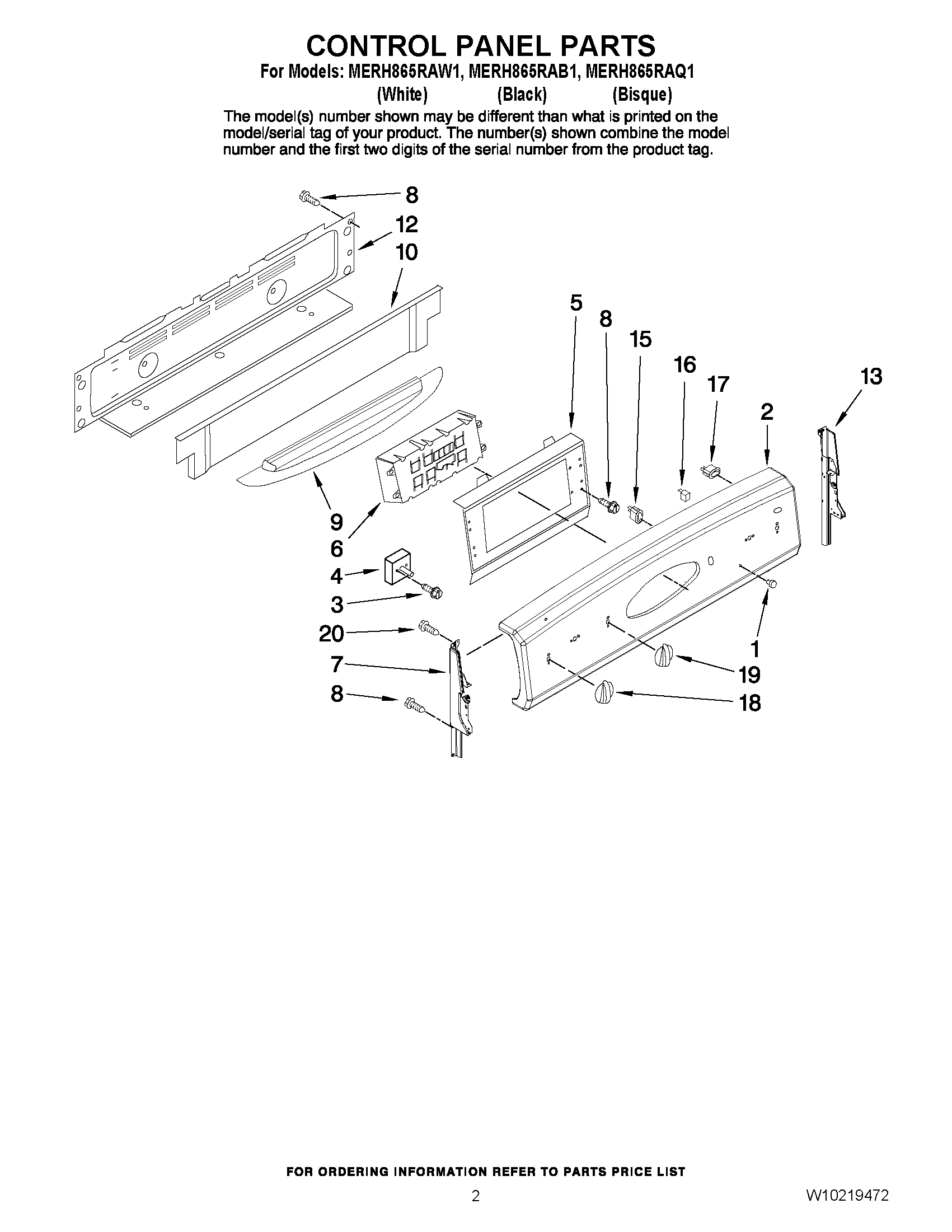

MERH865RAQ1 02 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY 3196068
2	MAY 2602D363-88
2	MAY 2602D363-81
2	MAY 2602D363-09
3	SCREW
4	MAY 7450P094-60
4	Switch, Infinte (6“ (RR/LR)(2))
4	SWITCH, INFINITE (LEFT REAR & RIGHT REAR)
4	SWITCH, INFINITE (LR,RR (2))
5	MAY 3801F844-51
6	MAY W10141433
6	Control W/Overlay (Bisque)
6	MAY W10141425
7	MAY 3807F703-70
7	MAY 3807F703-71
7	End Cap, Left (Bisque)
8	MAY 4159450
9	Shield, Heat Visor (Bisque)
9	MAY 3604F382-09
9	MAY 3604F382-81
10	MAY 3604F381-19
12	MAY 4005F803-51
13	MAY 3807F702-70
13	MAY 3807F702-71
13	End Cap, Right (Bisque)
15	MAY 7403P756-60
15	MAY 7403P757-60
15	MAY 7403P758-60
16	MAY 7407P136-60
17	SWITCH, ROCKER (WHITE)
17	Switch, Rocker
17	SWITCH, ROCKER (BISQUE)
18	Knob (4) (Bisque/Chrome)
18	Knob (4) (Black/Chrome)
19	MAY 7737P355-60
19	MAY 7737P390-60
19	Knob, Warm (1) (White/Chrome)
20	Screw (2) (Bisque)
20	Screw (2) (Black)
20	Screw (2) (White)
