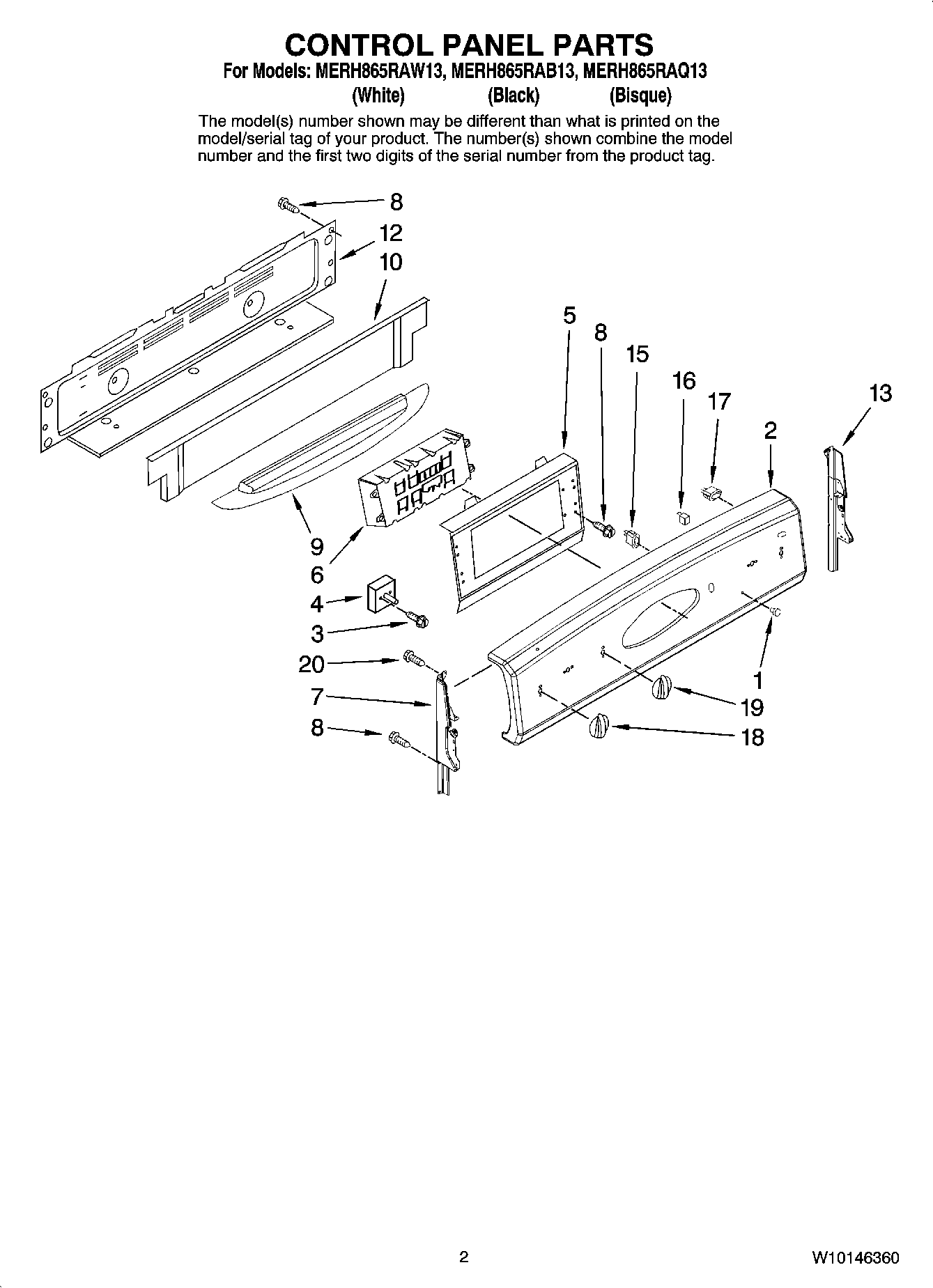

MERH865RAQ13 02 – CONTROL PANEL PARTS
Written by
in
MERH865RAQ13 02 – CONTROL PANEL PARTS
Products
Position
Product
1
WP7730P011-60 Whirlpool Indicator Lens
2
MAY W10129435
2
MAY W10144688
2
MAY W10129626
2
MAY W10129625
3
SCREW
4
WP7403P239-60 Whirlpool Oven Switch
4
WP74008940 Whirlpool Infinite Switch
4
Switch, Infinte (Dual (RF) (1))
4
WP7403P238-60 Whirlpool Infinite Switch (Small Element)
5
BRACKET, CLOCK
6
MAY W10141425
6
Control W/Overlay (Bisque)
6
MAY W10141433
7
END CAP (LT-BSQ)
7
End Cap (Left Black)
7
End Cap (Left White)
8
SCREW
9
MAY 74009202
9
MAY 74009203
9
SHIELD, HEAT VISOR (BSQ)
10
MAY 74009444
12
COVER, REAR WIRE
13
END CAP (RT-BSQ)
13
End Cap (Right White)
13
End Cap (Right Black)
15
WP74010226 Whirlpool RO Switch
15
7403P984-60 Whirlpool RO Switch
15
7403P985-60 Whirlpool Rocker Switch (Black)
16
WP74004153 Whirlpool Indicator Light
18
MAY 74009189
18
W11197495 Whirlpool Knob
19
MAY 74011358
19
MAY W10144686
19
MAY W10144687
20
WP98008545 Whirlpool Screw
20
Screw (2) (White)
20
Screw (2) (Bisque)
←
