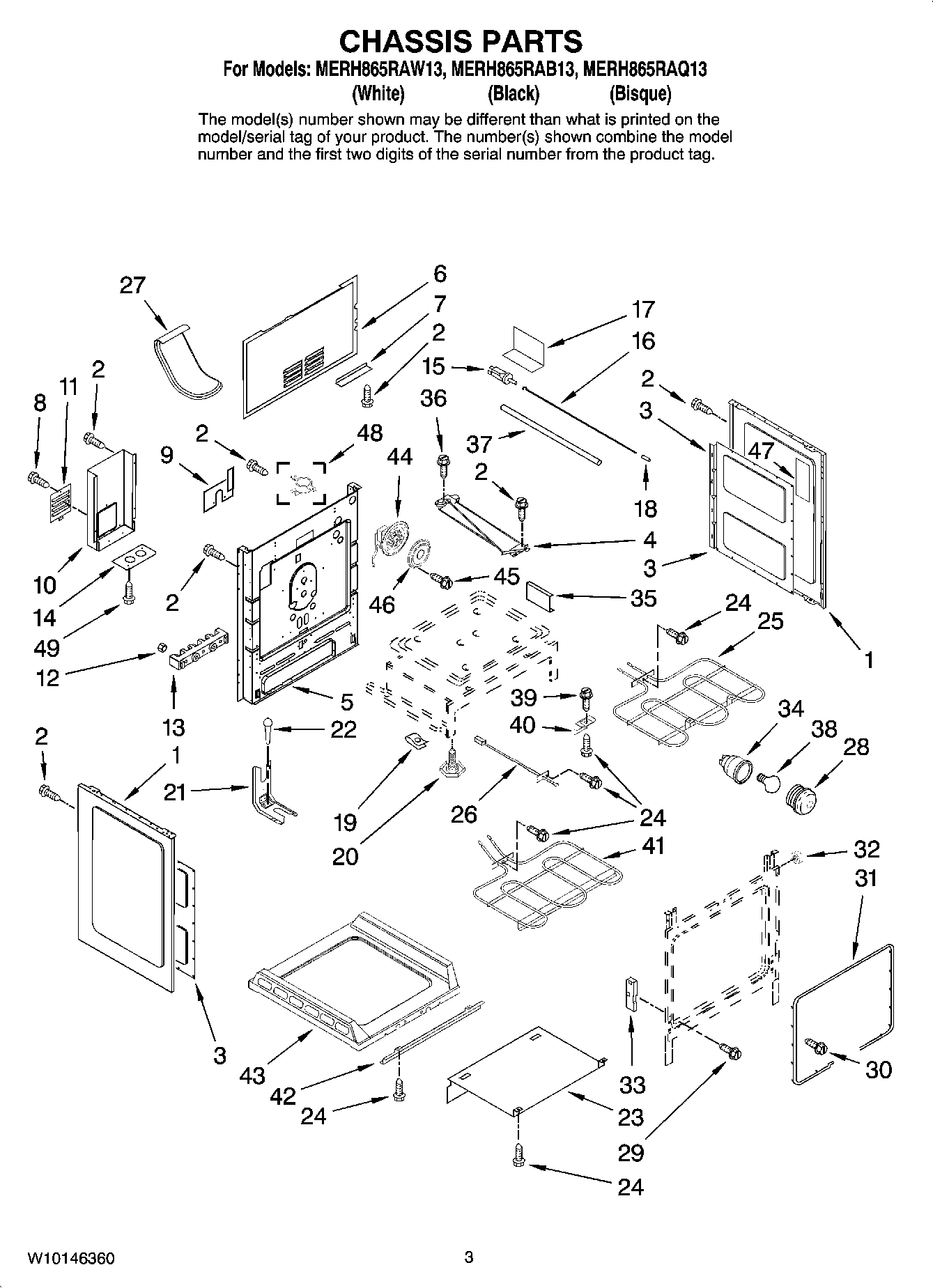

MERH865RAQ13 03 – CHASSIS PARTSadmin2025-04-26T08:54:45+00:00MERH865RAQ13 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY 7002P492-60 |
| NI | MAY 3804F316-51 |
| NI | INSULATION, WRAPPER |
| 1 | PANEL, SIDE (BSQ) |
| 1 | MAY 74008710 |
| 1 | MAY 74008709 |
| 2 | MAY 71001394 |
| 3 | MAY 74008701 |
| 4 | MAY 8002P104-60 |
| 5 | MAY 4002P347-51 |
| 6 | COVER, MAIN WIRE (ELE) |
| 7 | BOTTOM, WIRE COVER |
| 8 | SCREW (8BX3/8-NI) |
| 9 | INSULATOR, POWER CORD |
| 10 | Cover, Wire (LWR) |
| 11 | MAY 74008340 |
| 12 | WP7103P027-60 Whirlpool Nut |
| 13 | WPW10245259 Whirlpool Terminal Block |
| 14 | PLATE, CONDUIT REINFORCEMENT |
| 15 | 74008703 Whirlpool Door Switch |
| 16 | MAY 74008706 |
| 17 | MAY 74008704 |
| 18 | 74008707 Whirlpool Oven Bumper |
| 19 | 74008835 Whirlpool Clip Retainer |
| 20 | W11665456 Whirlpool Range Level Foot |
| 21 | WP3801F656-51 Whirlpool Range Anti-Tip Bracket |
| 22 | WP7101P485-60 Whirlpool Anchor Tip |
| 23 | MAY 74008689 |
| 24 | SCREW |
| 25 | MAY 7406P493-60 |
| 26 | 12001656 Whirlpool Range Oven Temperature Sensor |
| 27 | MAY 74008691 |
| 28 | MAY 74011299 |
| 29 | SCREW (10-24X5/16-NI) |
| 30 | SCREW W/SHOULDER (No.8) |
| 31 | W11562931 Whirlpool Door Gasket |
| 32 | SPACER, SIDE PANEL |
| 33 | WP74010551 Whirlpool Receiver |
| 34 | WP74011278 Whirlpool Light |
| 35 | BRACKET, OVEN SUPPORT |
| 36 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 37 | SLEEVE, ROD TUBE |
| 38 | RANGE ONLY 40W 120V APPL BULB |
| 39 | WP74003976 Whirlpool Screw |
| 40 | SUPPORT, OVEN BOTTOM (REAR) |
| 41 | WPW10276482 Whirlpool Bake Element |
| 42 | SUPPORT, OVEN BOTTOM (FRONT) |
| 43 | WPW10211368 Whirlpool Oven Bottom |
| 44 | Fan Assy, Convect |
| 46 | COVER, CONVECT |
| 47 | MAY 7002P494-60 |
| 48 | 74008715 Whirlpool Thermal Limiter Switch |
| 49 | MAY 7101P336-60 |
