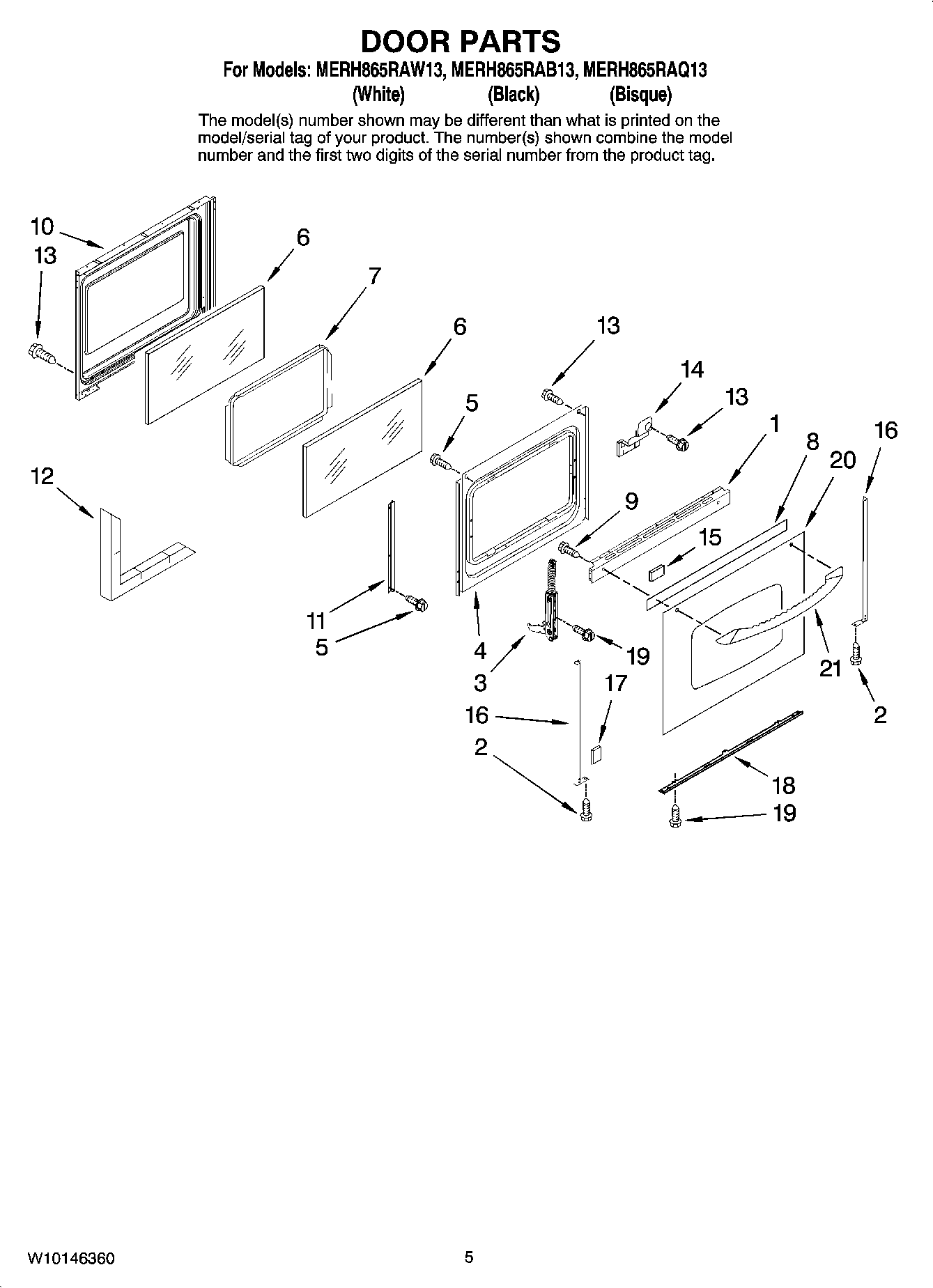

MERH865RAQ13 04 – DOOR PARTSadmin2025-04-26T08:54:58+00:00MERH865RAQ13 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, TOP (BSQ) |
| 1 | Trim, Door Top (White) |
| 1 | Trim, Door Top (Black) |
| 2 | WP74009541 Whirlpool Screw Assembly |
| 2 | WP98008544 Whirlpool Screw Assembly |
| 2 | WP98008545 Whirlpool Screw |
| 3 | 74010546 Whirlpool Range Oven Door Hinge |
| 4 | Retainer, Side |
| 5 | SCREW |
| 6 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 7 | FRAME, GLASS |
| 8 | TAPE, FOIL (3`` WIDE) |
| 9 | WP74006515 Whirlpool Washer Screw |
| 10 | MAY 74008926 |
| 11 | 3801F886-51 Whirlpool Mounting Bracket |
| 12 | INSULATION, OVEN DOOR |
| 13 | WPY706189 Whirlpool Stove Screw |
| 14 | BRACKET, DOOR HANDLE (RT) |
| 14 | BRACKET, DOOR HANDLE (LT) |
| 15 | WP74004224 Whirlpool Tape |
| 16 | TRIM, SIDE (BSQ) |
| 16 | MAY 74010561 |
| 16 | MAY 74010560 |
| 17 | WP74009014 Whirlpool Double Tape |
| 17 | WP74009025 Whirlpool Double Sided Tape |
| 18 | WP3608F092-71 Whirlpool Bottom Trim |
| 18 | MAY 74008745 |
| 18 | TRIM, BOTTOM (BSQ) |
| 19 | SCREW (10-24X5/16-NI) |
| 20 | Glass, Door (Bisque) |
| 20 | Glass, Door (Black (Order Item 15 When Replacing Door Glass)) |
| 20 | Glass, Door (White) |
| 21 | WP74011675 Whirlpool Door Handle |
| 21 | HANDLE, DOOR (BSQ) |
| 21 | 74011777 Whirlpool Range Oven Door Handle |
