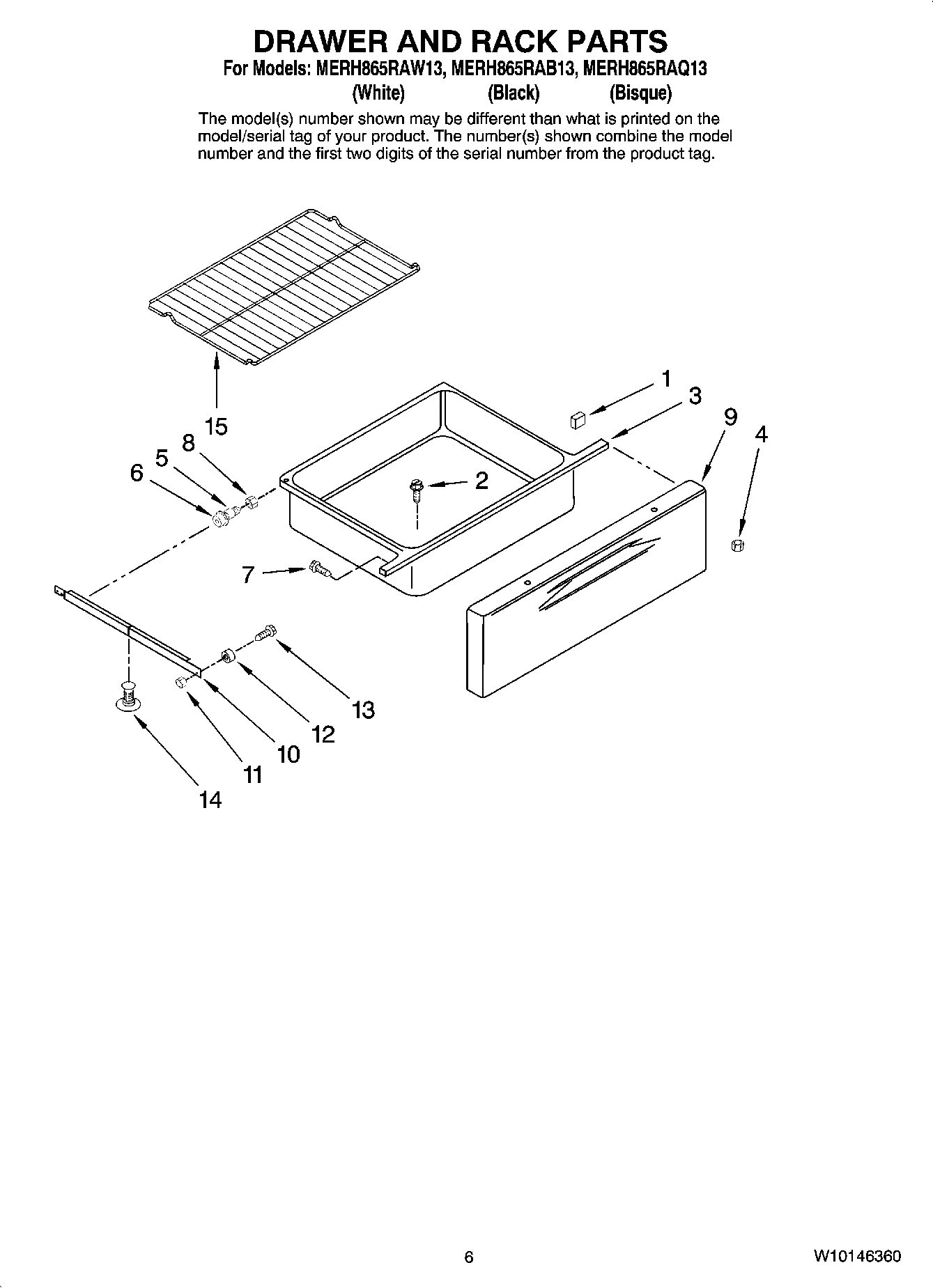

MERH865RAQ13 05 – DRAWER AND RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	MAY W10129624
NI	SCREW, GROUND (GRN)
NI	WIRE, 25â€™ ROLL (RED 14 GA.)
NI	Harness, Wire (Cooktop Left)
NI	REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
NI	REFINISHING MATERIAL (GREASE)
NI	Wire, Blue 14 Ga. 150 c
NI	Wire, Brown 14 Ga. 150 c
NI	Wire, Green 14 Ga. 150 c
NI	Wire, Orange 14 Ga. 150 c
NI	Wire, Yellow 14 Ga. 150 c
NI	Wire, Black 12 Ga. 150 c
NI	Wire, Brown 14 Ga. 200 c
NI	Wire, Red 14 Ga. 200 c
NI	WIRE
NI	MAY W10129432
NI	Harness, Wire (Cooktop Right)
NI	CLIP, WIRE LOCK
NI	MAY 4392901
NI	PAINT, BULK (1 qt.) (Biscuit)
NI	PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE))
NI	INSULATION (2-1/2" X 22" X 120")
NI	ACCESSORY PARTS, ALUMINUM FOIL
NI	REFINISHING MATERIAL, OVEN LINER TOUCH UP PAINT
NI	INSULATION (1-1/2" X 24" X 120")
NI	PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
NI	ACCESSORY PARTS, GLASS CLEANER
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
NI	MAY 4392899
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
1	TAPE
3	DRAWER, STORAGE
4	WPW10131078 Whirlpool Nut Assembly
5	WP74005546 Whirlpool RU Spacer
7	SCREW
8	WP488130 Whirlpool Air Conditioner Nut
9	Panel, Drawer (White)
9	Panel, Drawer (Black)
9	MAY 74008756
10	RUNNER, SERVICE DRAWER
11	74005230 Whirlpool Oven Lock Nut (8-32)
12	WP74004078 Whirlpool Door Roller
13	SHAFT, STORAGE DRAWER ROLLER
14	MAY 74008688
15	WP74008763 Whirlpool Oven Rack
