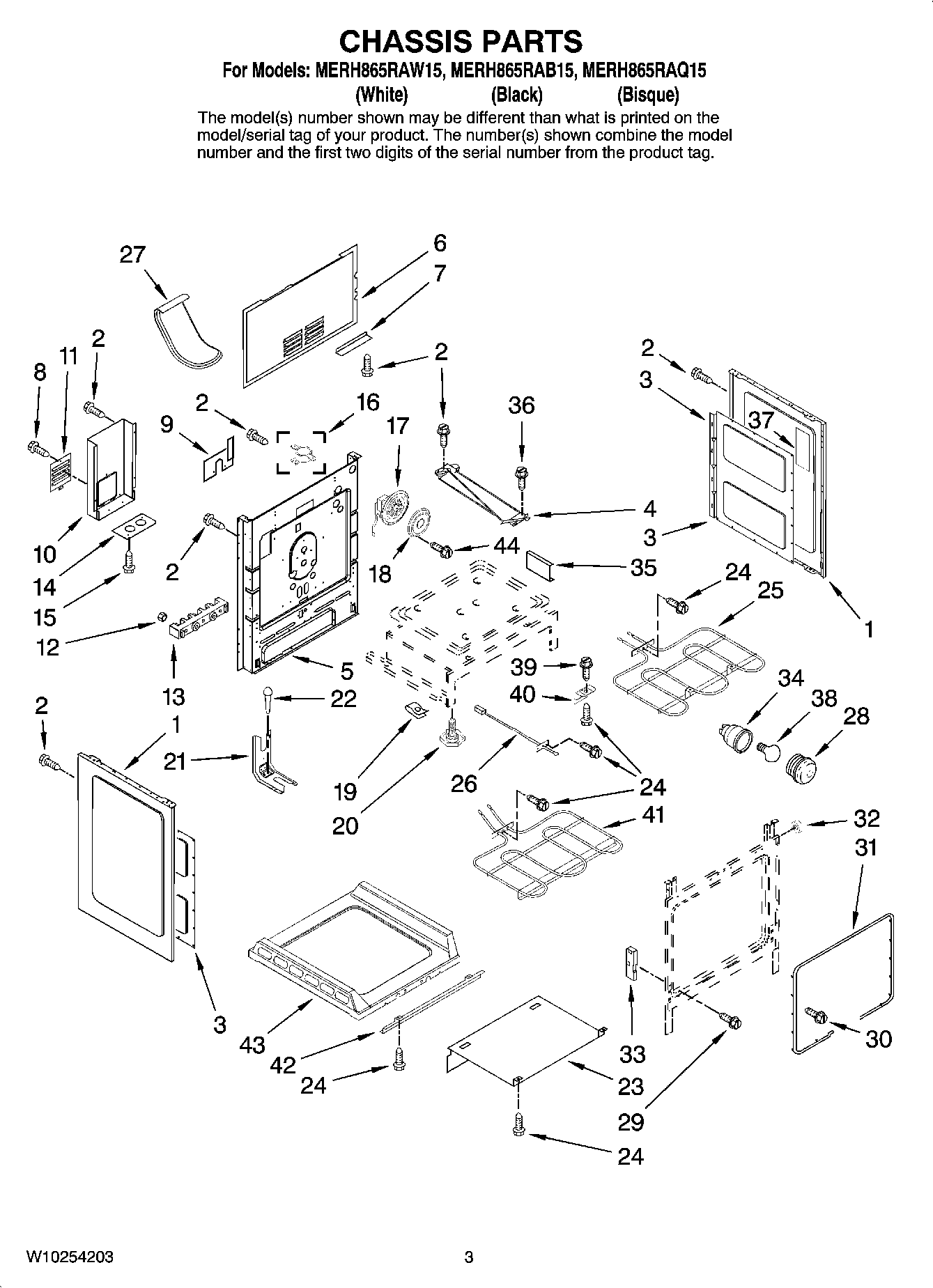

MERH865RAQ15 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAPPER
NI	MAY 7002P492-60
1	MAY 74008709
1	PANEL, SIDE (BSQ)
1	MAY 74008710
3	MAY 3804F316-51
4	MAY 8002P104-60
5	MAY 4002F347-51
6	COVER, MAIN WIRE (ELE)
7	BOTTOM, WIRE COVER
9	INSULATOR, POWER CORD
10	MAY 74008760
11	MAY 4005P704-51
12	WP7103P027-60 Whirlpool Nut
13	WPW10245259 Whirlpool Terminal Block
14	PLATE, CONDUIT REINFORCEMENT
15	MAY 7101P336-60
16	74008715 Whirlpool Thermal Limiter Switch
17	Fan Assy, Convect
18	COVER, CONVECT
19	74008835 Whirlpool Clip Retainer
20	W11665456 Whirlpool Range Level Foot
21	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
22	WP7101P485-60 Whirlpool Anchor Tip
23	MAY 74008689
24	SCREW, 8 X 1/2
25	MAY 74011910
26	12001656 Whirlpool Range Oven Temperature Sensor
27	MAY 74008691
28	MAY 74011299
29	SCREW (10-24X5/16-NI)
30	SCREW W/SHOULDER (No.8)
31	MAY W10162385
32	SPACER, SIDE PANEL
33	WP74010551 Whirlpool Receiver
34	WP74011278 Whirlpool Light
35	BRACKET, OVEN SUPPORT
36	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
37	MAY 7002P494-60
38	RANGE ONLY 40W 120V APPL BULB
39	WP74003976 Whirlpool Screw
40	SUPPORT, OVEN BOTTOM (REAR)
41	WPW10276482 Whirlpool Bake Element
42	SUPPORT, OVEN BOTTOM (FRONT)
43	WPW10211368 Whirlpool Oven Bottom
