MERH865RAQ15 05 – DRAWER AND RACK PARTS

MERH865RAQ15 05 – DRAWER AND RACK PARTS

Written by

in

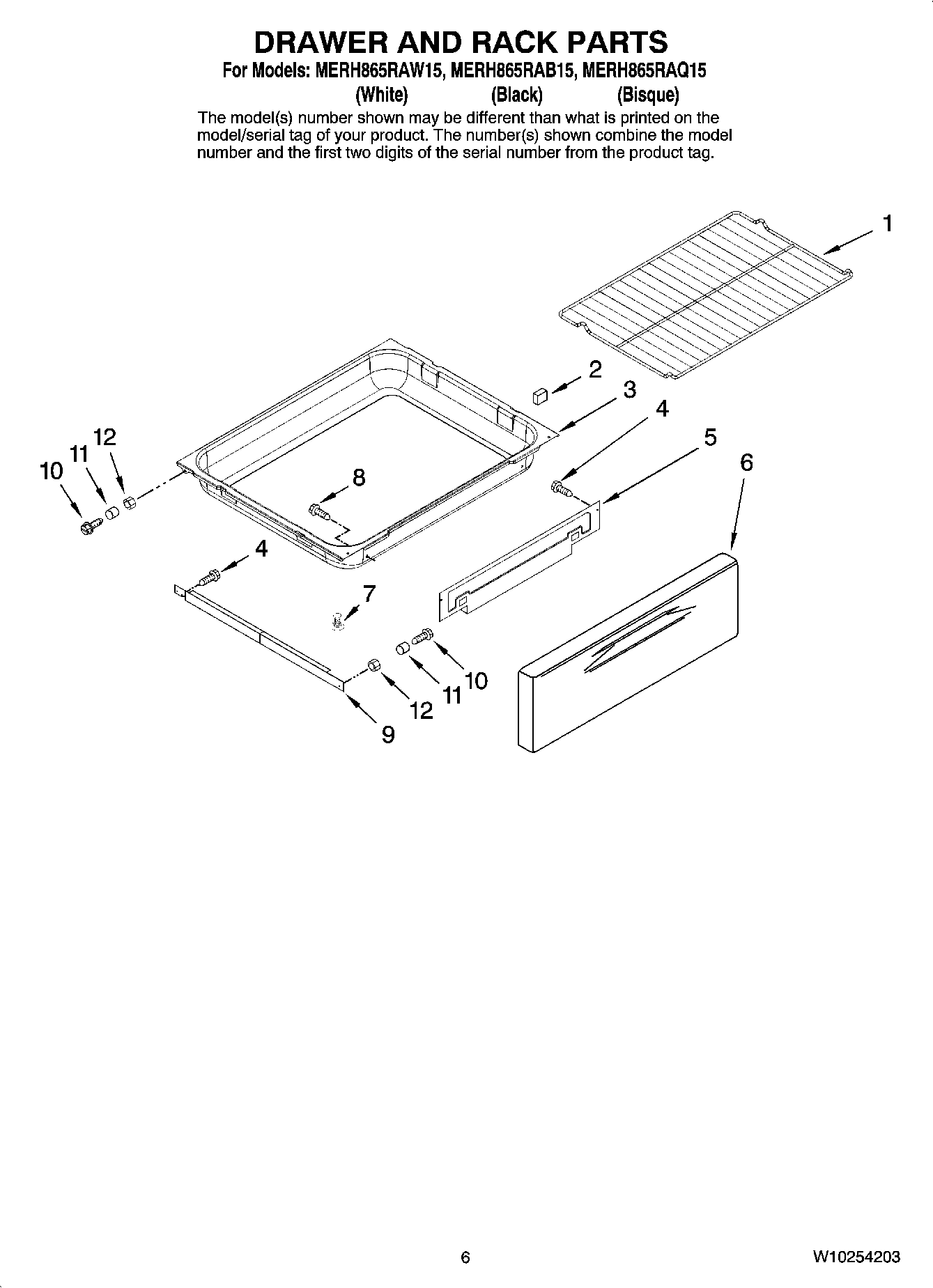

MERH865RAQ15 05 – DRAWER AND RACK PARTS

Products

Position	Product
1	WP74008763 Whirlpool Oven Rack
2	WP74005546 Whirlpool RU Spacer
3	MAY 3405F037-80
4	SCREW, 8 X 1/2
5	PLATE, PANEL MTG.
6	MAY W10163040
6	MAY W10163038
6	PANEL, DRAWER (BSQ)
7	MAY 74008688
8	SCREW
9	RUNNER, SERVICE DRAWER
10	SHAFT, STORAGE DRAWER ROLLER
11	WP74004078 Whirlpool Door Roller
12	74005230 Whirlpool Oven Lock Nut (8-32)
