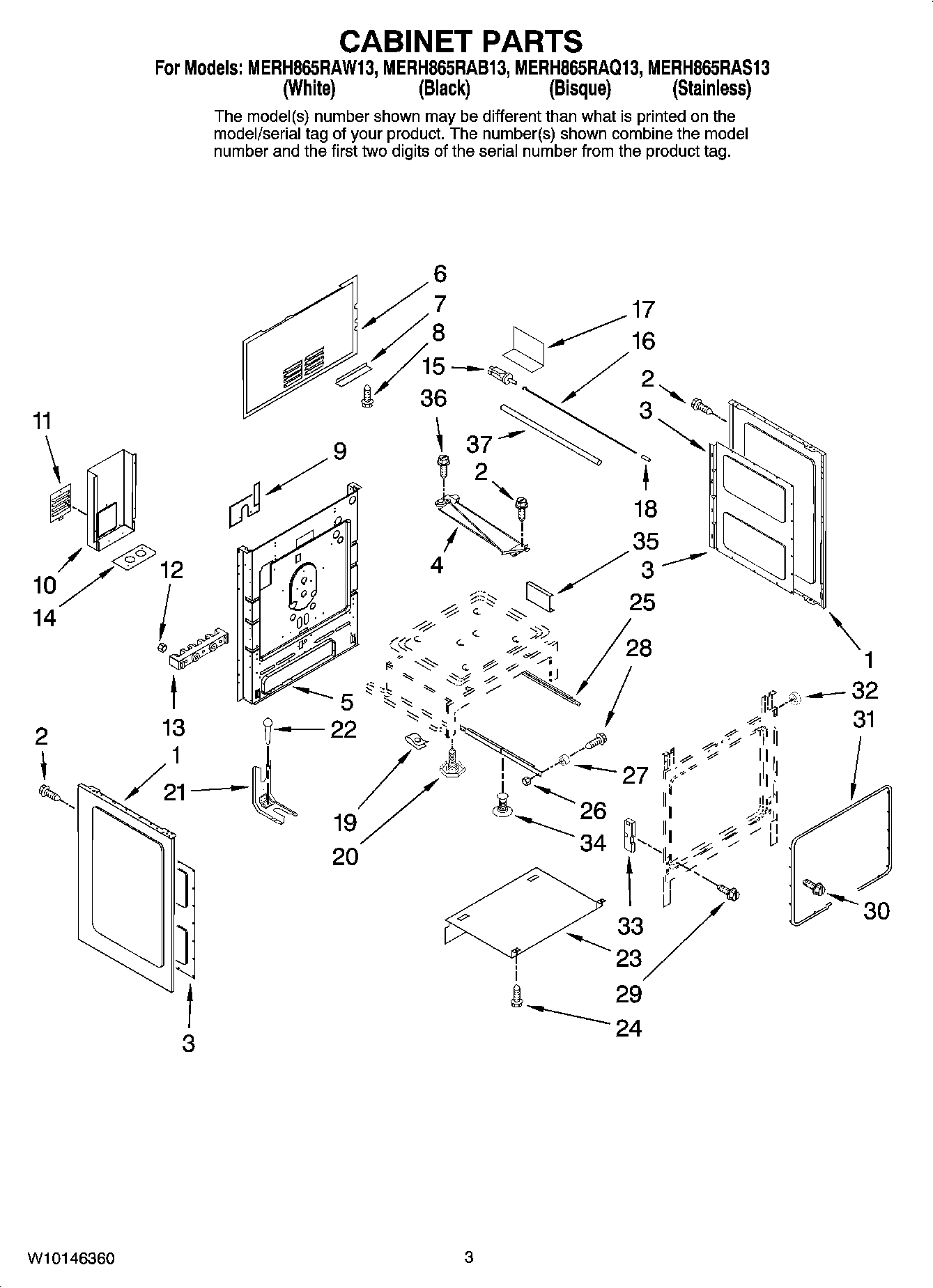

MERH865RAS13 02 – CABINET PARTS

Products

PositionProduct
1MAY 74008710
1MAY 74008709
1PANEL, SIDE (BSQ)
3MAY 74008701
4MAY 8002P104-60
4Latch Assembly
5MAY 74008699
6COVER, MAIN WIRE (ELE)
7BOTTOM, WIRE COVER
9INSULATOR, POWER CORD
10MAY 74008760
11MAY 740083400
12WP7103P027-60 Whirlpool Nut
13WPW10245259 Whirlpool Terminal Block
14PLATE, CONDUIT REINFORCEMENT
1574008703 Whirlpool Door Switch
16MAY 74008706
17MAY 74008704
1874008707 Whirlpool Oven Bumper
1974008835 Whirlpool Clip Retainer
20W11665456 Whirlpool Range Level Foot
21WP3801F656-51 Whirlpool Range Anti-Tip Bracket
22WP7101P485-60 Whirlpool Anchor Tip
23MAY 74008689
24SCREW
25RUNNER, SERVICE DRAWER
2674005230 Whirlpool Oven Lock Nut (8-32)
27WP74004078 Whirlpool Door Roller
28SHAFT, STORAGE DRAWER ROLLER
29Screw (4)
30SCREW W/SHOULDER (No.8)
31W11562931 Whirlpool Door Gasket
32SPACER, SIDE PANEL
33WP74010551 Whirlpool Receiver
34MAY 74008688
35BRACKET, OVEN SUPPORT
3674003975 Whirlpool Screw P1 (8ABX3/8-BLK)
37SLEEVE, ROD TUBE
