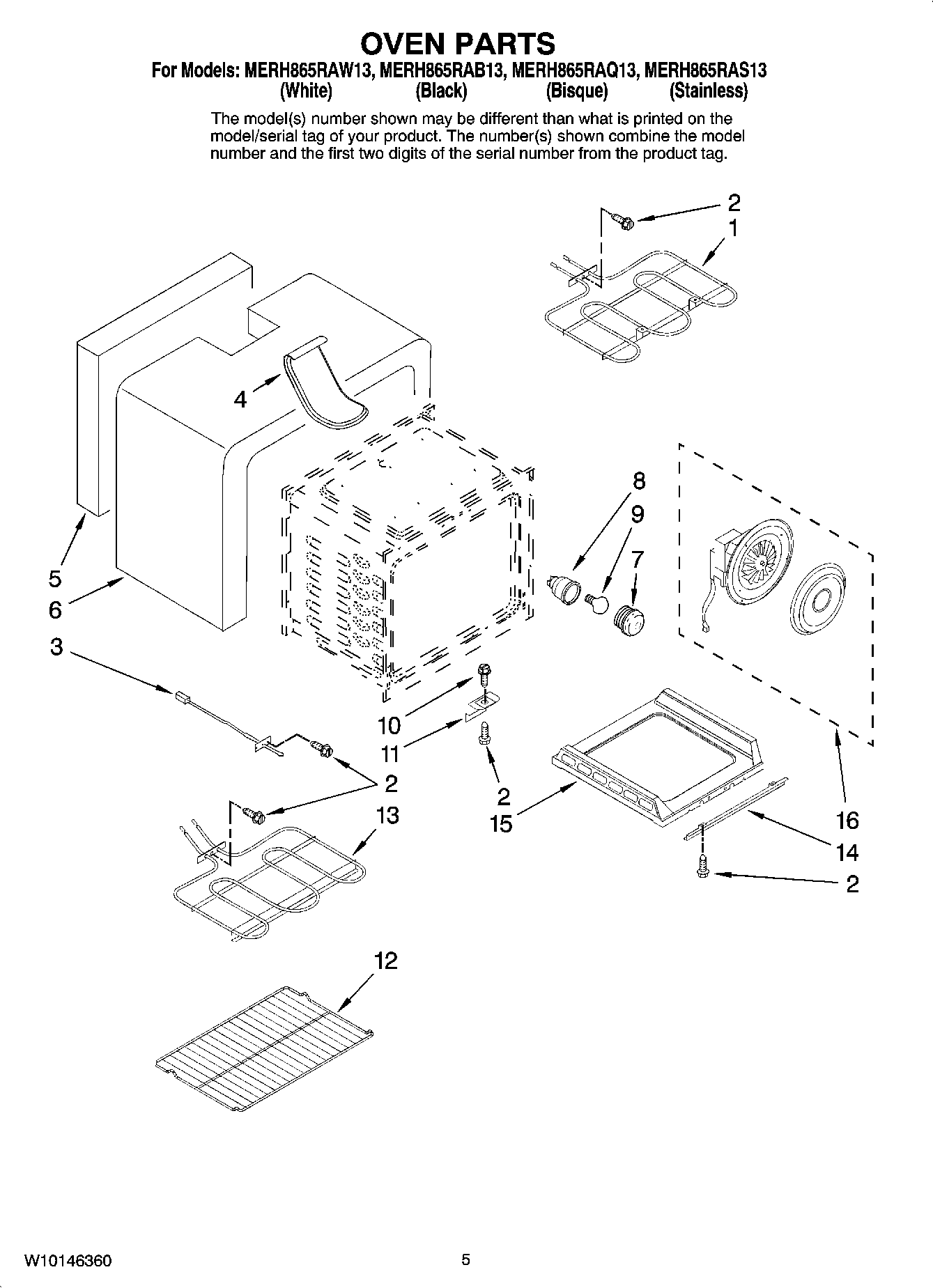

MERH865RAS13 03 – OVEN PARTS

Products

PositionProduct
1MAY 7406P493-60
2SCREW
312001656 Whirlpool Range Oven Temperature Sensor
4W11562931 Whirlpool Door Gasket
5MAY 74008698
6INSULATION, WRAPPER
7MAY 74011299
8WP74011278 Whirlpool Light
9RANGE ONLY 40W 120V APPL BULB
10WP74003976 Whirlpool Screw
11SUPPORT, OVEN BOTTOM (REAR)
12WP74008763 Whirlpool Oven Rack
13MAY W10144689
14SUPPORT, OVEN BOTTOM (FRONT)
15WPW10211368 Whirlpool Oven Bottom
16Fan Assy, Convect
16MAY W10129432
16Harness, Wire (Cooktop Right)
16MAY W10129624
